Console Rear Trim Plate Replacement

REMOVAL PROCEDURE



1. Remove the storage bin.

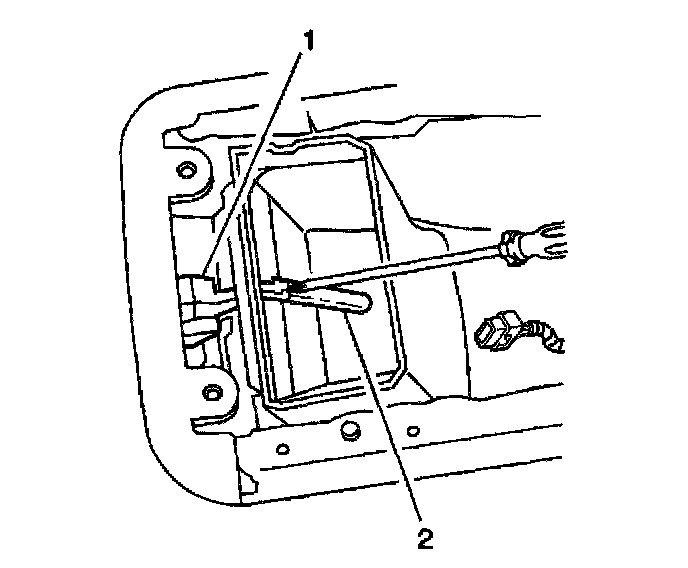

2. Disconnect the console air control linkage (1, 2).

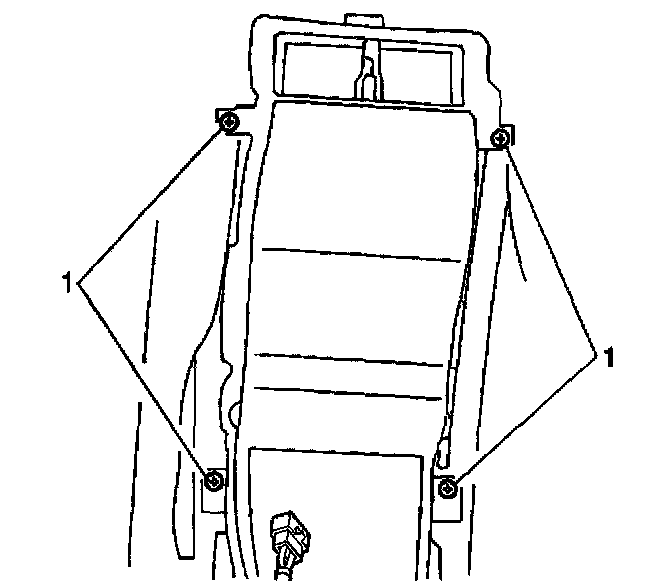

3. Remove the rear plate housing fasteners (1).
4. Remove the rear plate housing from the console.

INSTALLATION PROCEDURE



1. Align the rear plate housing to the console.

NOTE: Refer to Fastener Notice in Cautions and Notices.

2. Install the fasteners (1) to the rear plate housing.

Tighten
Tighten the fasteners to 1.6 N.m (14 lb in).




3. Connect the console air control linkage (1, 2).
4. Install the storage bin.
