Home >> Oldsmobile >> 1999 >> Regency V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Seats >> Lumbar Support

Lumbar Support

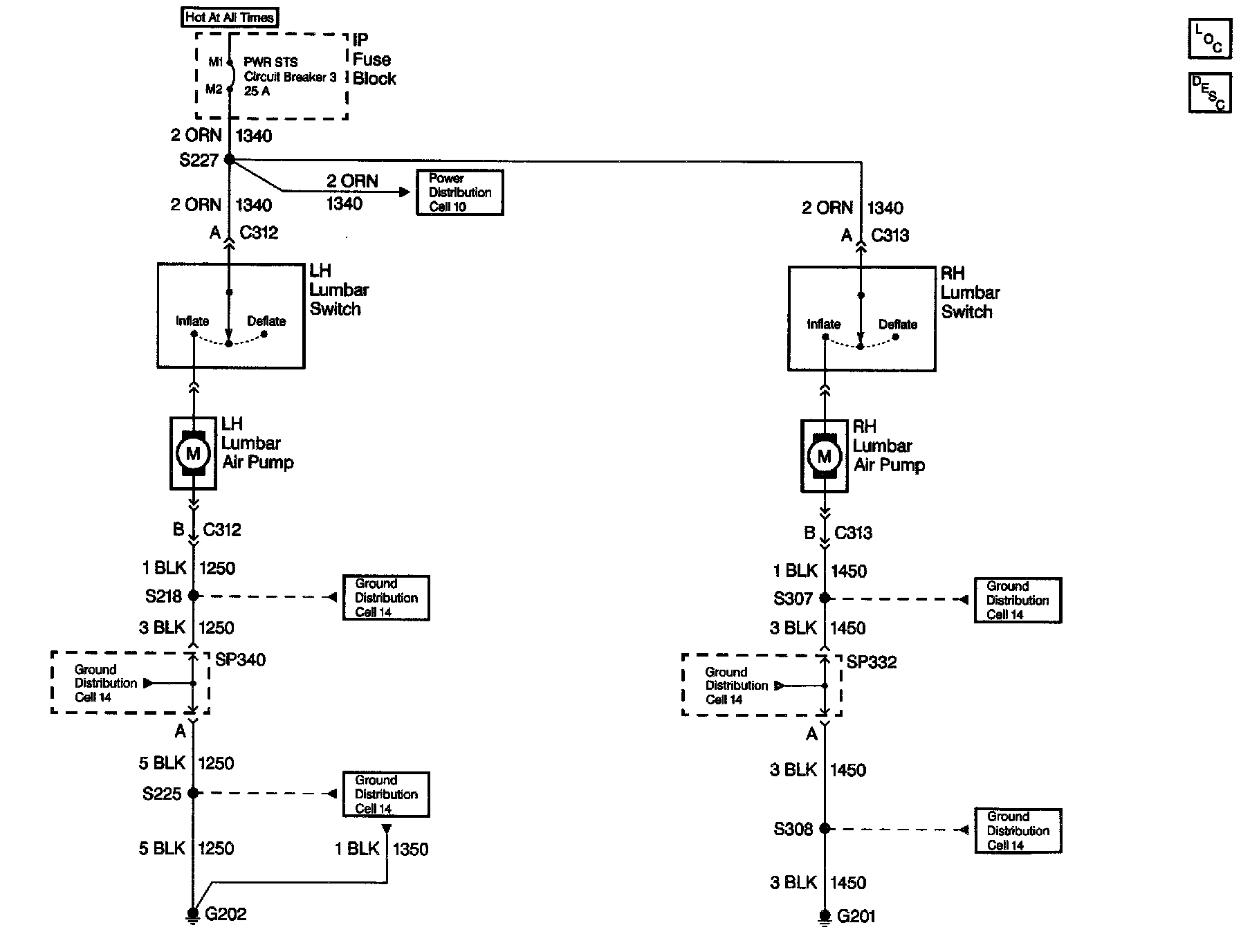

Lumbar Support Schematics (Oldsmobile W/AL2): Lumbar Support:
