Fluid Passages





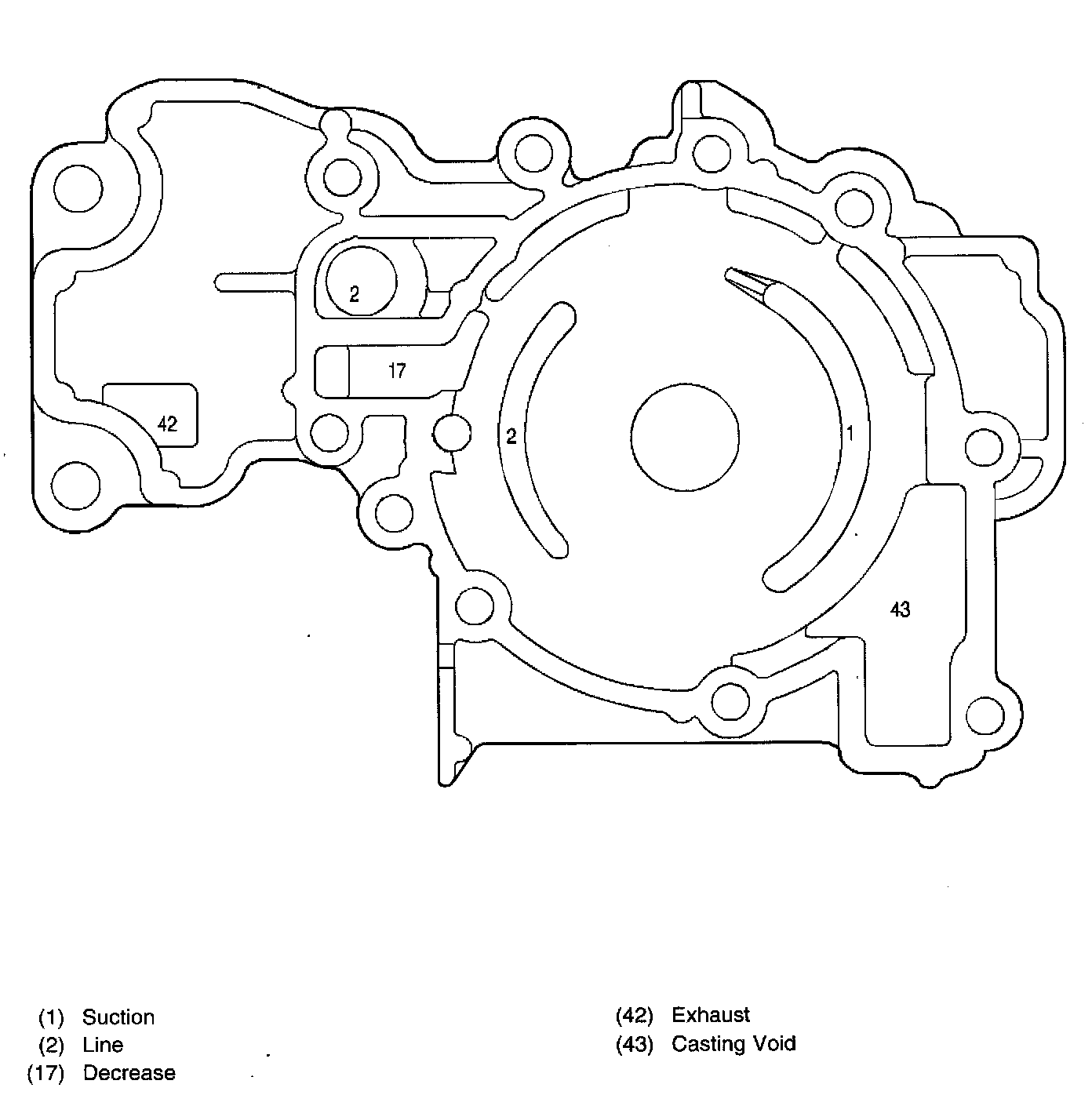

Oil Pump Body Fluid Passages (Oil Pump Body Side)






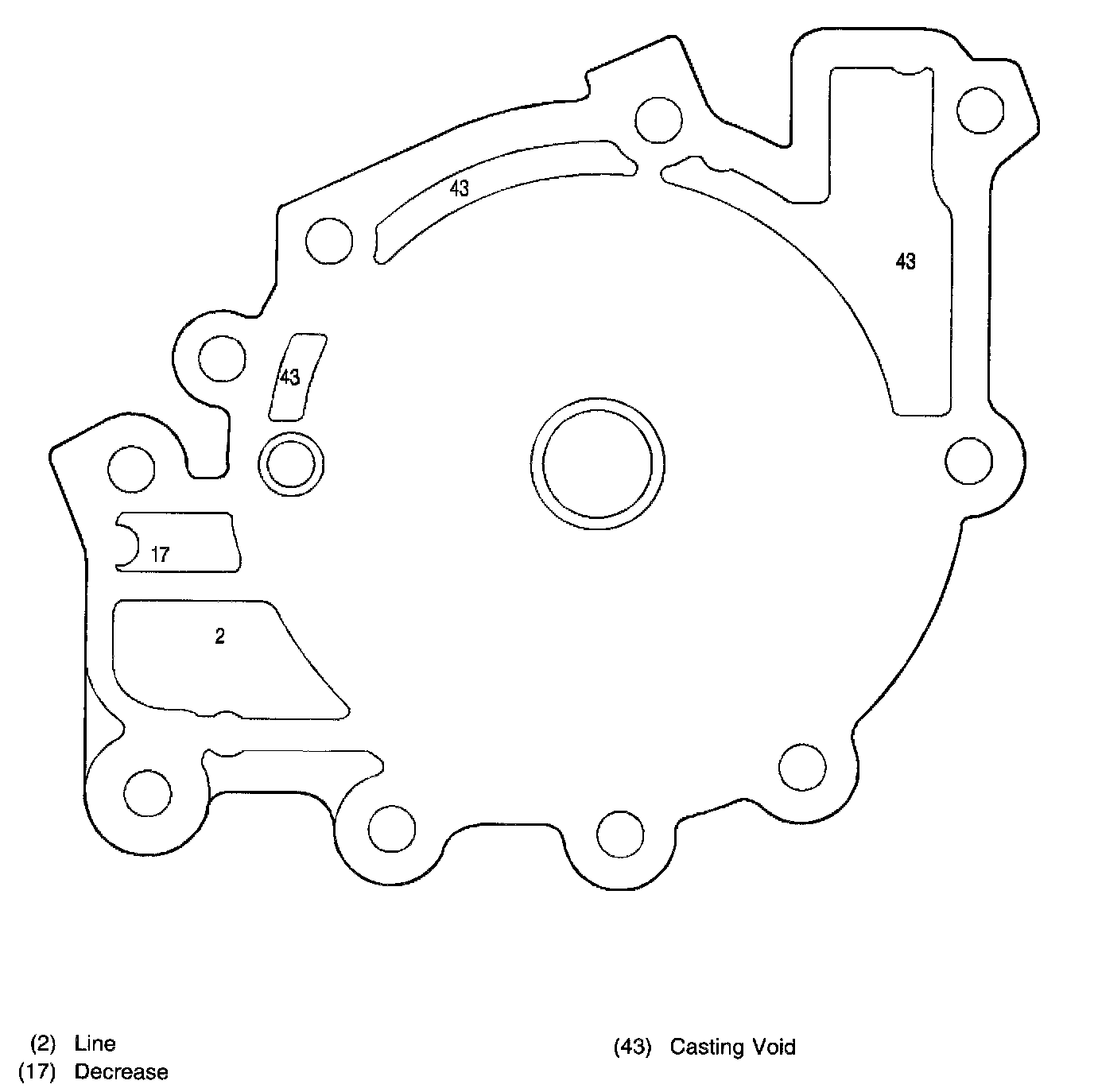

Oil Pump Body Fluid Passages (Oil Pump Cover Side)






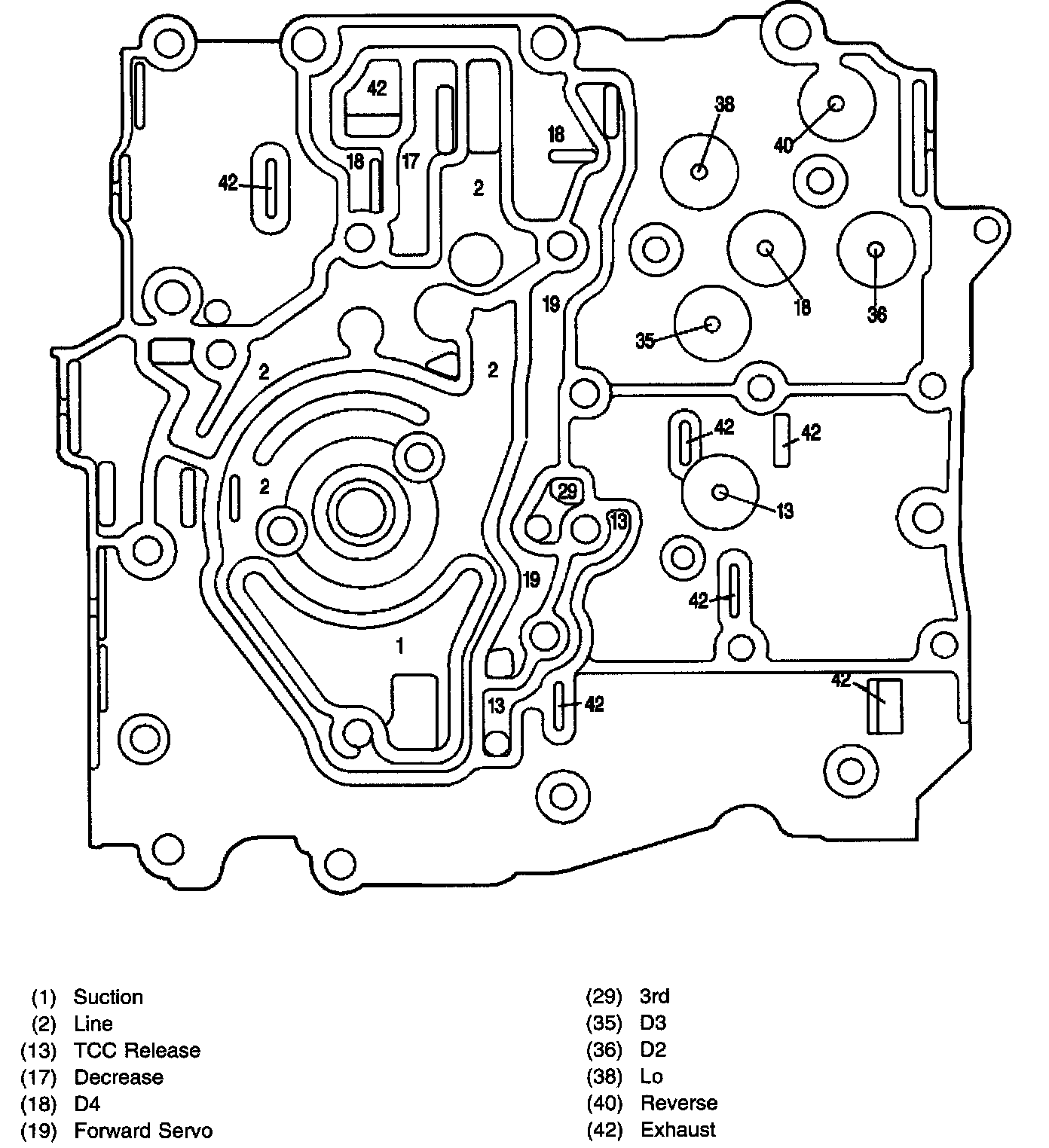

Oil Pump Body Fluid Passages (Control Valve Body Side)






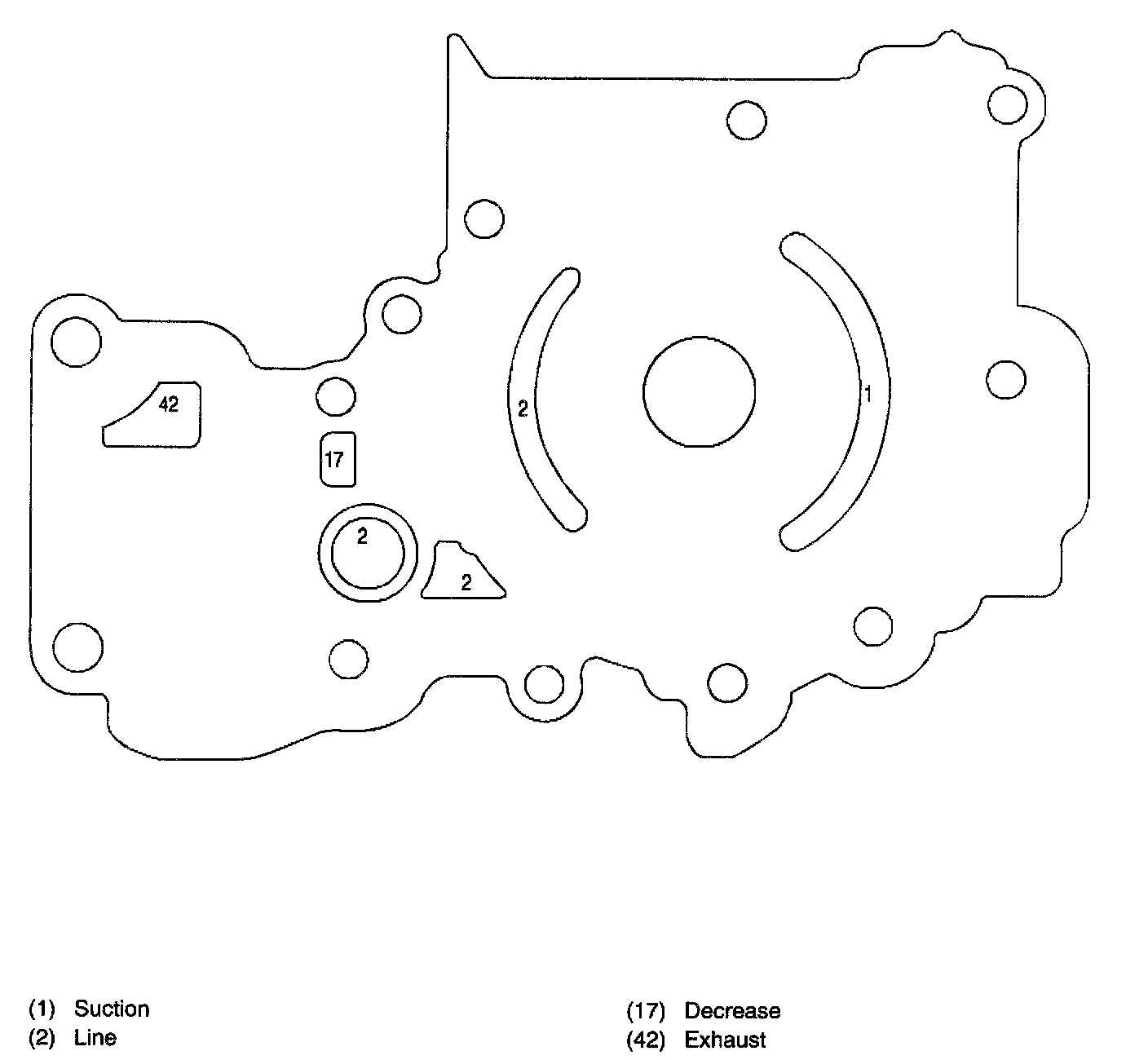

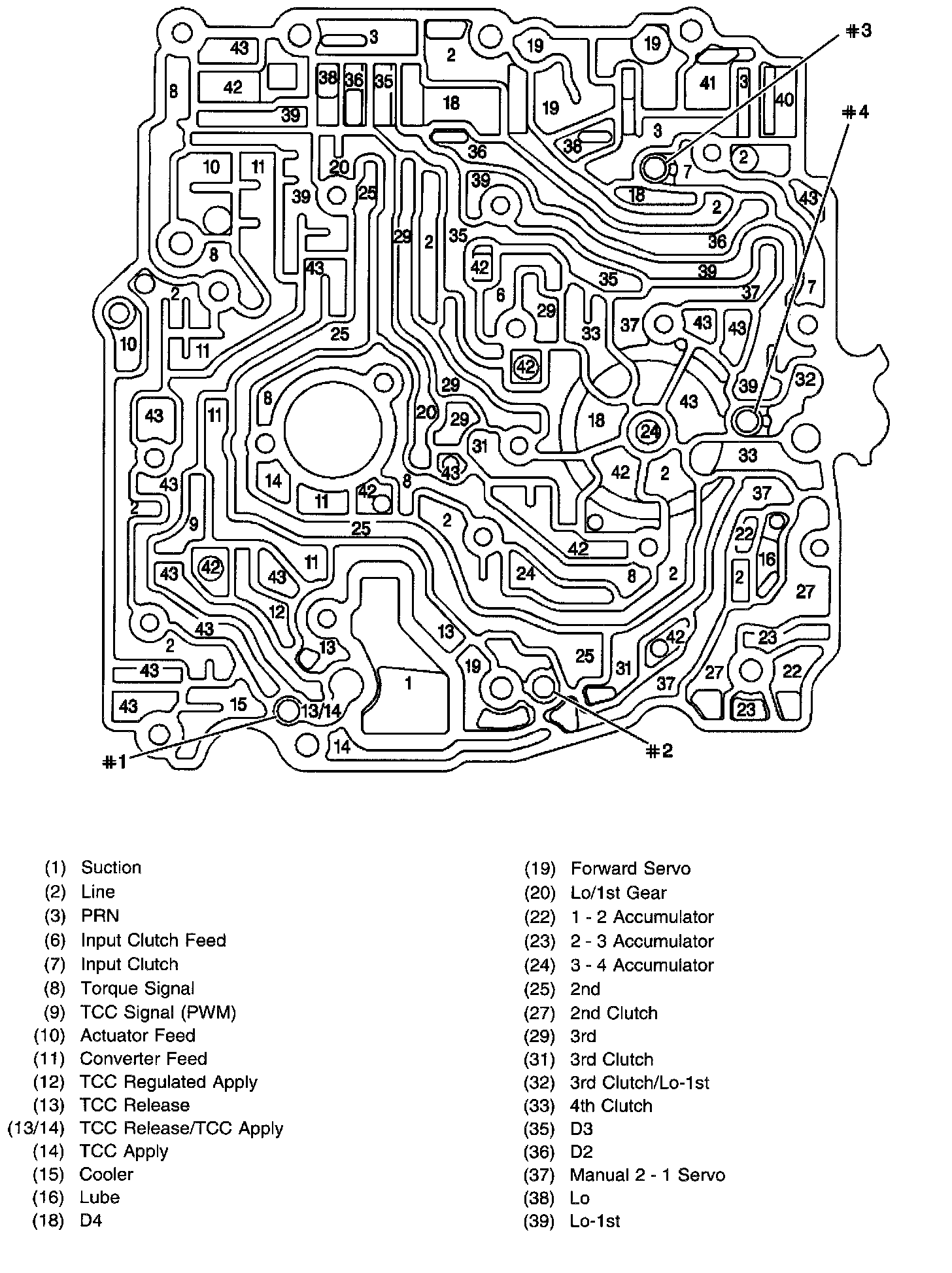

Control Valve Body Fluid Passages (Oil Pump Body Side)









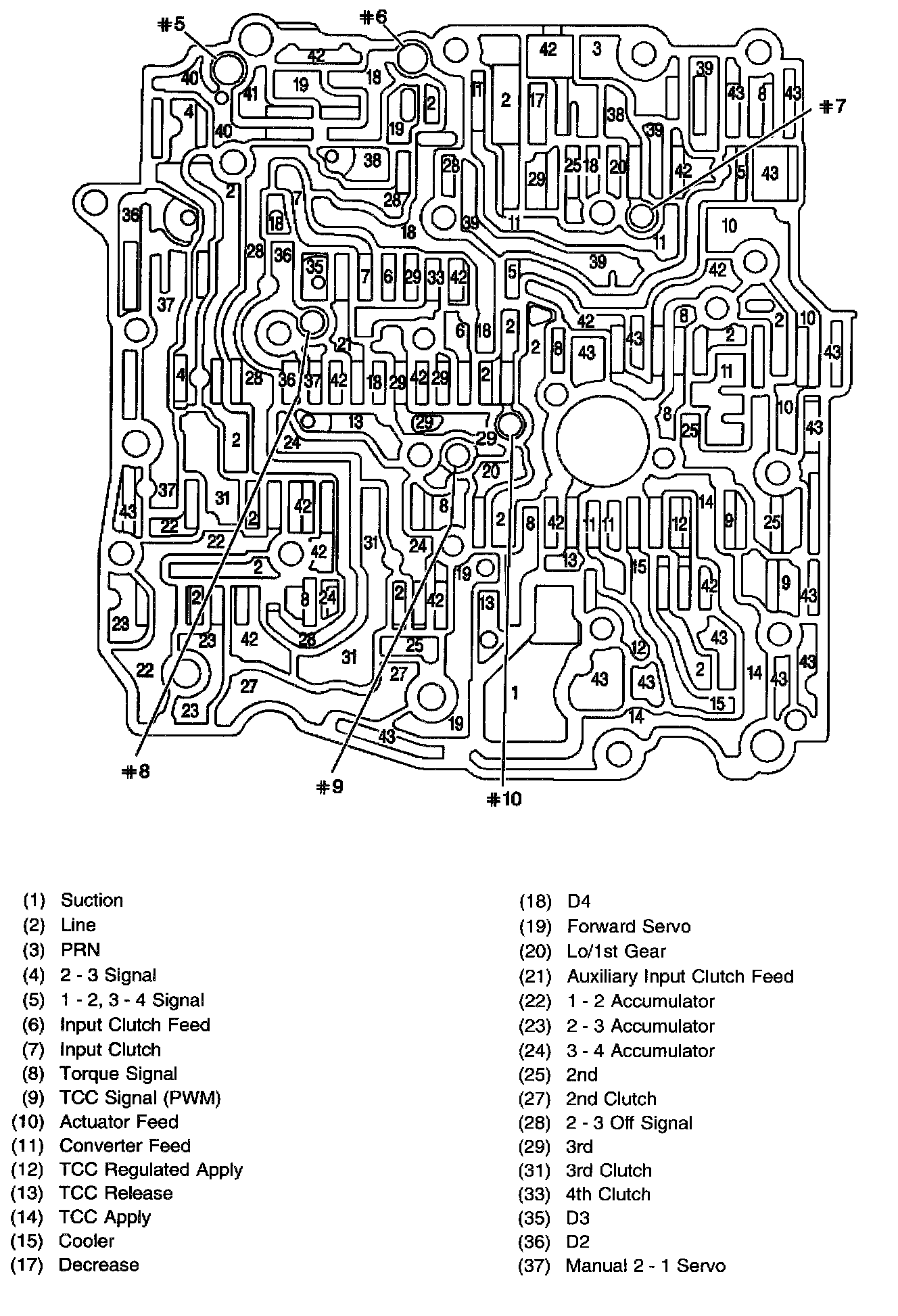

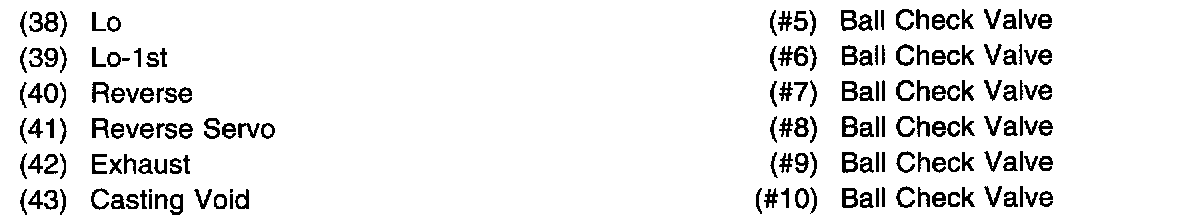

Control Valve Body Fluid Passages (Case Cover Side)









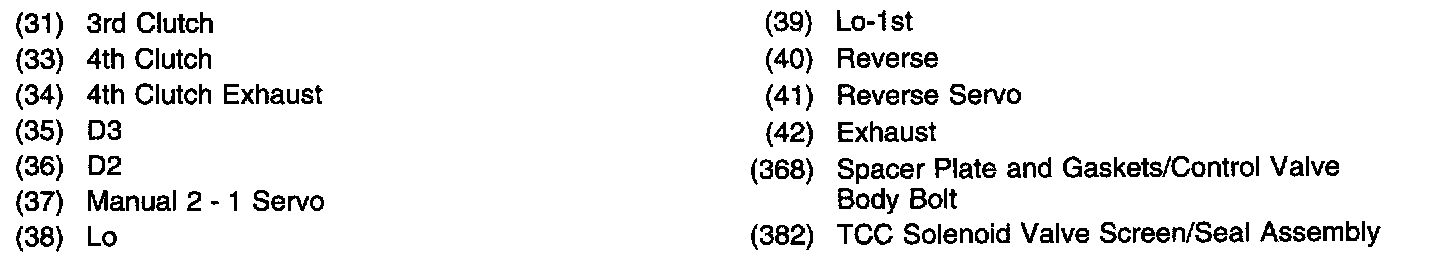

Control Valve Body To Spacer Plate Gasket Fluid Passages

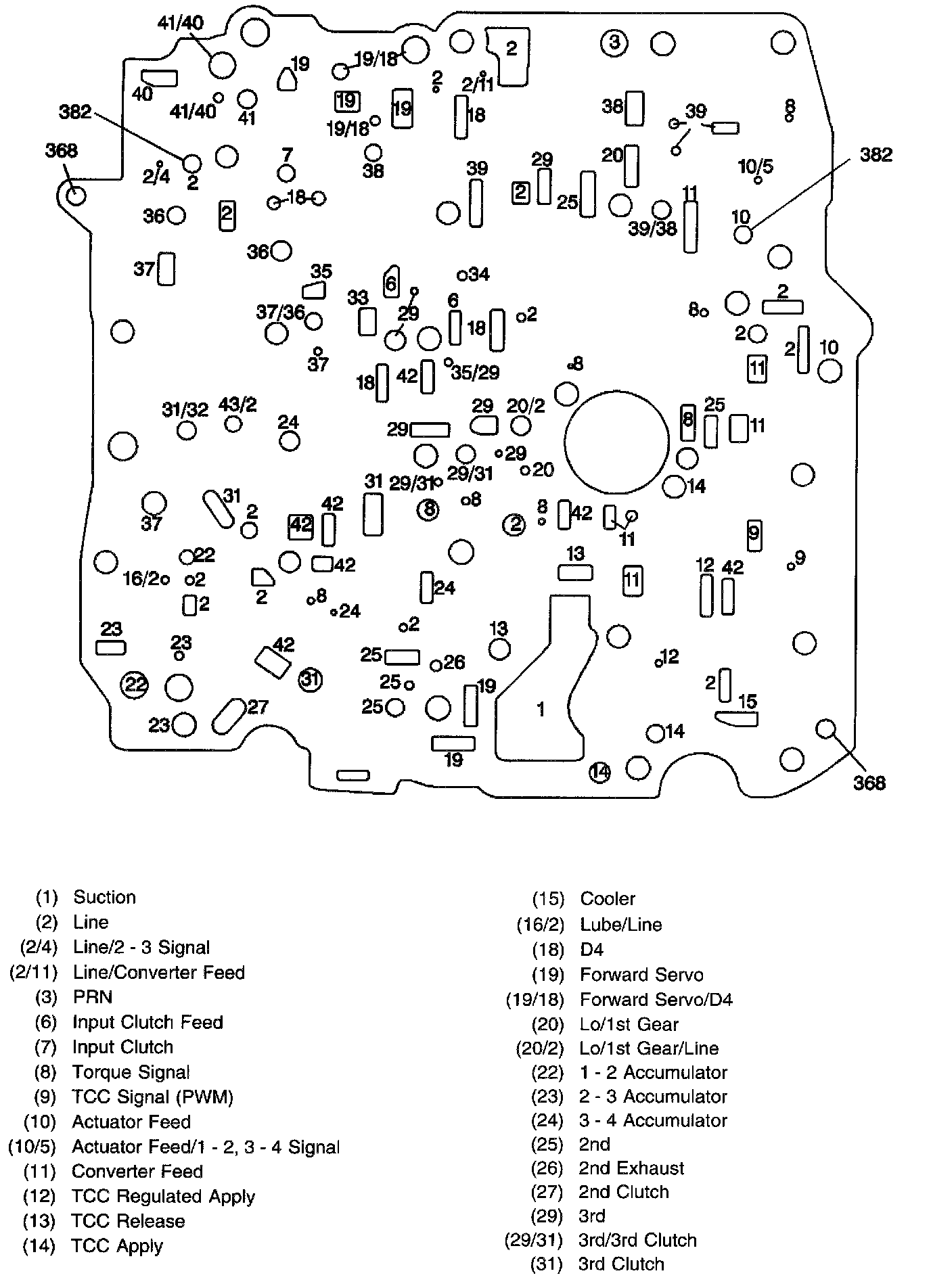

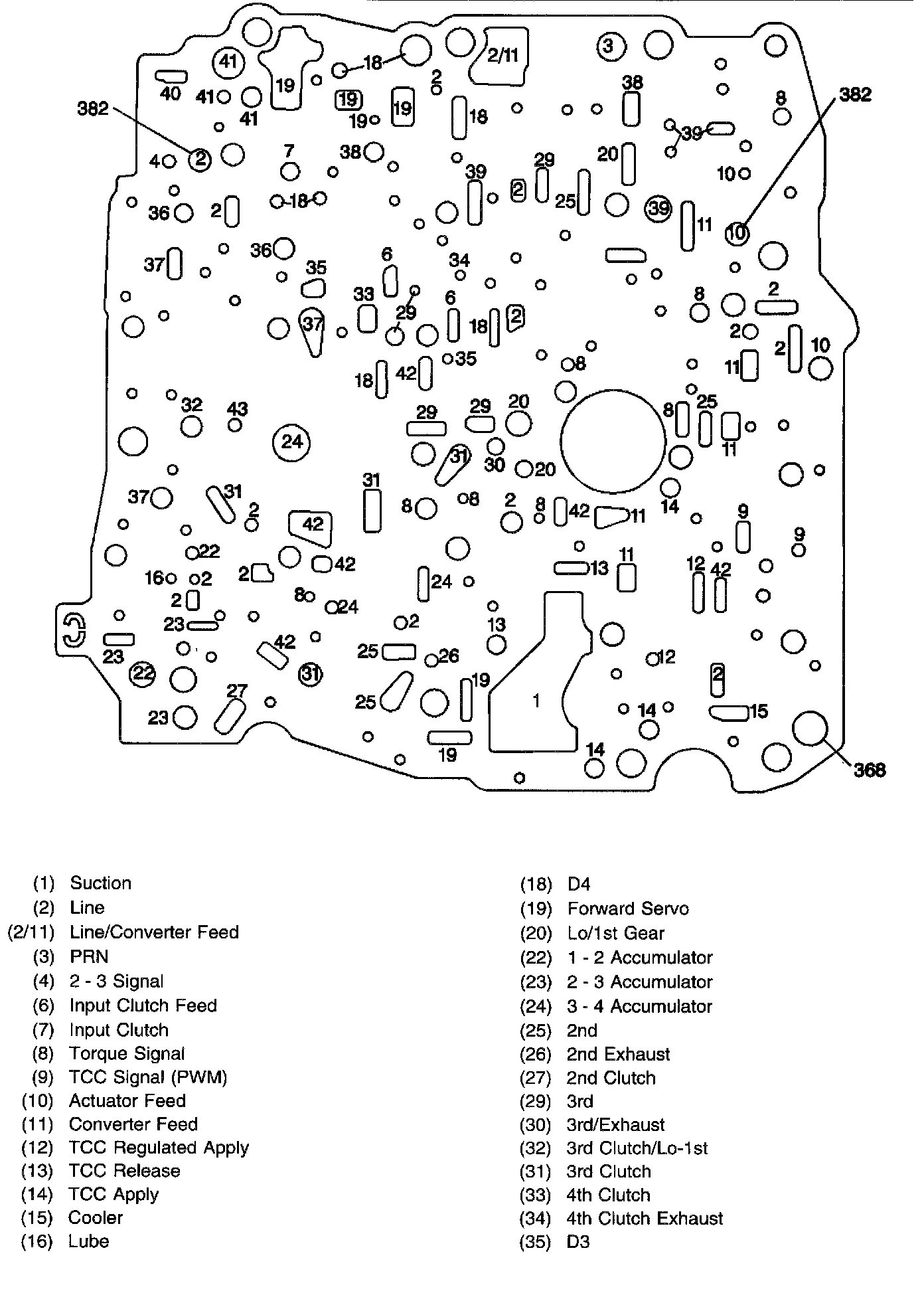

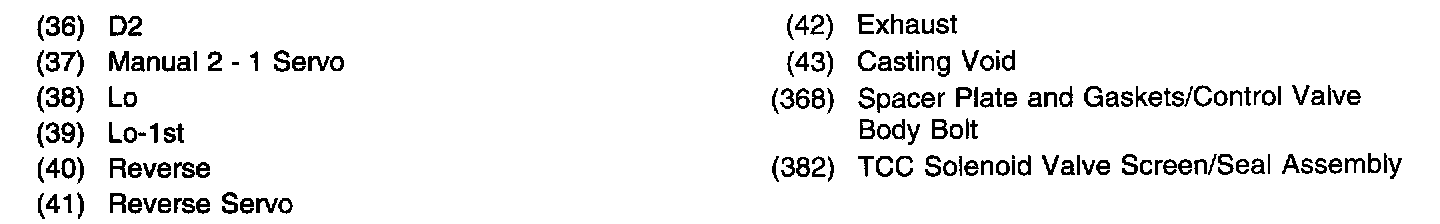

Spacer Plate Fluid Passages









Spacer Plate to Case Cover Gasket Fluid Passages









Case Cover Fluid Passages (Control Valve Body Side)






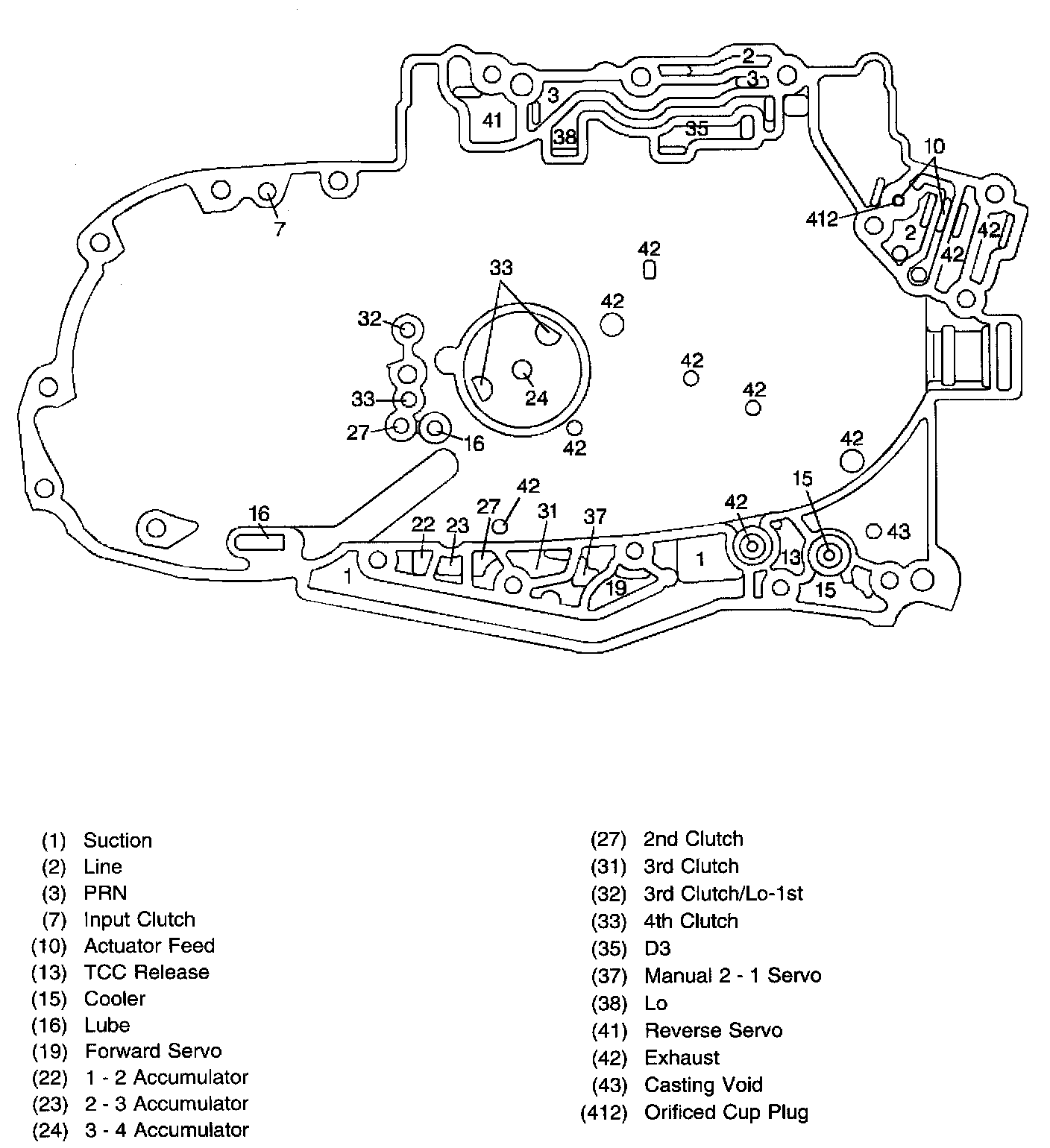

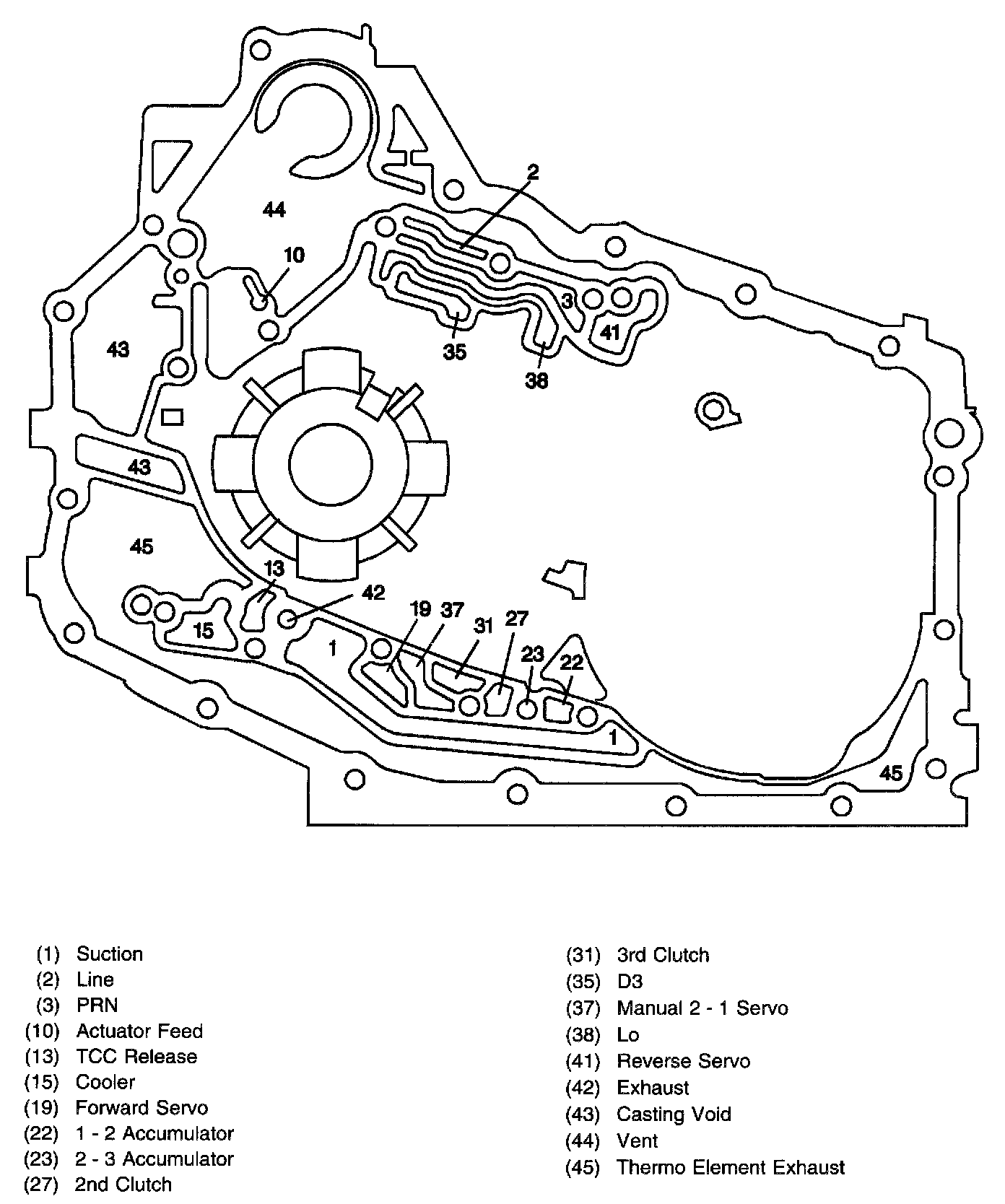

Case Cover Fluid Passages (Case Side)

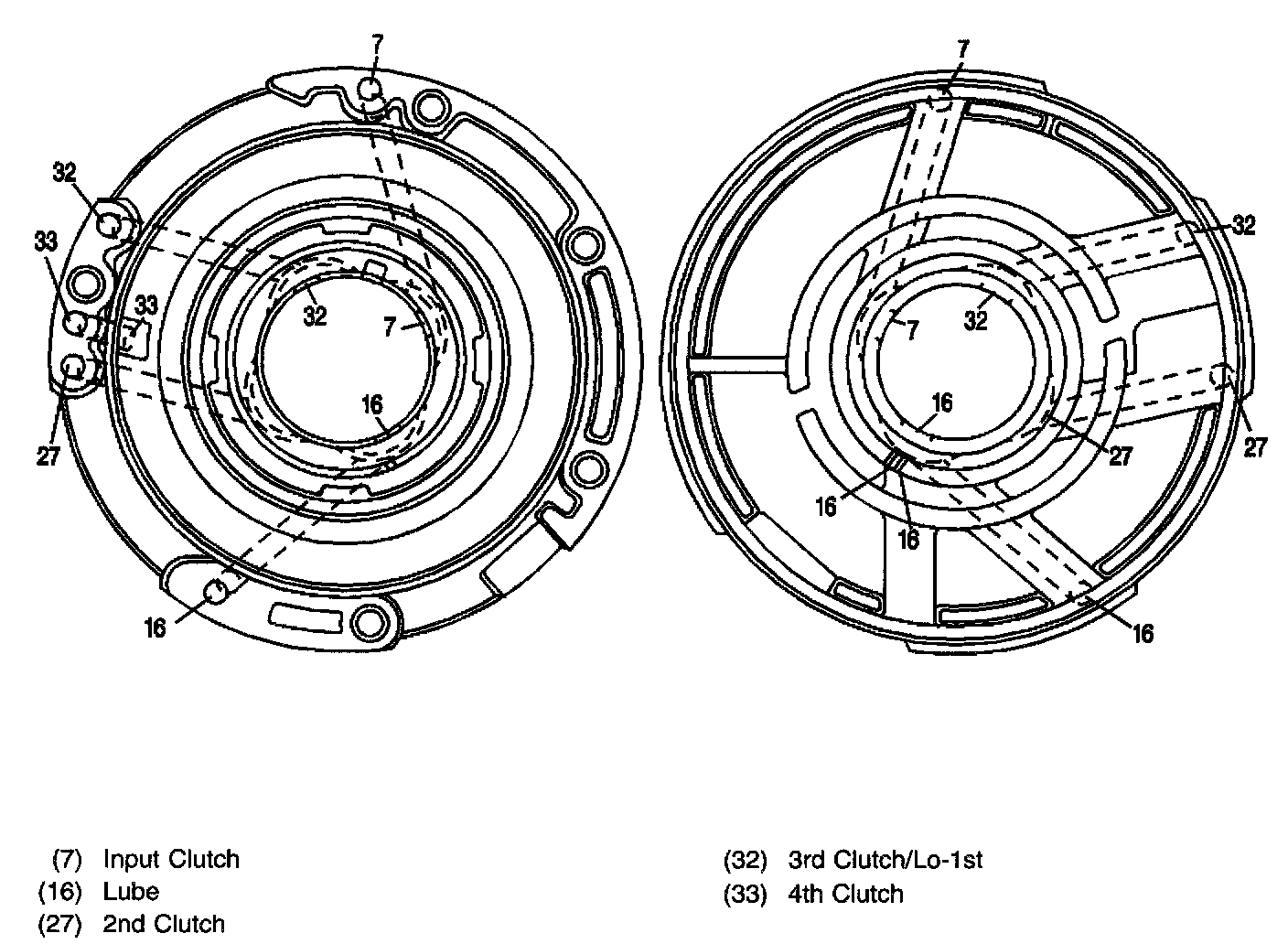

Driven Sprocket Support Fluid Passages






Oil Pump Drive Shaft and Drive Sprocket Support Fluid Passages






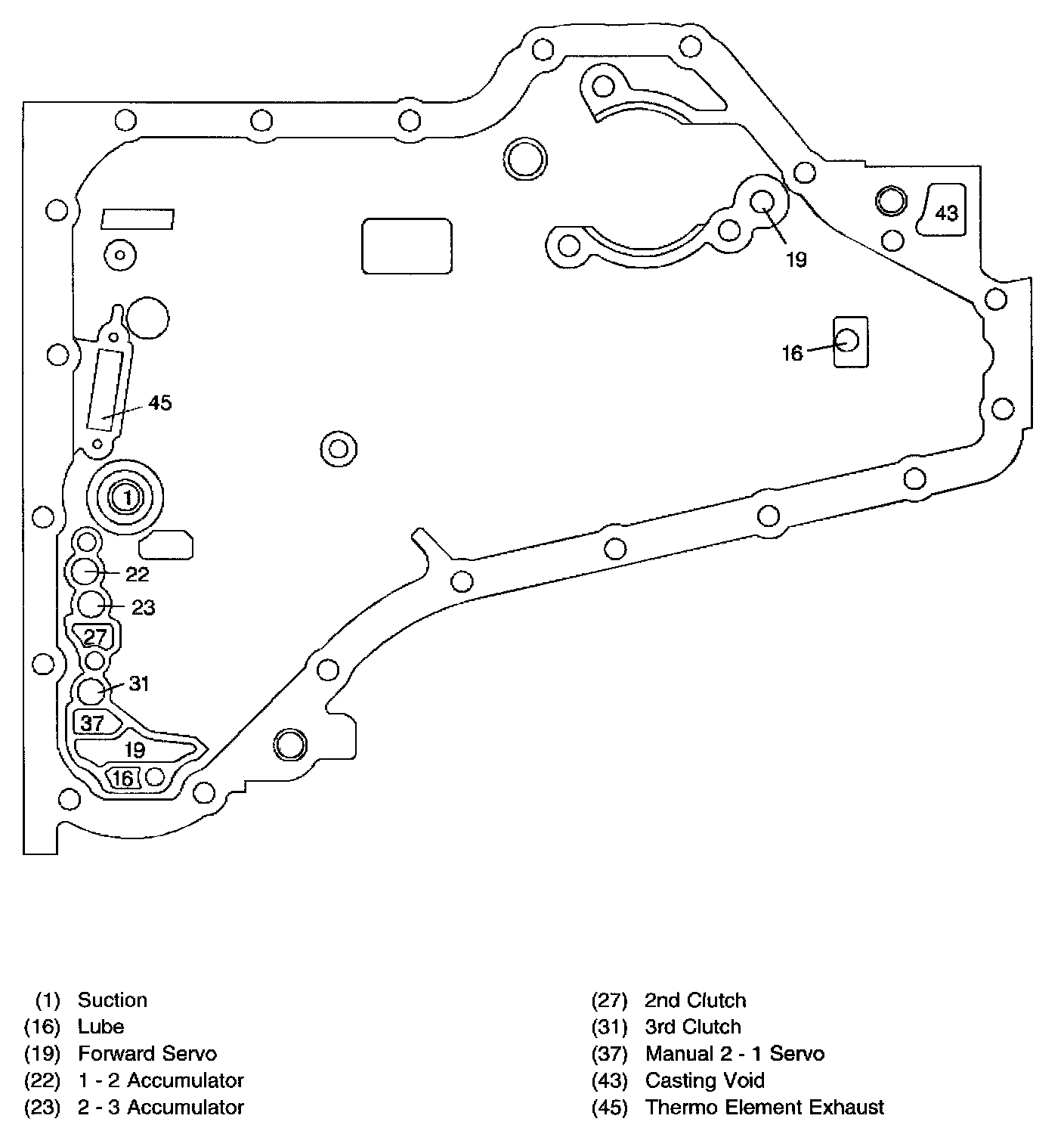

Case Fluid Passages (Case Cover Side)






Case Fluid Passages (Bottom)






1-2 and 2-3 Accumulator Housing Fluid Passages

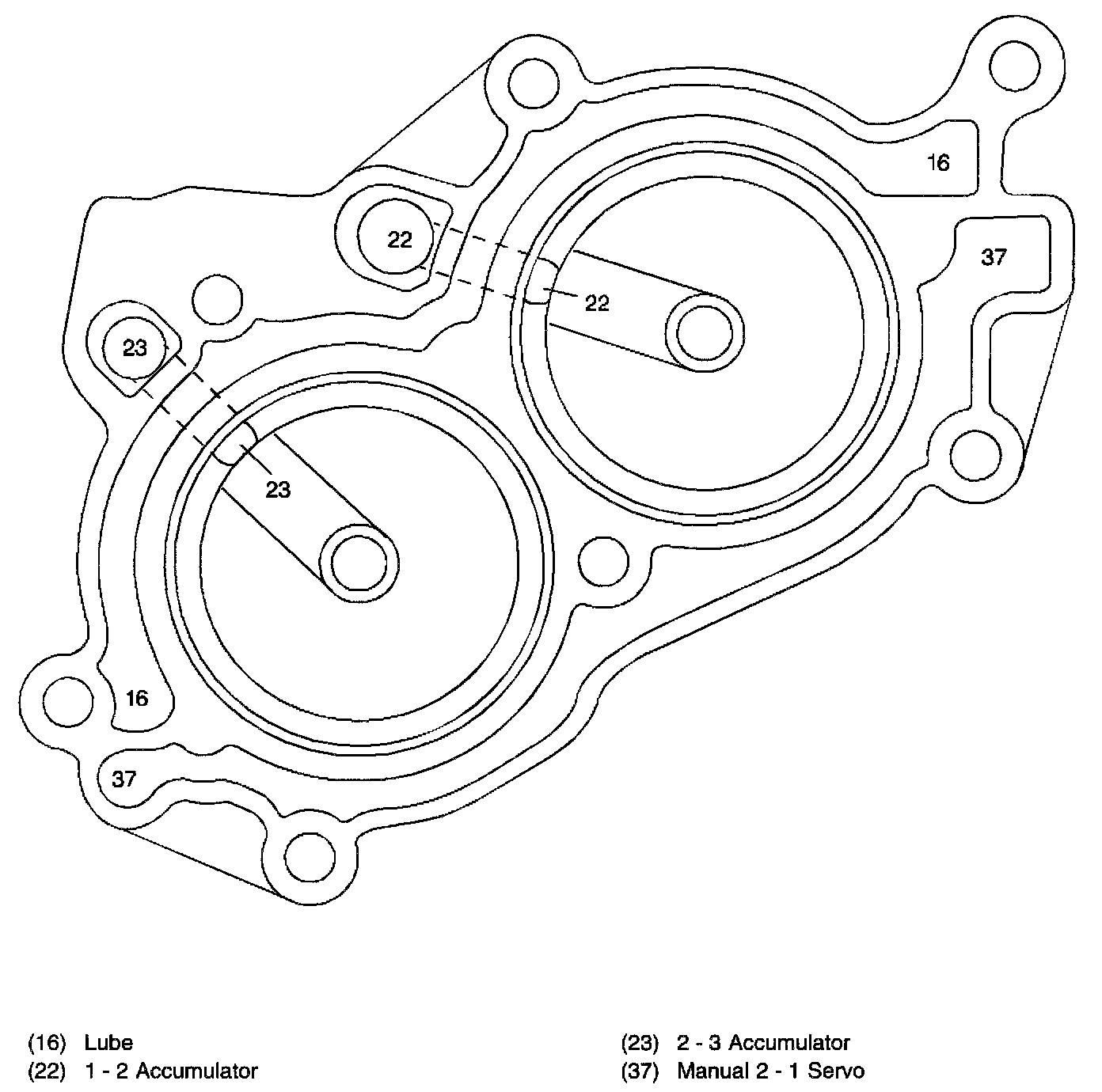

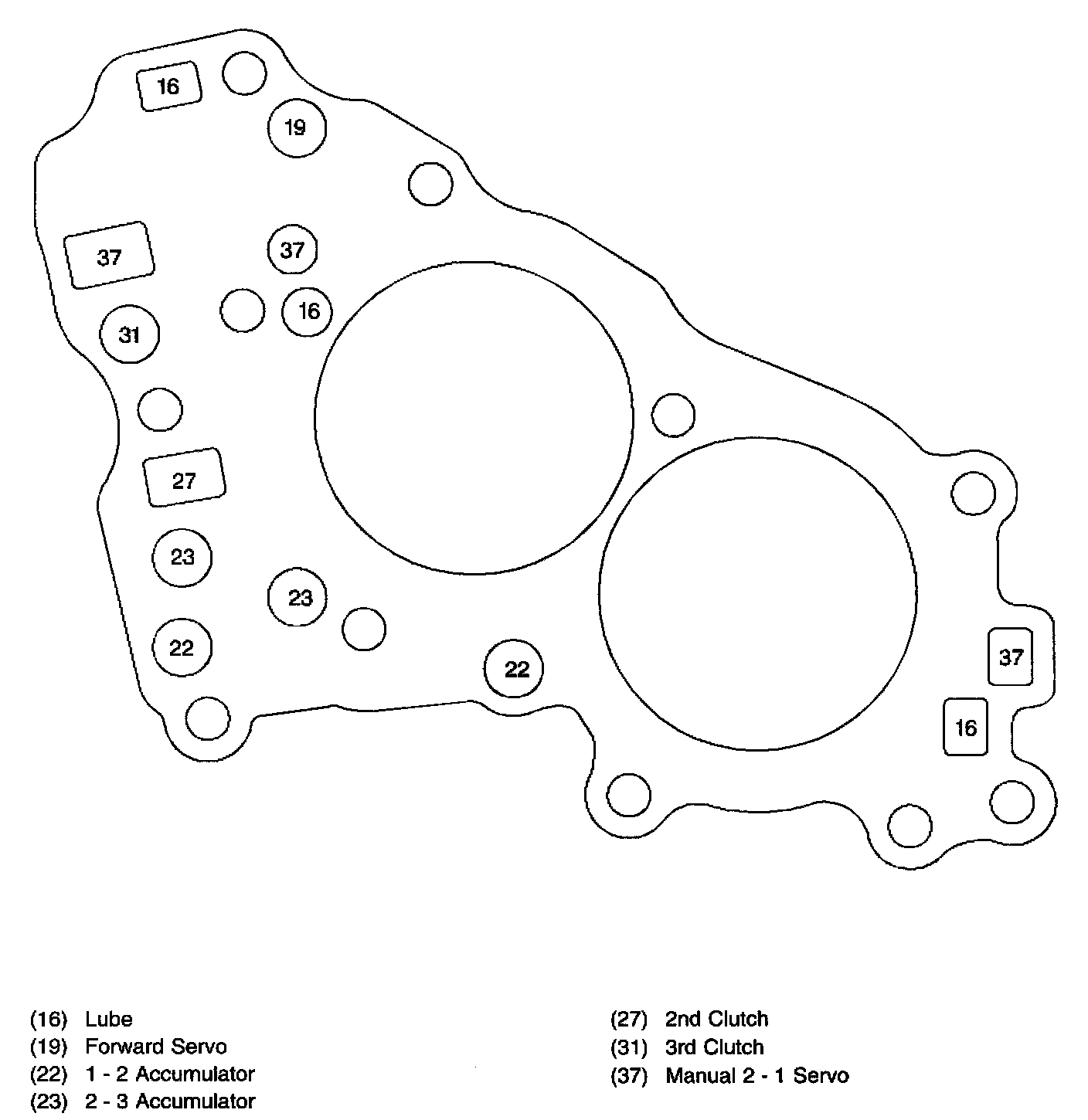

Accumulator Cover Spacer Plate Fluid Passages

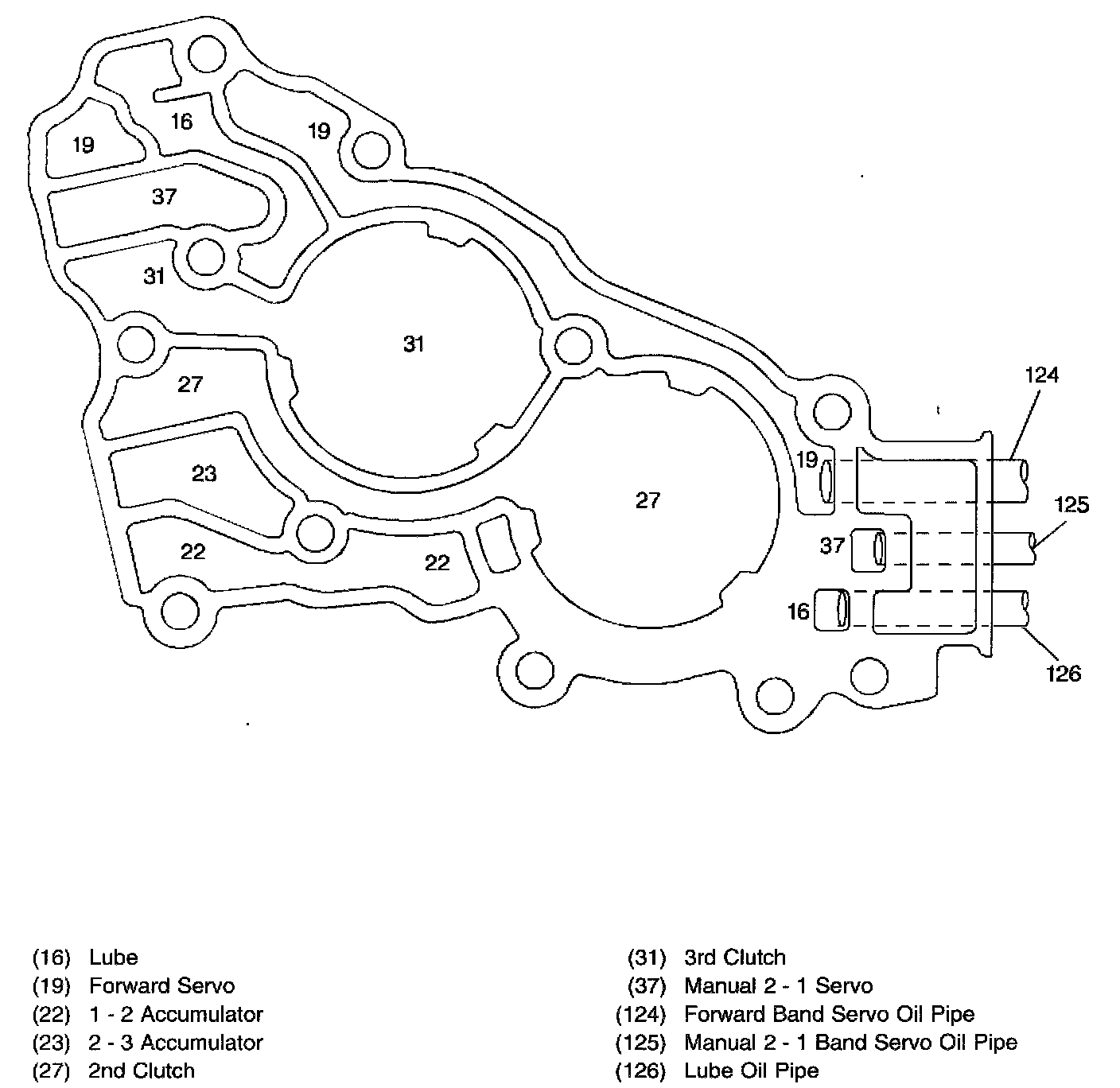

Accumulator Cover Fluid Passages

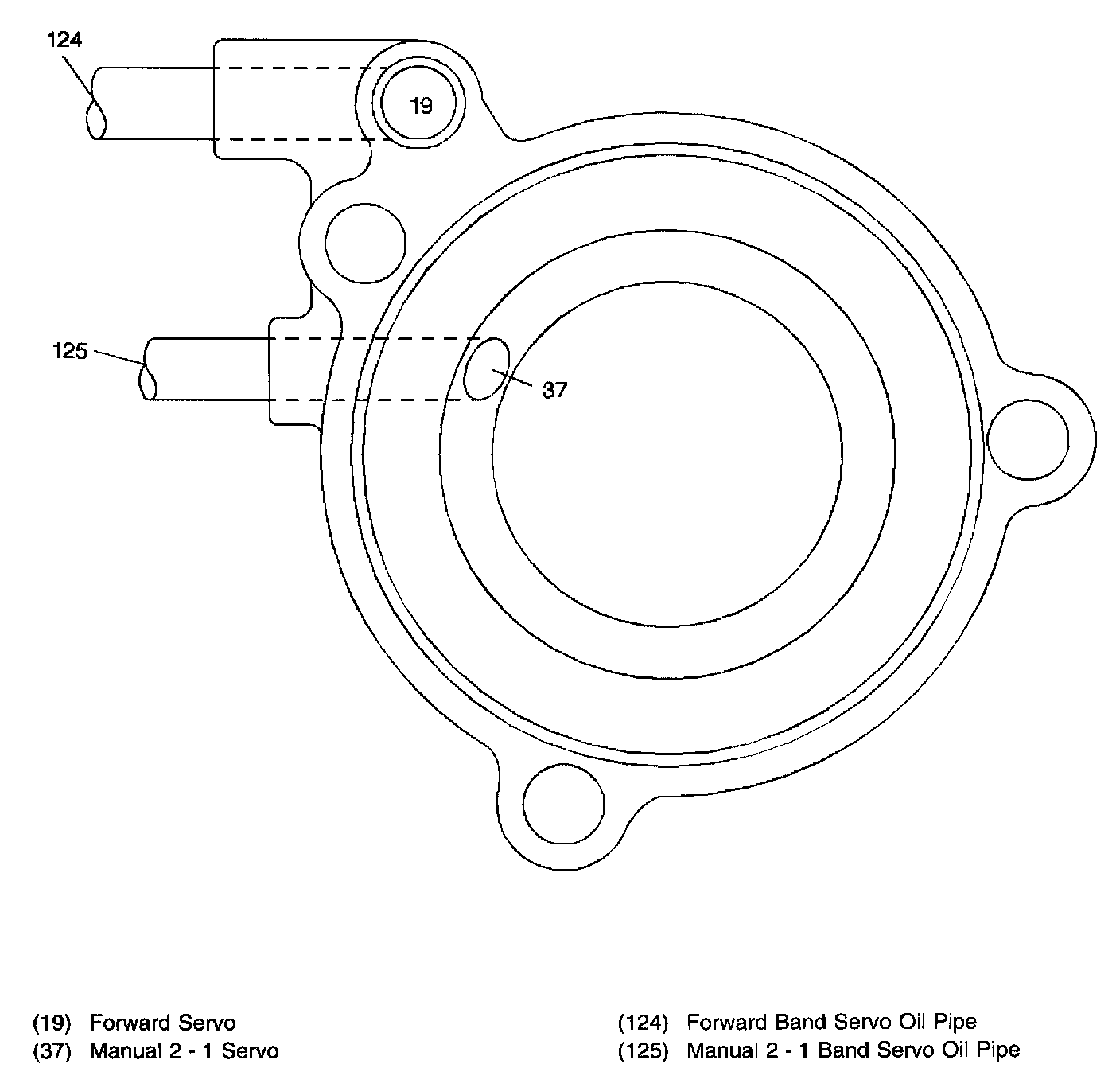

Manual 2-1 Band Servo Cover Fluid Passages
