Power Seat Drive Cable: Service and Repair

Seat Horizontal and Vertical Drive Cable Replacement

Removal Procedure

1. Remove the front seat.

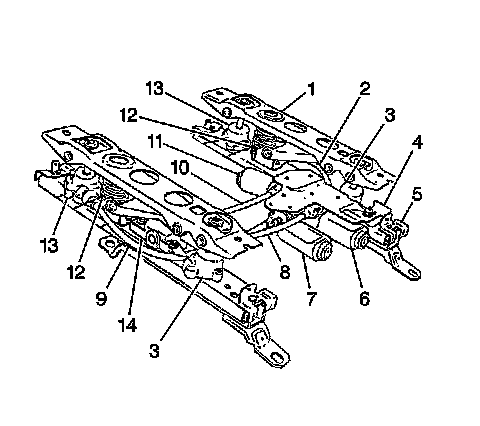

2. Squeeze the oblong connector at the following locations in order to disconnect the cables:

* The motors (6, 7)
* The vertical/horizontal actuators (3, 13)

Installation Procedure




1. Connect the cables (1) by pushing onto the connector until you hear a click.
2. Install the front seat.
