Oldsmobile
>>
2000
>>
Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Seat Temperature Switch
>>

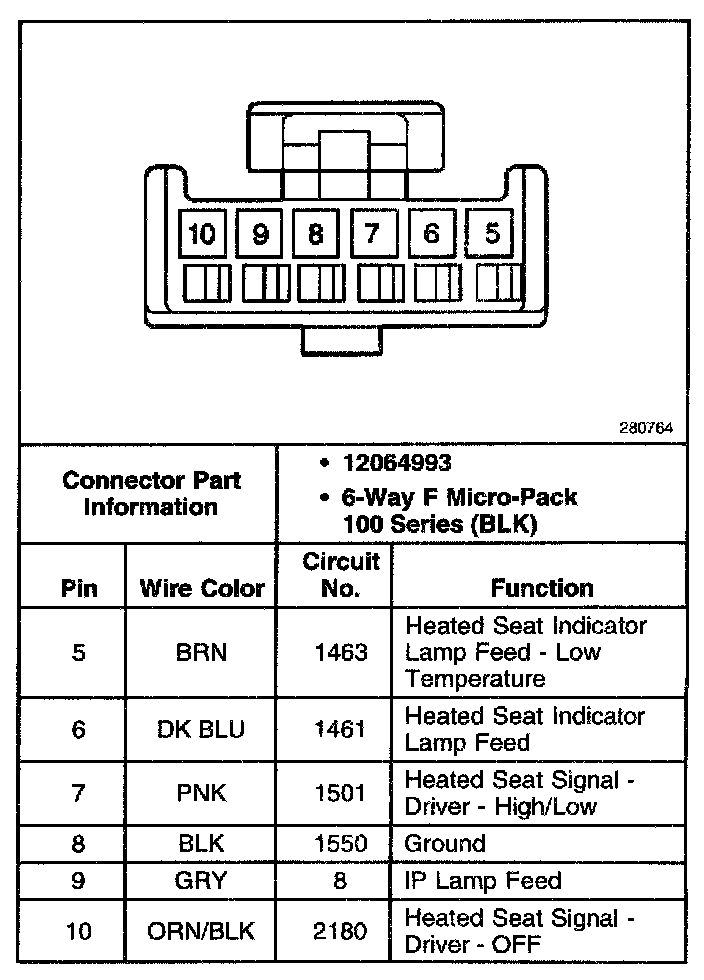

Heated Seat Switch, Driver
Heated Seat Switch, Driver
Heated Seat Switch, Driver:
