Wiper Transmission Replacement
REMOVAL PROCEDURETOOLS REQUIRED
J 39232 Wiper Transmission Separator
1. Remove the wiper arm assemblies from the wiper transmission assembly drive shafts.
2. Remove the air inlet screen assembly from the vehicle.
3. Remove the connector from the wiper motor assembly.
4. Remove the wiper transmission assembly from wiper motor crank arm assembly using the J 39232 Wiper Transmission Separator.

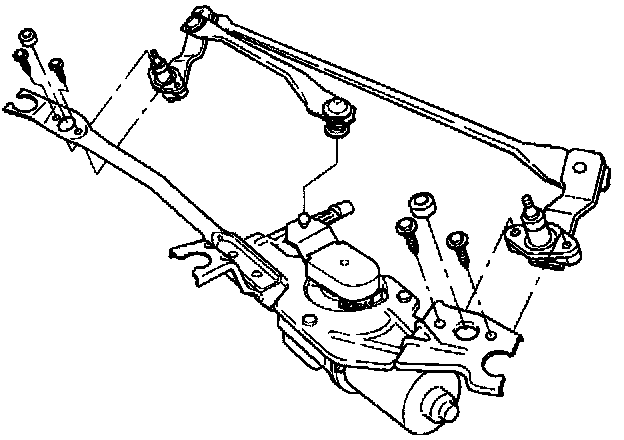

5. Remove three screws and the wiper drive system module from the vehicle.

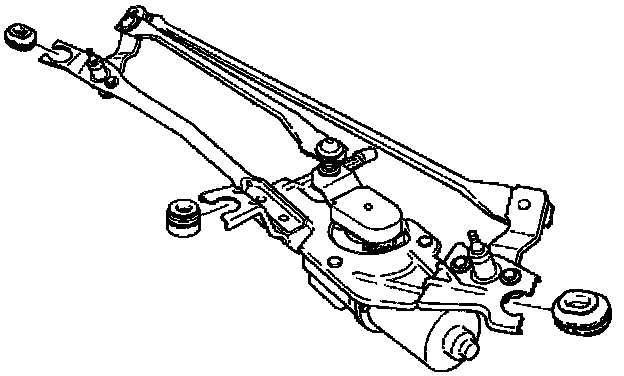

6. Remove three grommets from the tube frame.
7. Remove two caps from the wiper transmission assembly.
8. Remove four screws and the wiper transmission assembly from the tube frame.
9. Remove the wiper motor assembly and crank arm from the tube frame.
INSTALLATION PROCEDURE
TOOLS REQUIRED
J 39529 Wiper Transmission Installer
1. Install the wiper motor assembly and crank arm onto the tube fram
2. Install the wiper transmission assembly on the tube frame with four screws.
Tighten
Tighten the screws to 9 N.m (80 lb in).
3. Install two new caps onto the wiper transmission assembly.
4. Install three grommets onto the tube frame.
5. Install the wiper drive system module on the vehicle with three screws.
Tighten
Tighten the screws to 10 N.m (88 lb in).
6. Install the wiper transmission assembly on the wiper motor crank arm assembly using the J 39529 Wiper Transmission Installer.
7. Install the connector onto the wiper motor assembly.
8. Install the air inlet screen assembly on the vehicle.
9. Install the wiper arm assemblies onto the wiper transmission assembly drive shafts.
10. Operate the wipers and check for proper operation.
