Intrigue V6-214 3.5L VIN H SFI
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Locations
>>
Control Valve Body Assembly
Control Valve Body Assembly

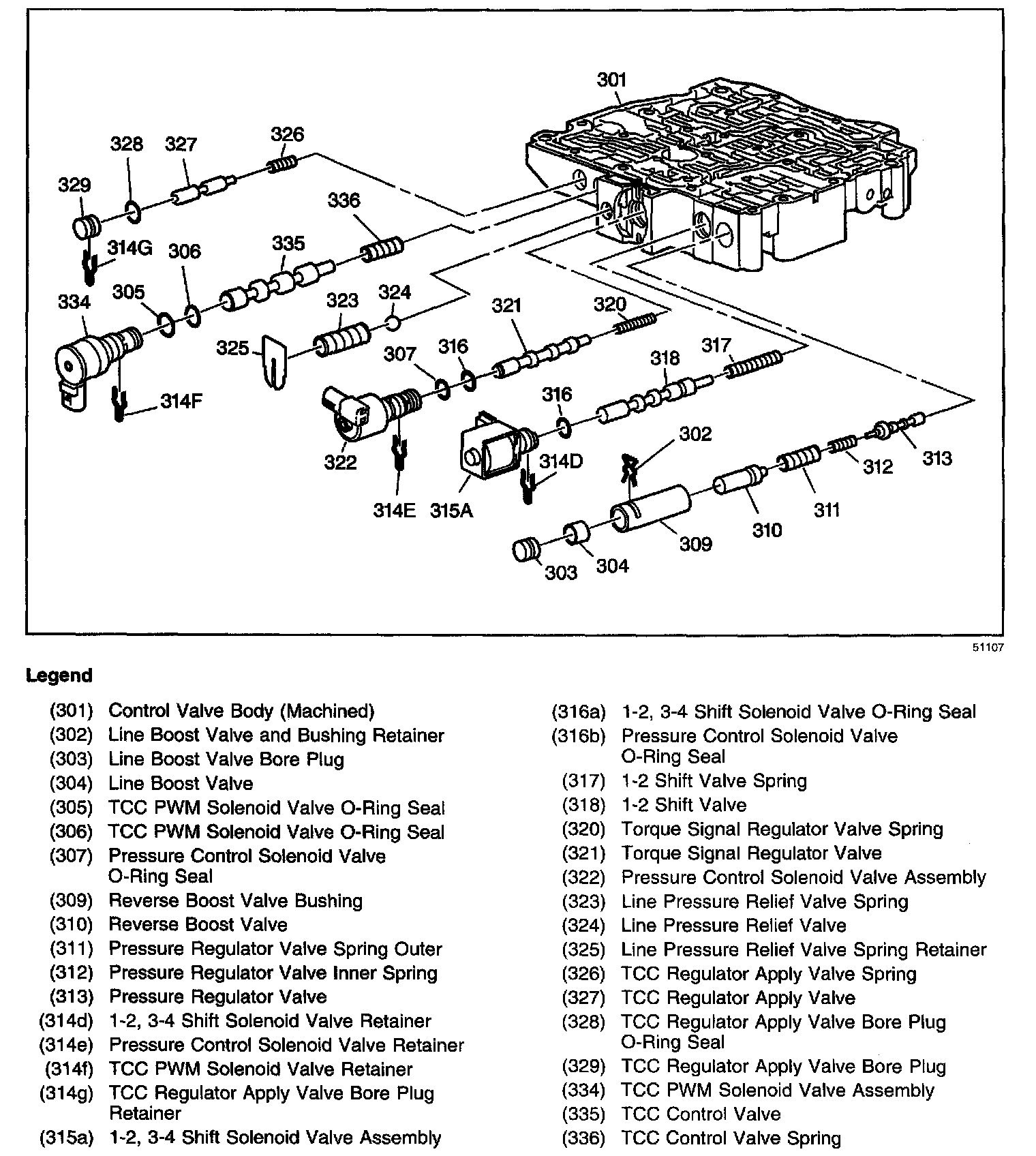

Control Valve Body Assembly (1 of 2)
Control Valve Body Assembly (2 of 2)
