Washer Fluid Level Switch: Service and Repair

WASHER SOLVENT CONTAINER LEVEL SENSOR REPLACEMENT

REMOVAL PROCEDURE




1. Remove the windshield washer solvent container. Refer to Washer Solvent Container Replacement. Service and Repair

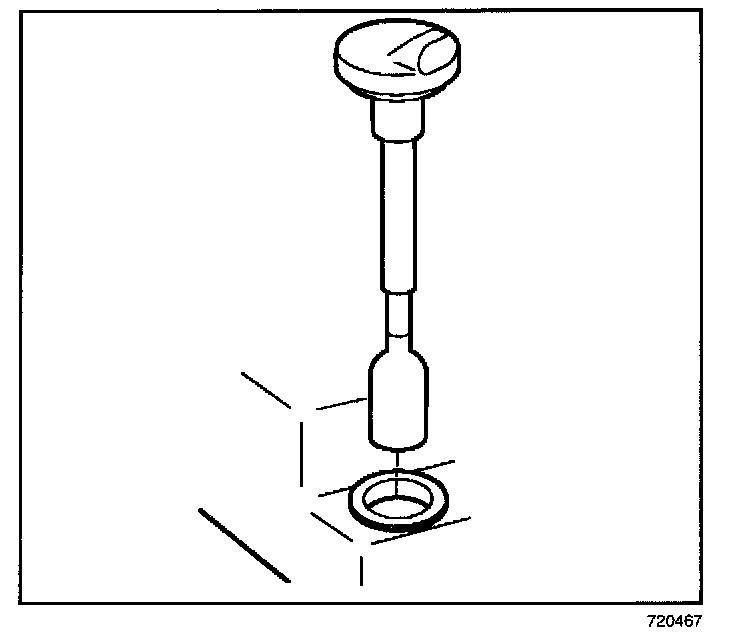

2. Remove the windshield washer solvent level sensor from the windshield washer solvent container.

INSTALLATION PROCEDURE




1. Install the windshield washer solvent level sensor into the windshield washer solvent container.
2. Install the windshield washer solvent container. Refer to Washer Solvent Container Replacement. Service and Repair
