Air Injection Pump: Service and Repair
SECONDARY AIR INJECTION (AIR) PUMP REPLACEMENTREMOVAL PROCEDURE
1. Raise and support the vehicle. Refer to Lifting and Jacking the Vehicle.
2. Remove the left front fender liner.

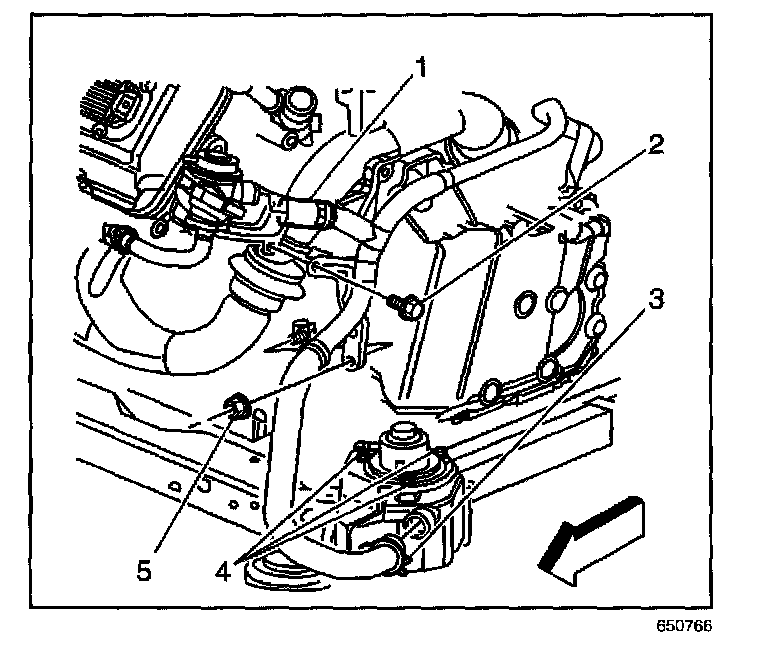

3. Compress the pinch clamp and remove the outlet hose from the pump (3).
4. Remove the inlet hose from the pump.
5. Remove the pump fasteners.

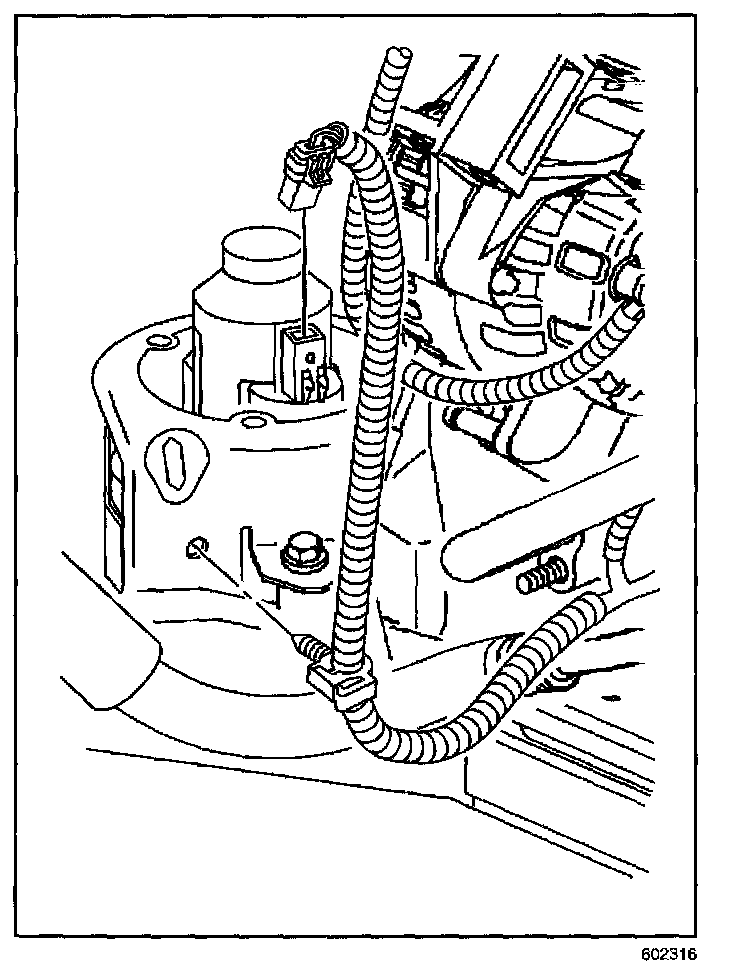

6. Reposition pump to gain access to the electrical connector.
7. Disconnect the pump electrical connector.
8. Remove the pump from the vehicle.
9. Transfer parts as necessary.
INSTALLATION PROCEDURE

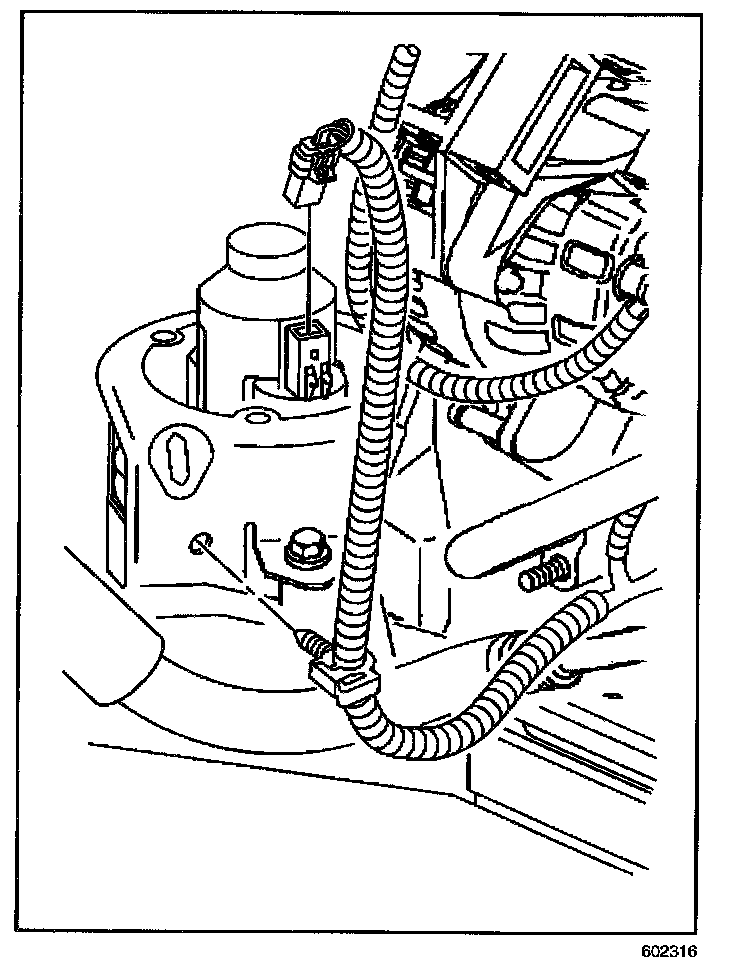

1. Connect the pump electrical connector.
NOTE: Refer to Fastener Notice in Service Precautions.
2. Attach the pump to the bracket using the fasteners.
Tighten
Tighten the fasteners to 9 N.m (80 lb in).
3. Install the inlet hose to the pump.

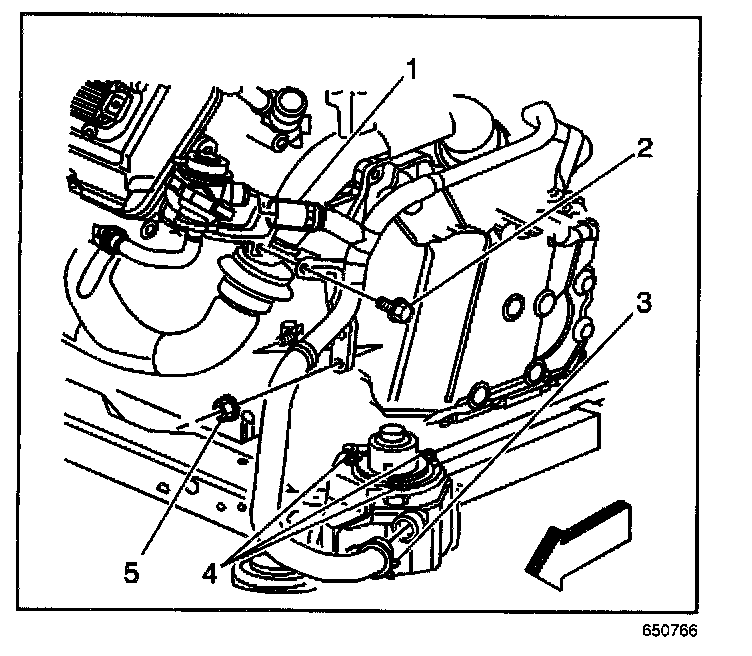

4. Compress the pinch clamp and install the outlet hose to the pump (3).
5. Install the left front fender liner.
6. Lower the vehicle.
