Home >> Peugeot >> 1983 >> 505 L4-2304cc 2.3L DSL XD-2 >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Exhaust Gas Recirculation >> Diagrams >> W/Diesel Engine

W/Diesel Engine

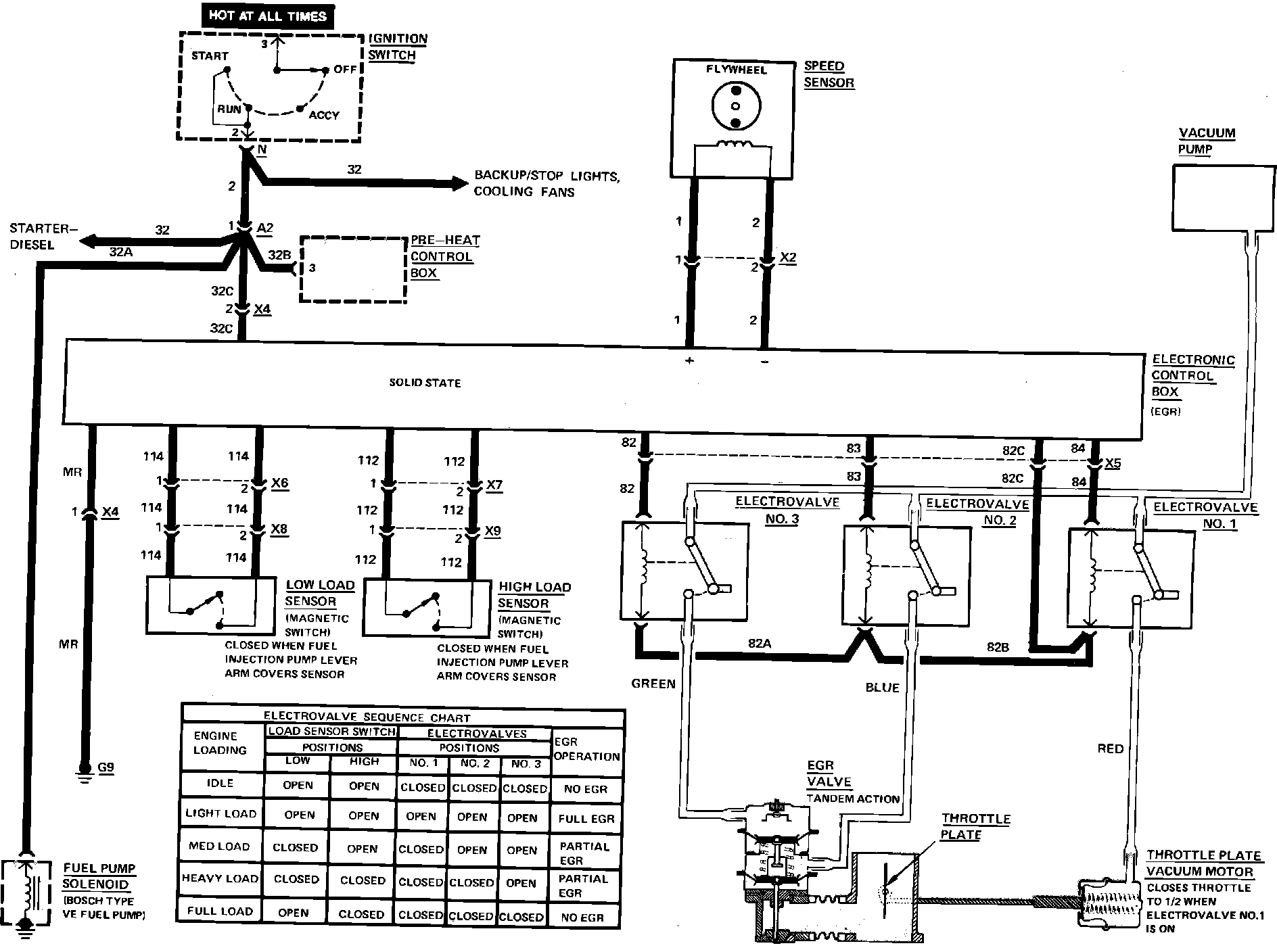

Fig. 19 Exhaust Gas Recirculation Wiring Circuit.:
