Home >> Peugeot >> 1983 >> 505 L4-2304cc 2.3L DSL XD-2 >> Repair and Diagnosis >> Starting and Charging >> Starting System >> Diagrams

Starting System: Diagrams

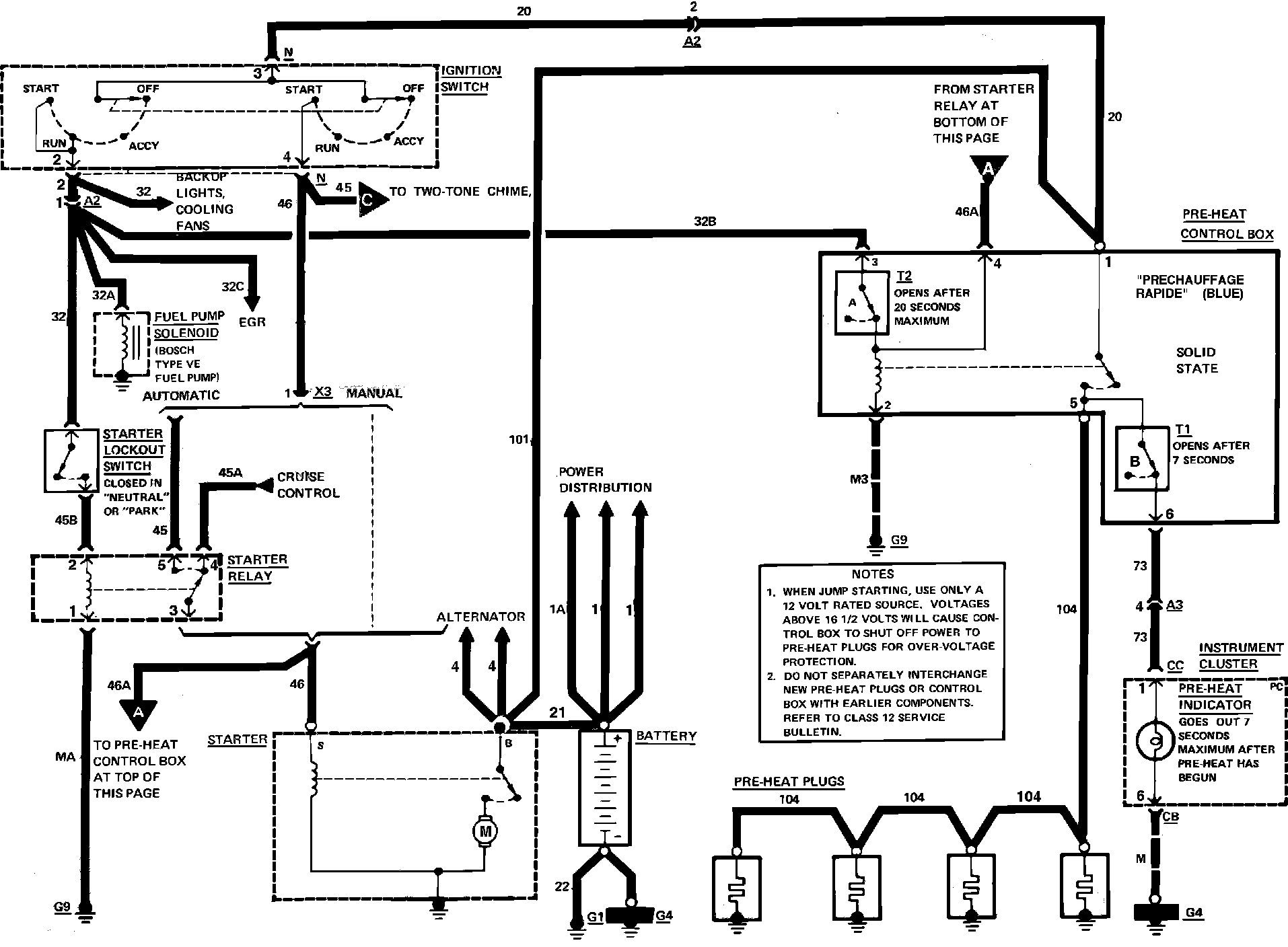

Fig. 41 Starter Wiring Circuit.:
