Home
>>
Peugeot
>>
1989
>>
405 L4-1905cc 1.9L DOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Locations
>>
Underhood View
Underhood View

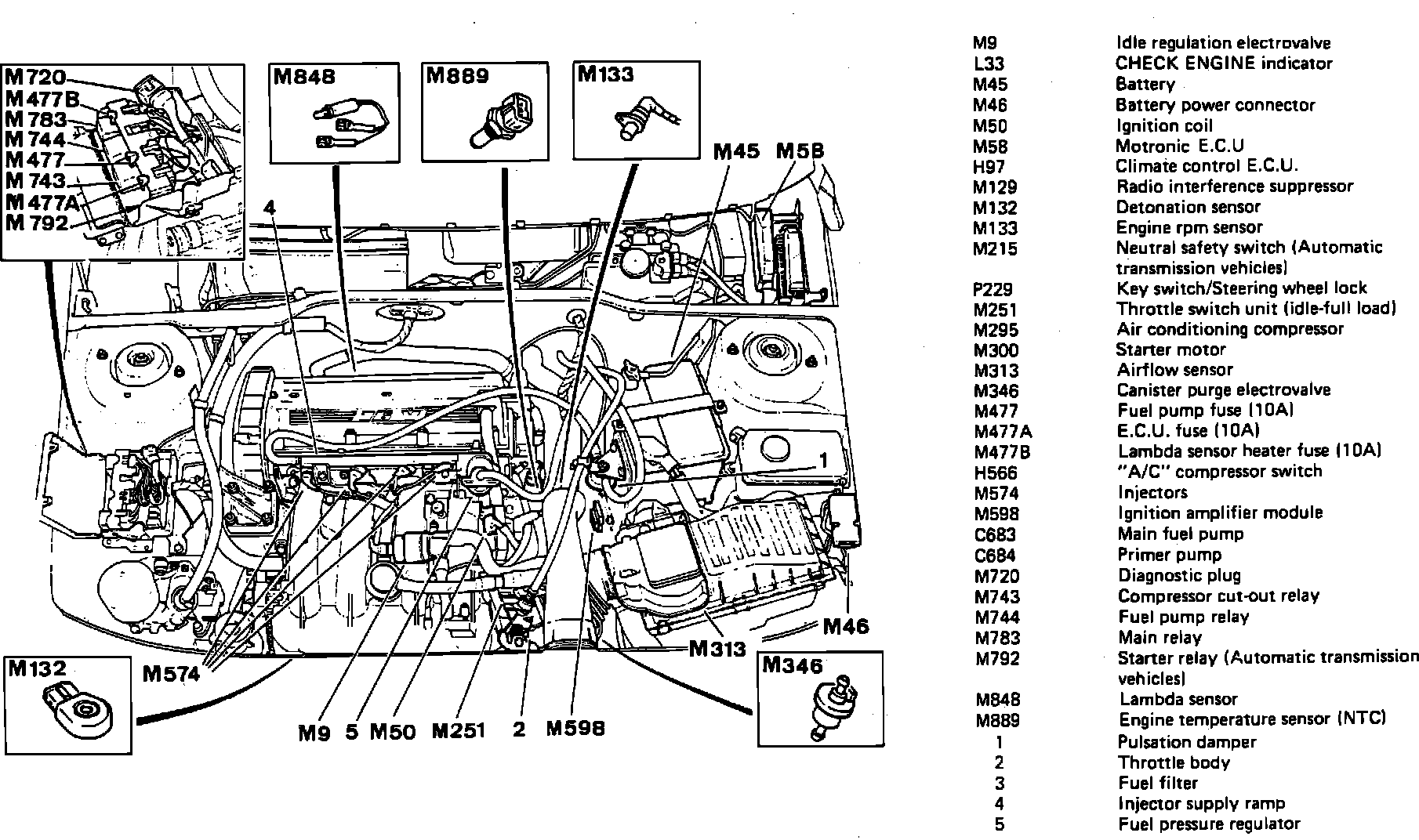

Fig. 1 Engine Compartment:
