Engine Management

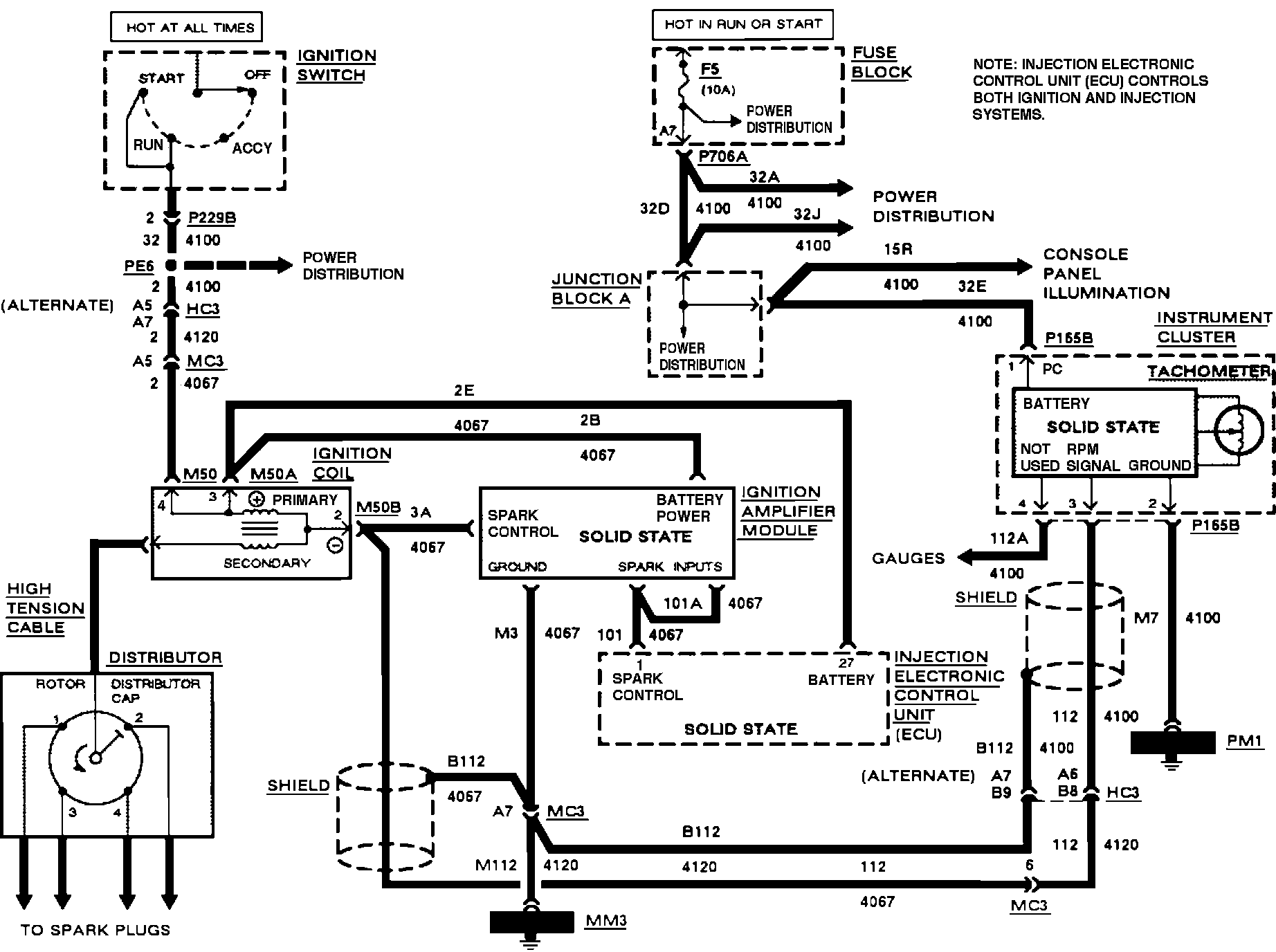

Ignition/Tachometer:

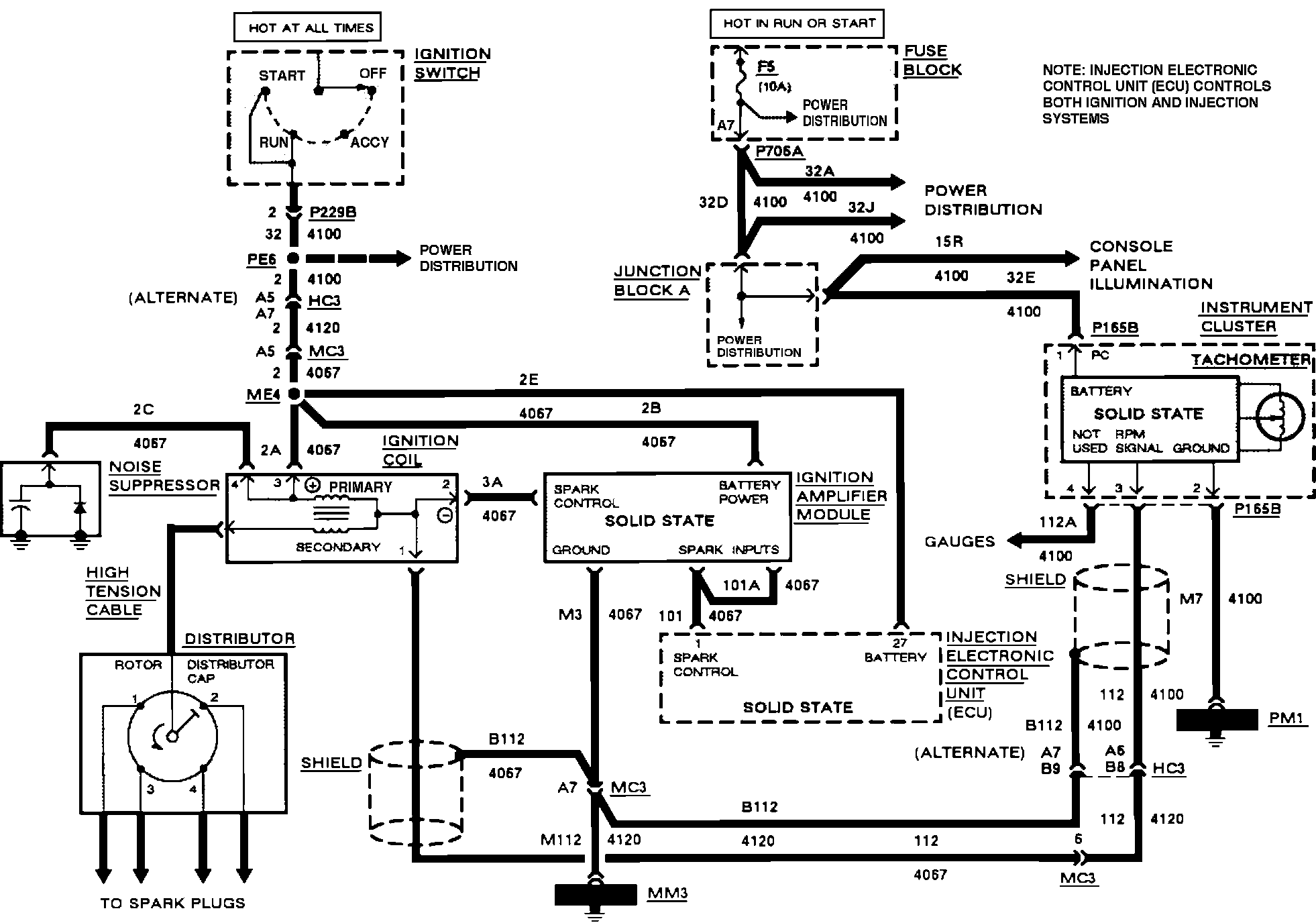

Ignition/Tachometer:



Fuel Injection:



Fuel Injection:



Fuel Injection:



Fuel Injection:



Fuel Injection:



Fuel Injection:



Fuel Injection:



Fuel Injection:
