Home >> Plymouth Truck >> 1983 >> Arrow/D50 Import L4-2000cc 2.0L >> Repair and Diagnosis >> Powertrain Management >> Emission Control Systems >> Diagrams >> EGR System Components

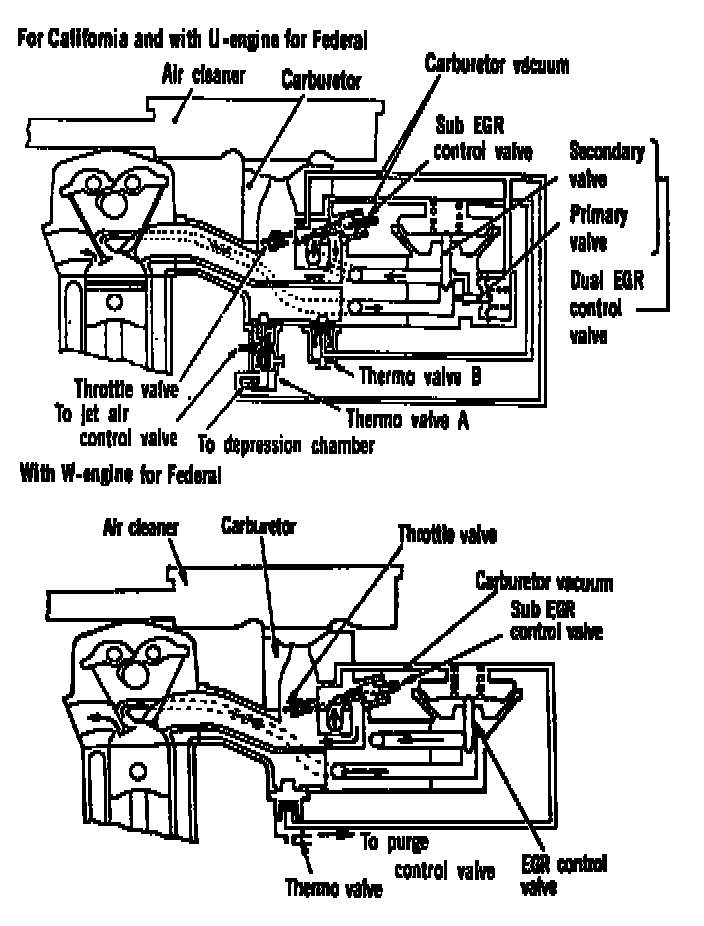

EGR System Components

E.G.R.:
