Evaporative Emission Control System
Evaporative Emission Control System

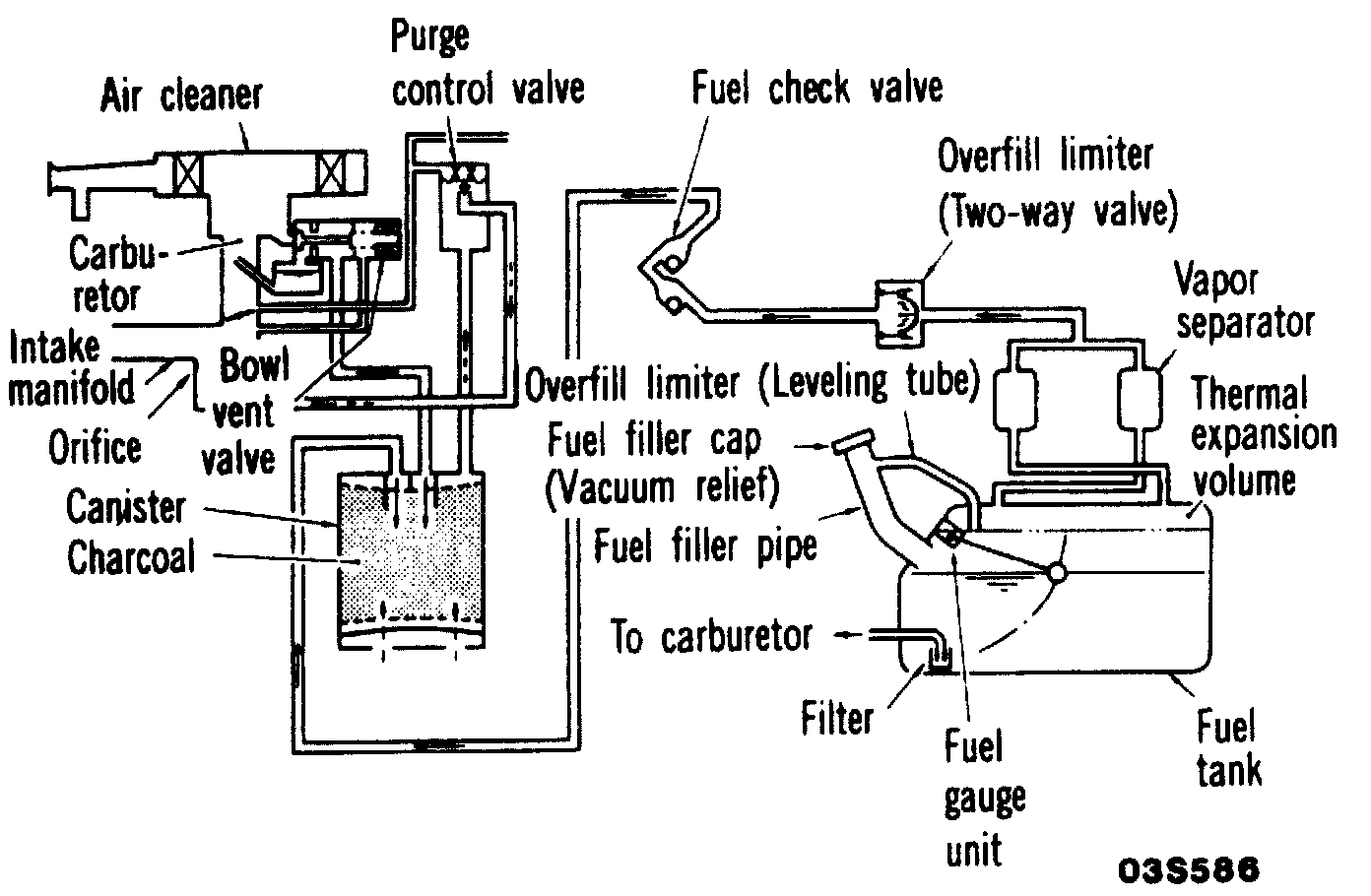

Evaporative Emission Control (EEC) system. 1982-86 Pickup w/2000cc & 2600cc engines:
