Connecting Rod: Service and Repair

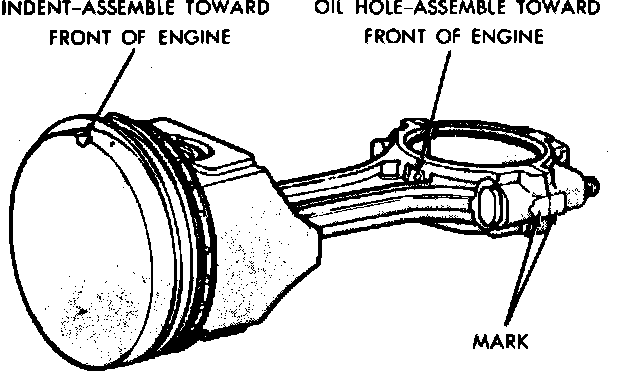

Fig. 28 Piston & connecting rod assembly:

When installing the piston and rod assembly, the indentation on the top of piston must face the timing belt side of the engine, Fig. 28. The oil hole on connecting rod must also face the timing belt side of the engine and be on the same side as the indented mark on the piston.
