Plymouth Truck
>>
1991
>>
Grand Voyager V6-201 3.3L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Fuse Block
Fuse Block

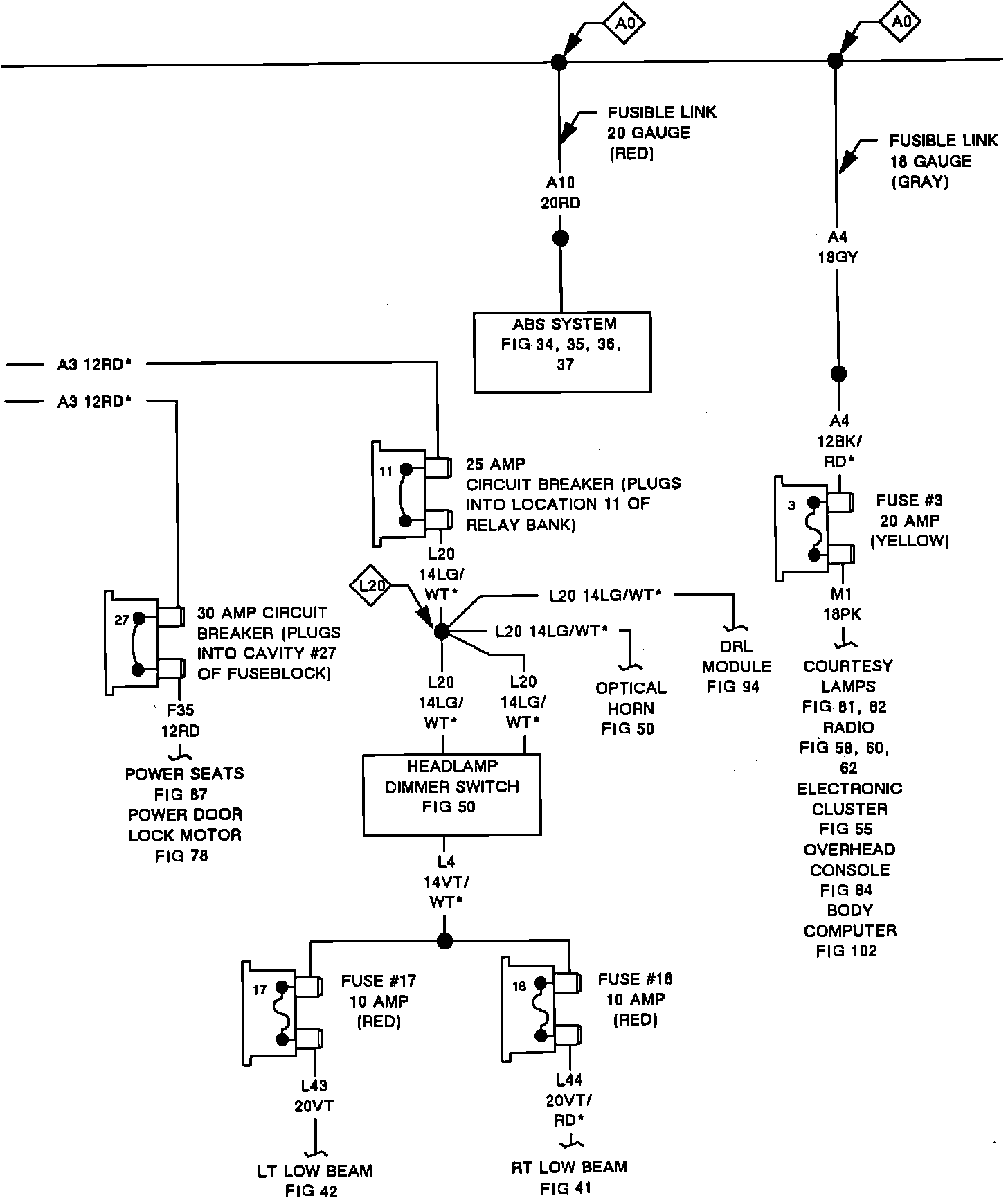

Fuse Application Chart:

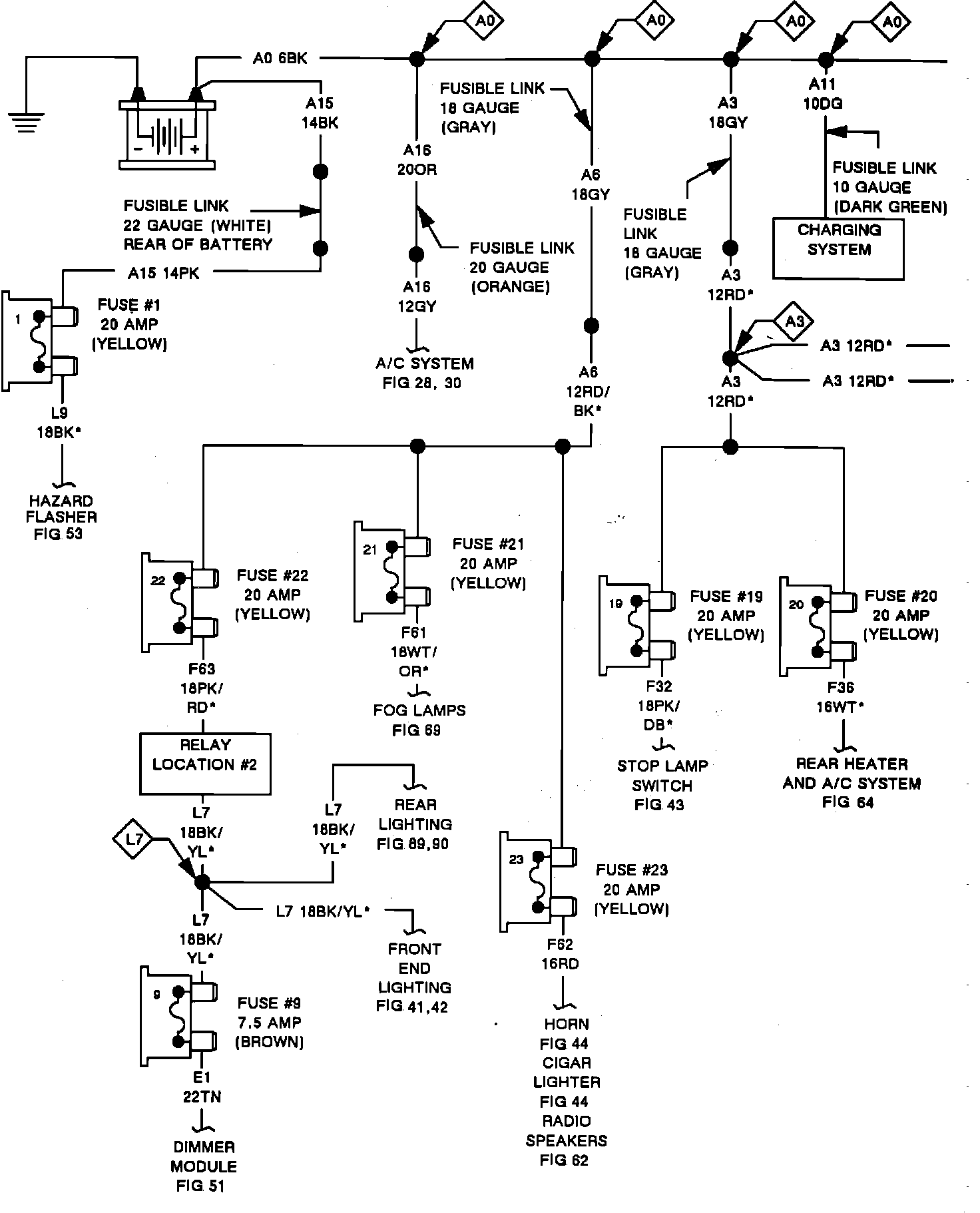

Fuse Application Chart:

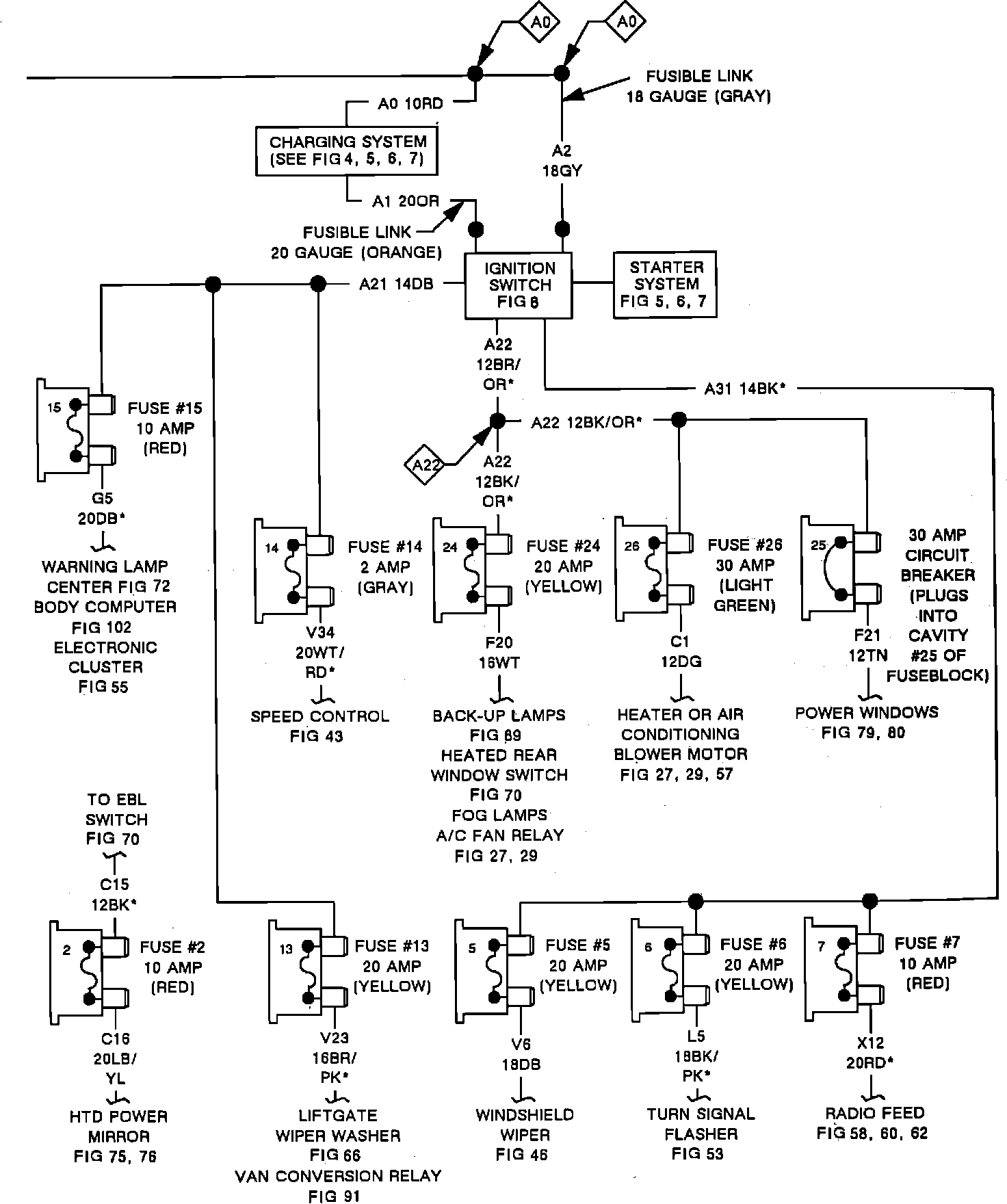

Fuse Application Chart:
