Windshield Washer Pump
>>
Locations
Windshield Washer Pump: Locations

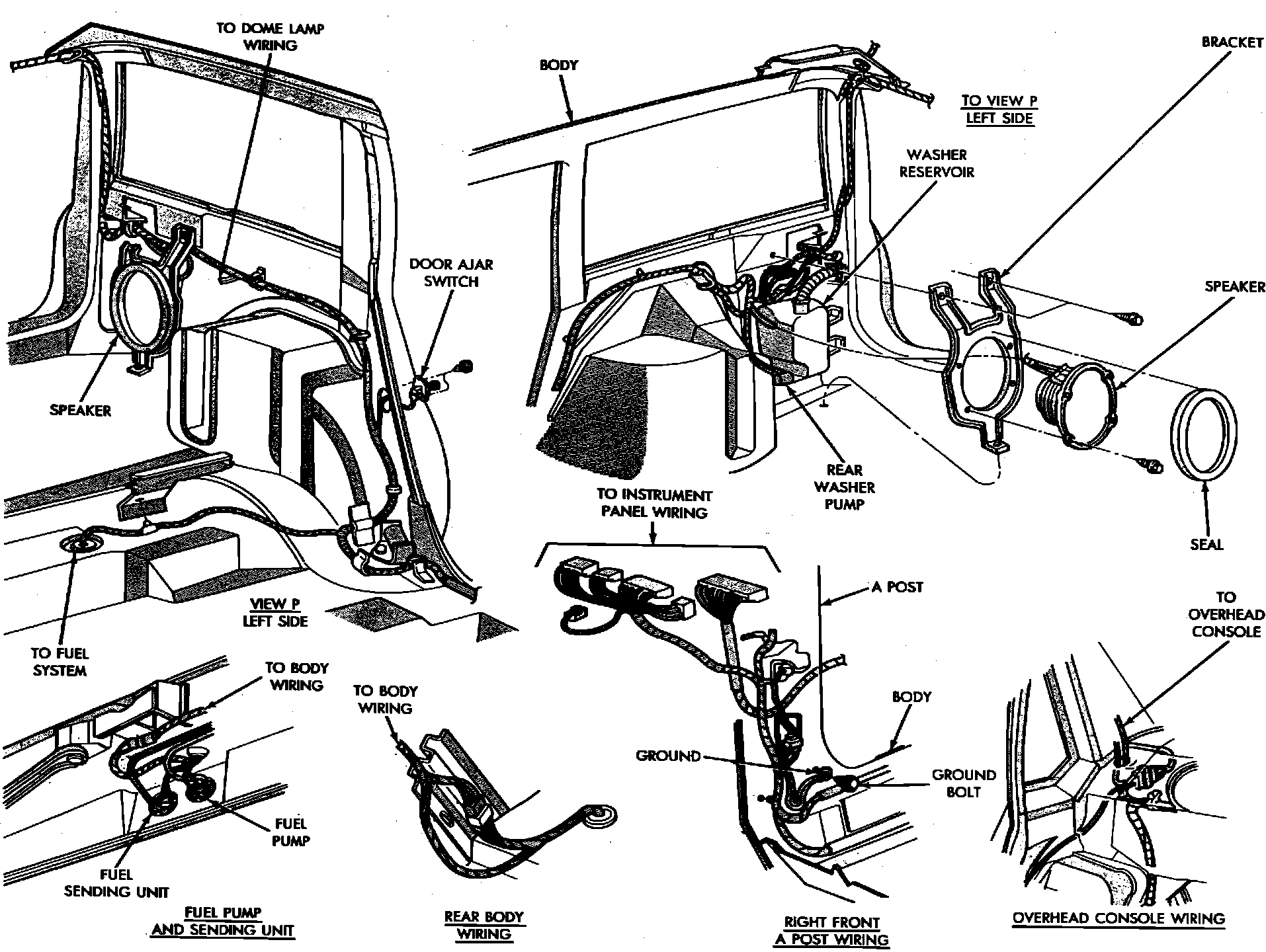

Luggage Compartment Components & Wiring Harness.:
Attached To Rear Washer Reservoir
Applicable to: Station Wagon
