Bulkhead Connector
>>
Instrument Panel Side
Instrument Panel Side

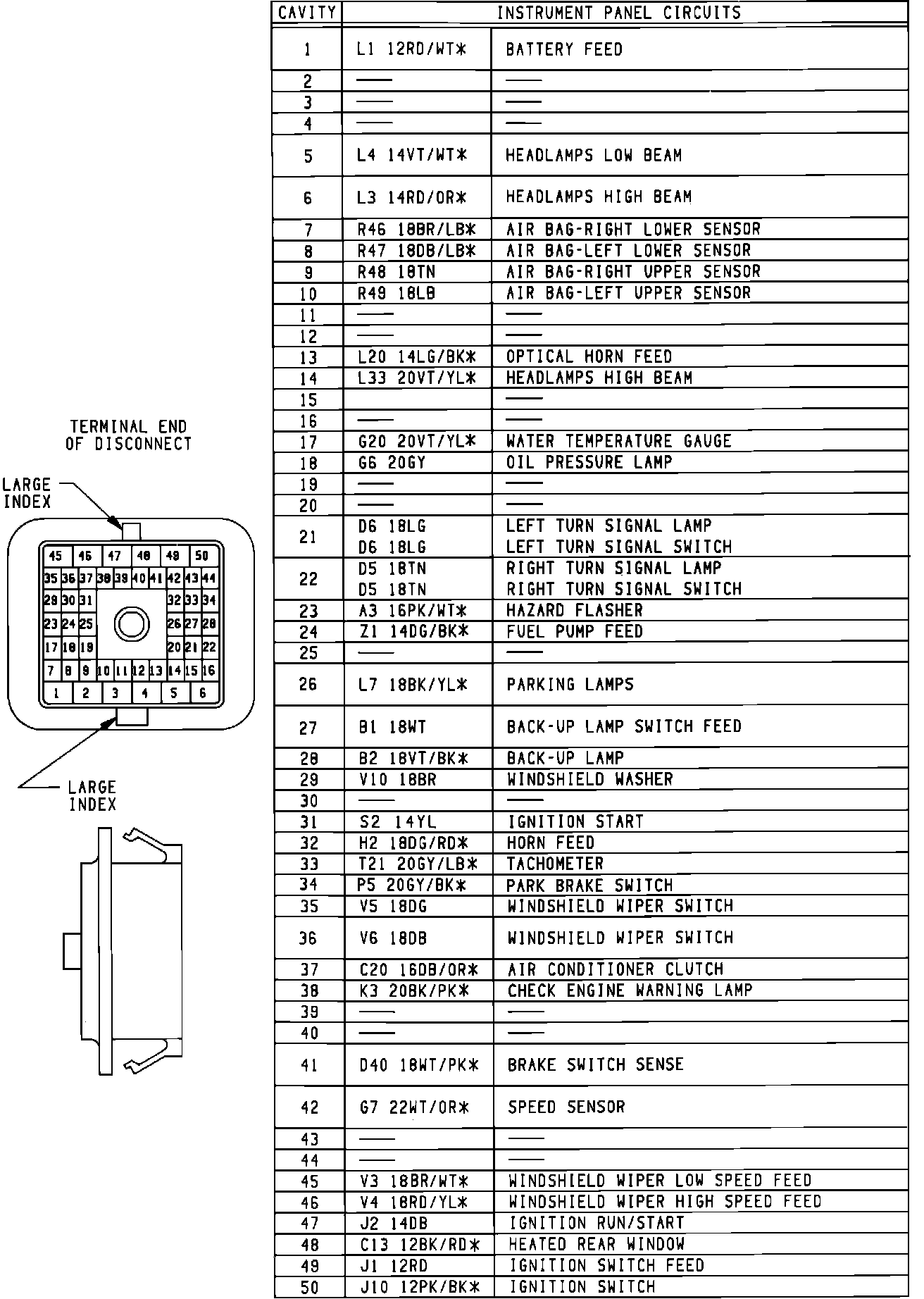

Bulkhead Connector. Instrument Panel (50 Way Connector):
