Operation CHARM
: Car repair manuals for everyone.
Home
>>
Plymouth
>>
1990
>>
Horizon L4-135 2.2L SOHC
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

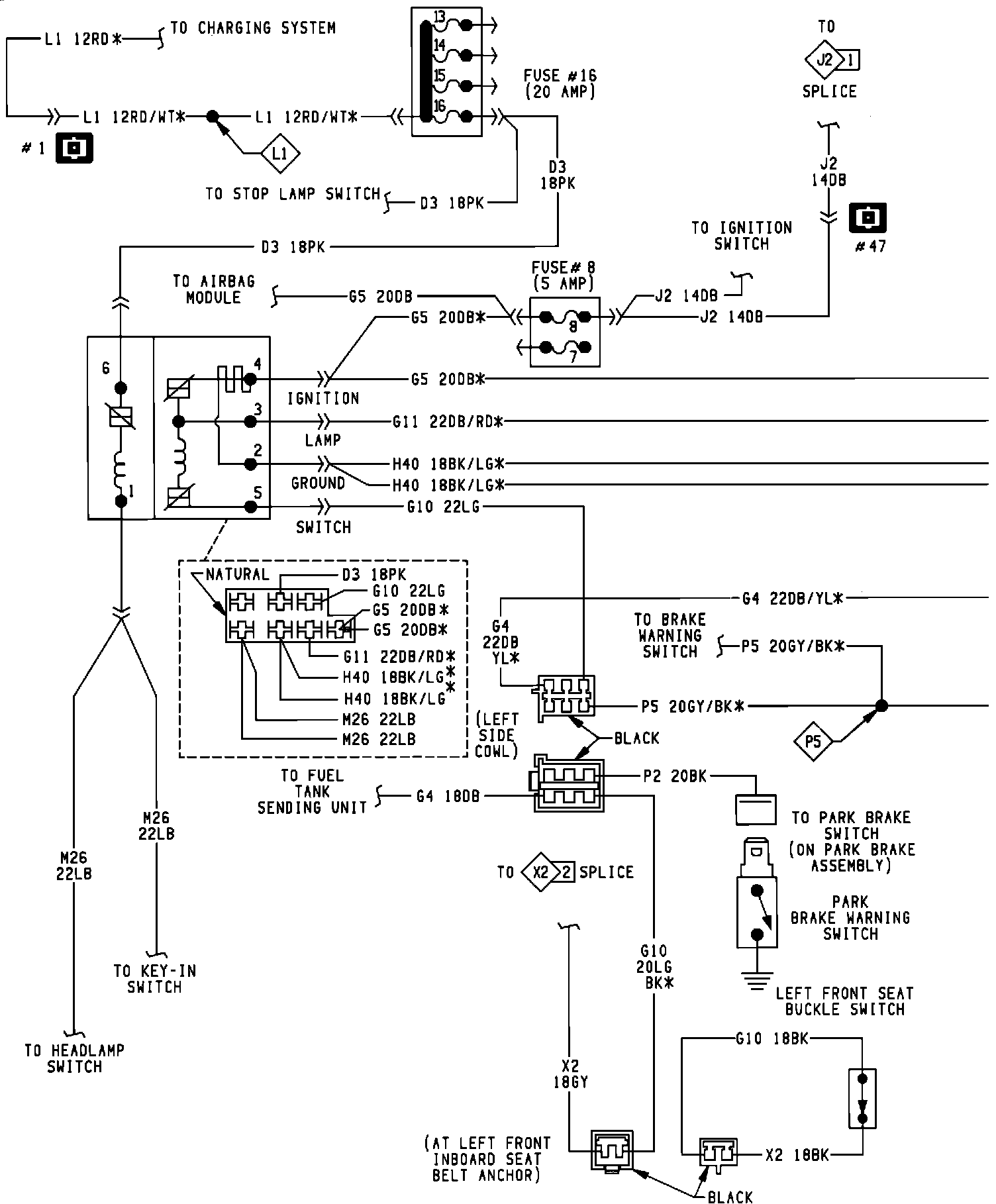

Brake Fluid Pressure Sensor/Switch
Brake Fluid Pressure Sensor/Switch

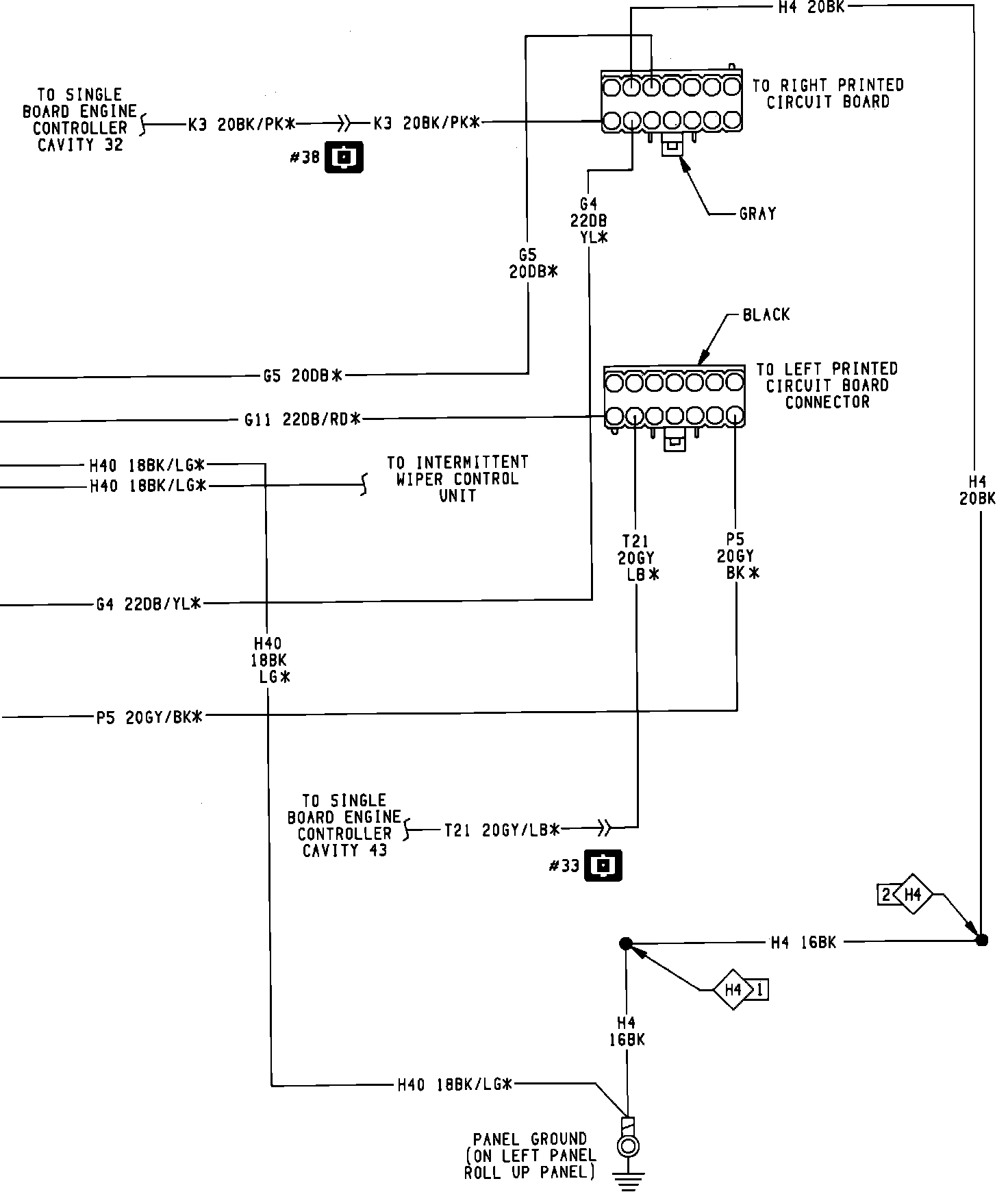

Brake, Seatbelt Warning & Tachometer:
Brake, Seatbelt Warning & Tachometer:
