Home >> Plymouth >> 1990 >> Horizon L4-135 2.2L SOHC >> Repair and Diagnosis >> Locations >> Splice Locations >> Engine Compartment Splices >> Part 2 of 2

Part 2 of 2

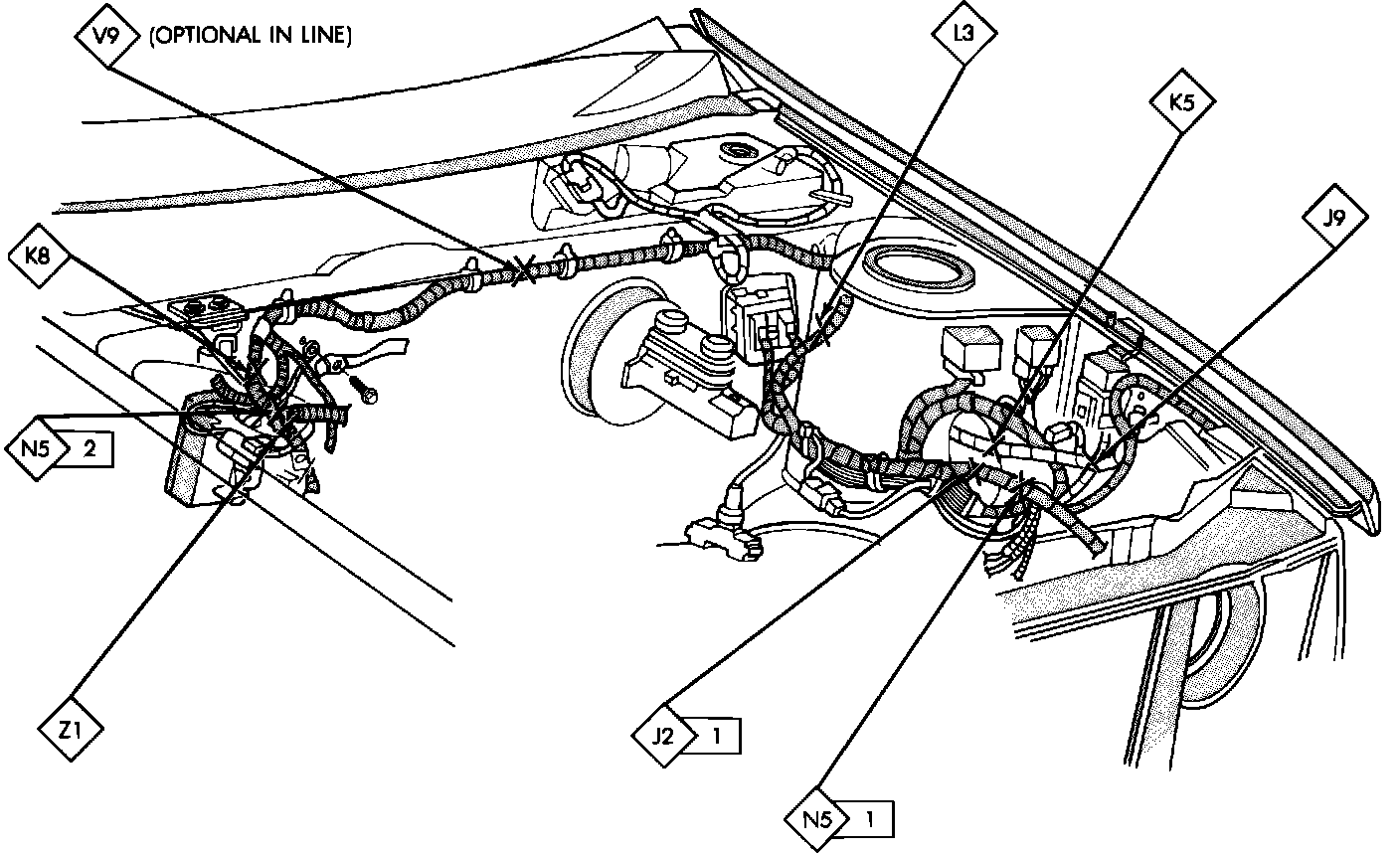

Splice Locations. Engine Compartment:
