Home
>>
Plymouth
>>
1997
>>
Neon L4-2.0L VIN C
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Powertrain Management
>>
Fuel Pump
>>
Fuel Pump Relay
>>
Fuel Pump Relay Connector
Fuel Pump Relay Connector

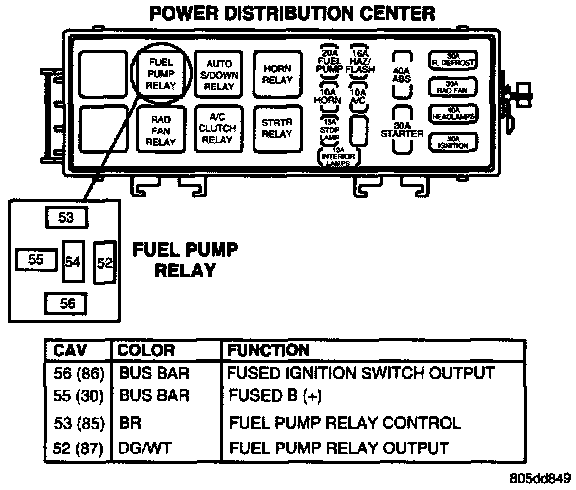

Fuel Pump Relay:
