Checking Speed Control Operation With No DTC's Present

Tests 1 - 3:

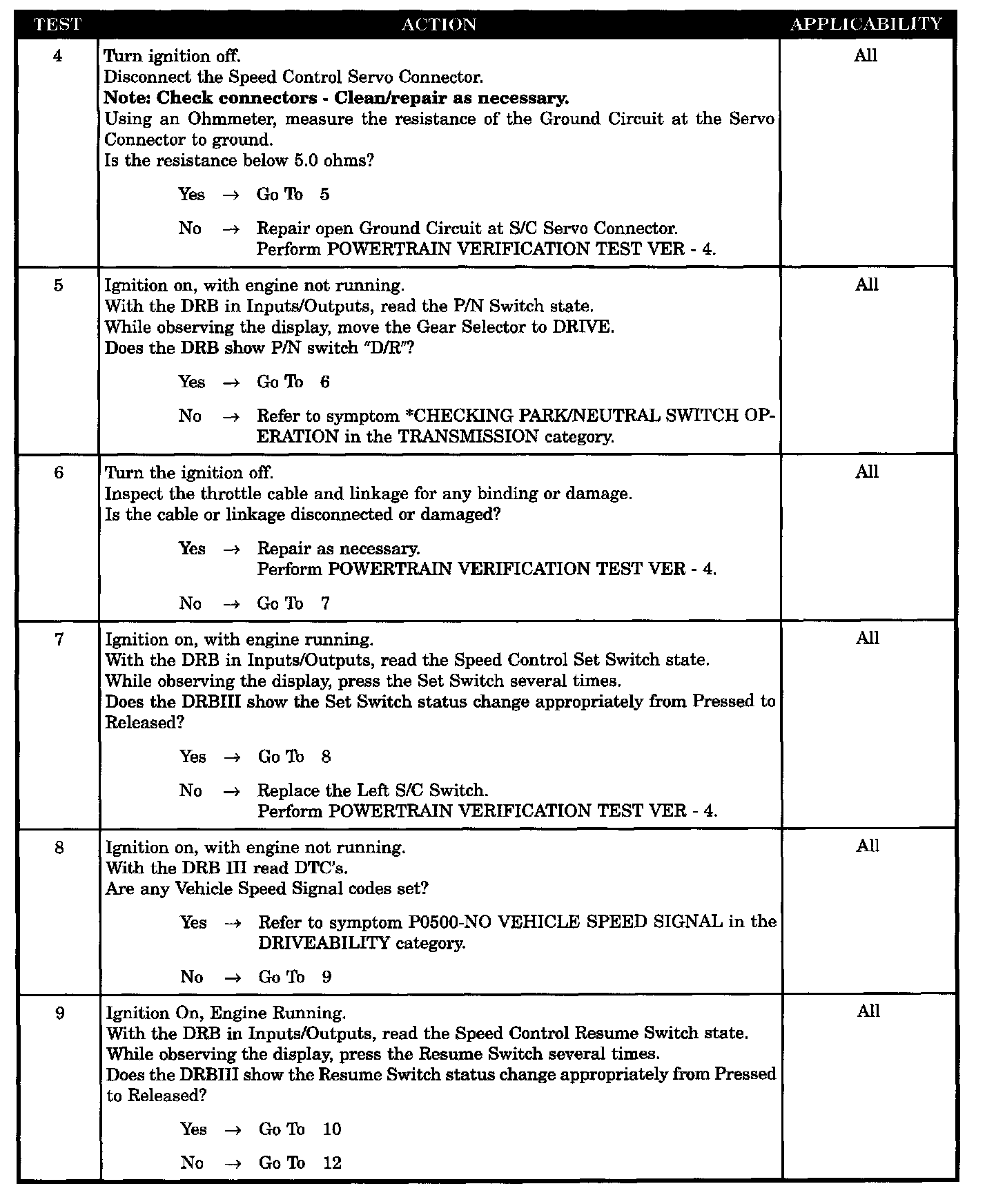

Tests 4 - 9:

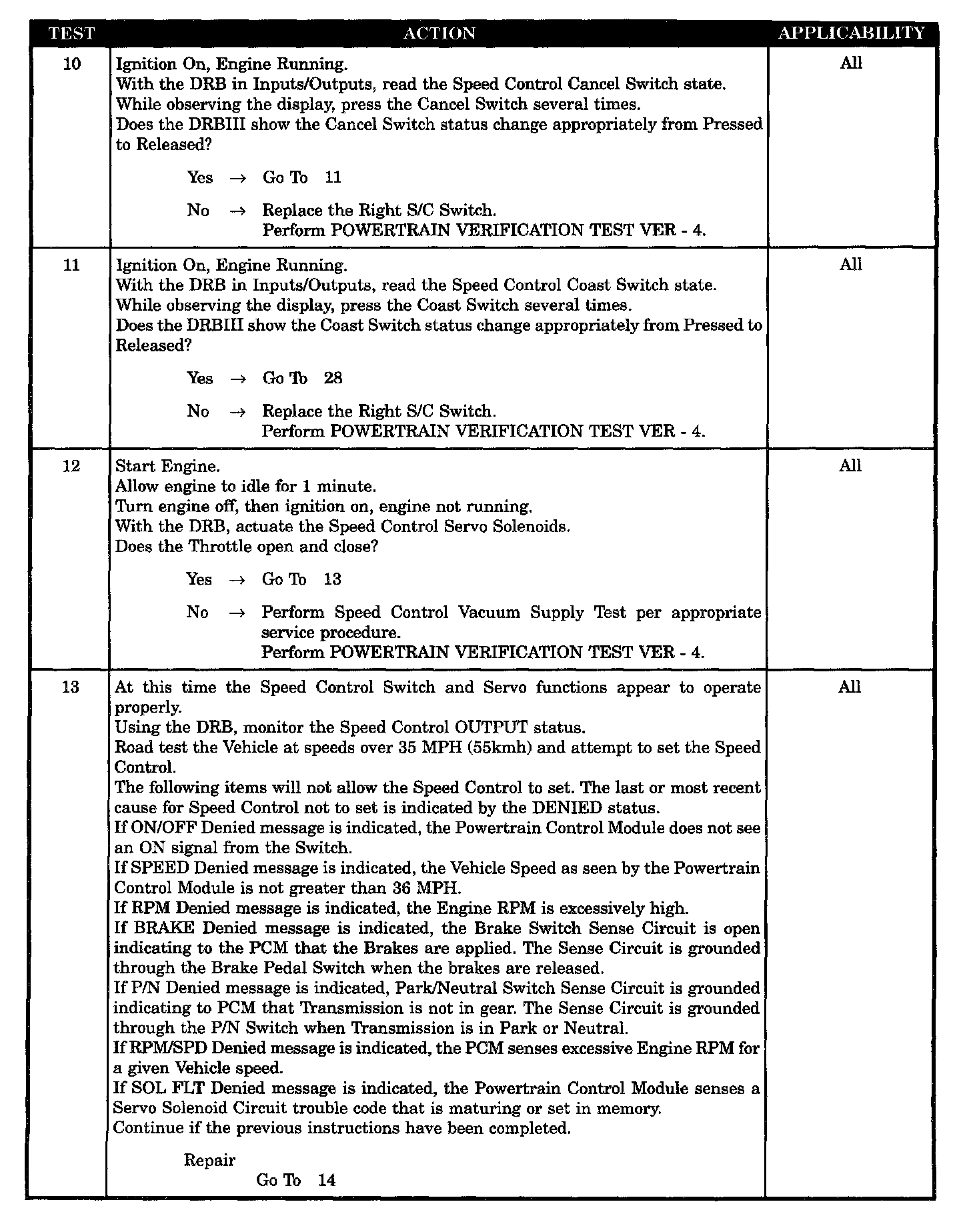

Tests 10 - 13:

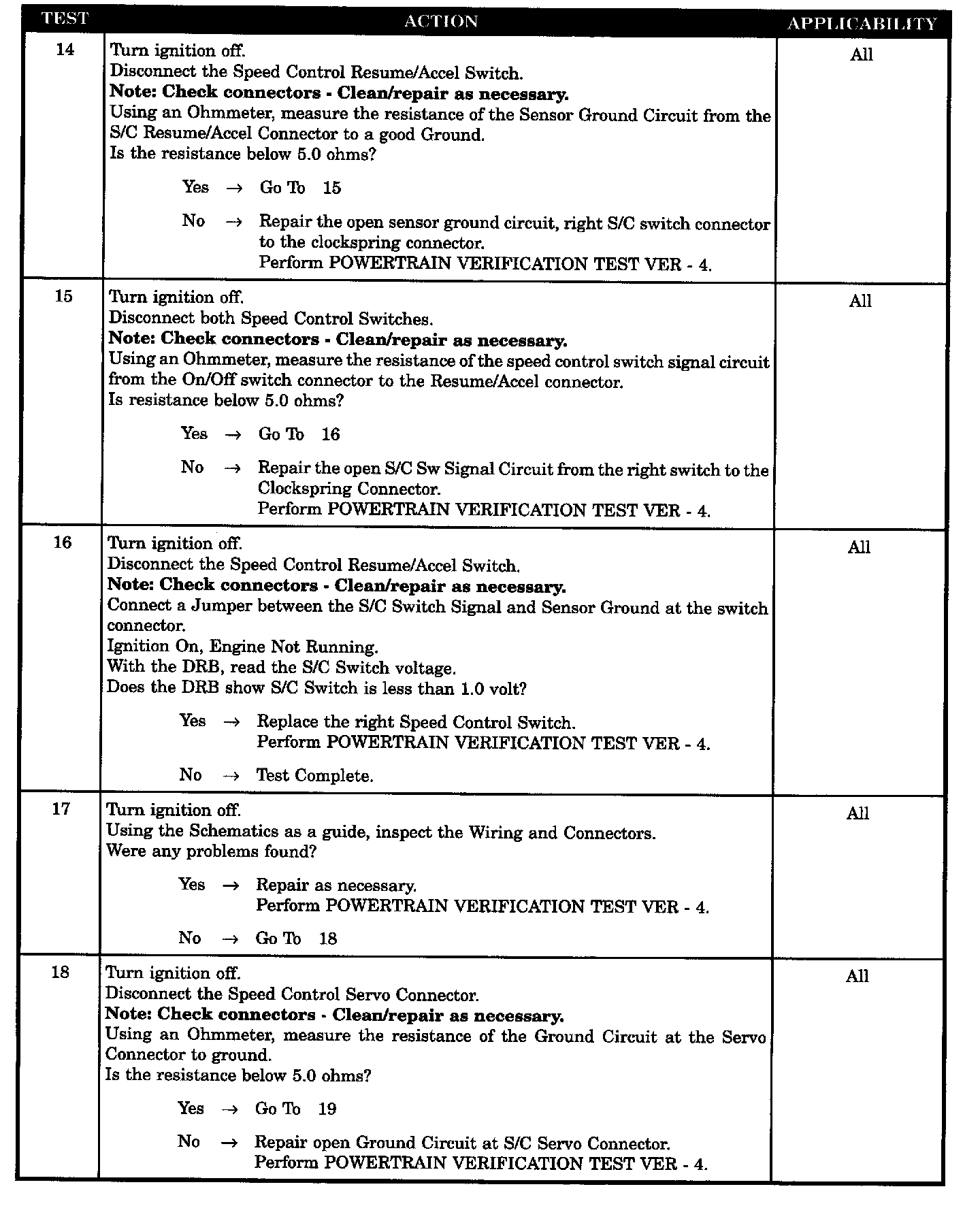

Tests 14 - 18:

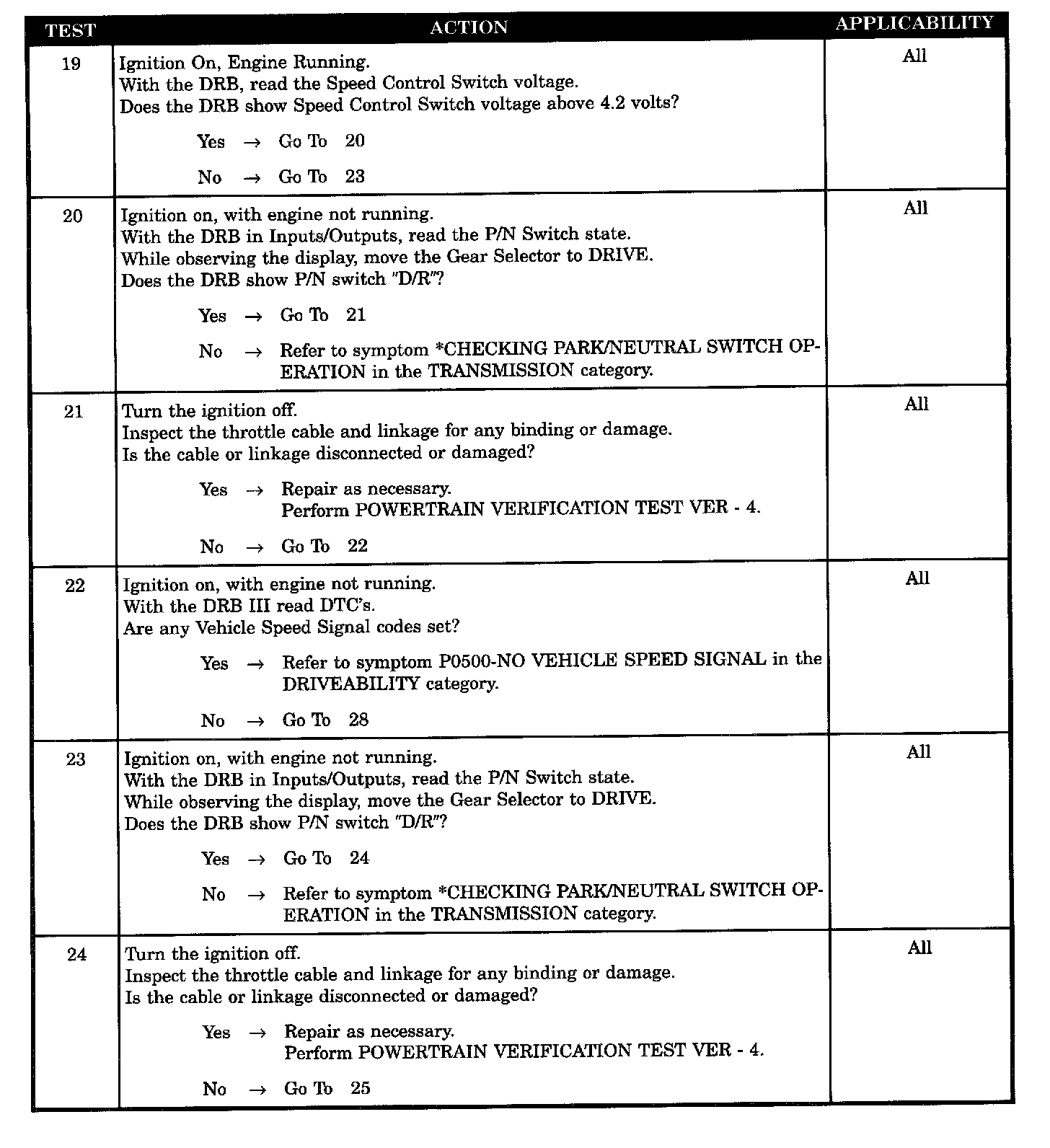

Tests 19 - 24:

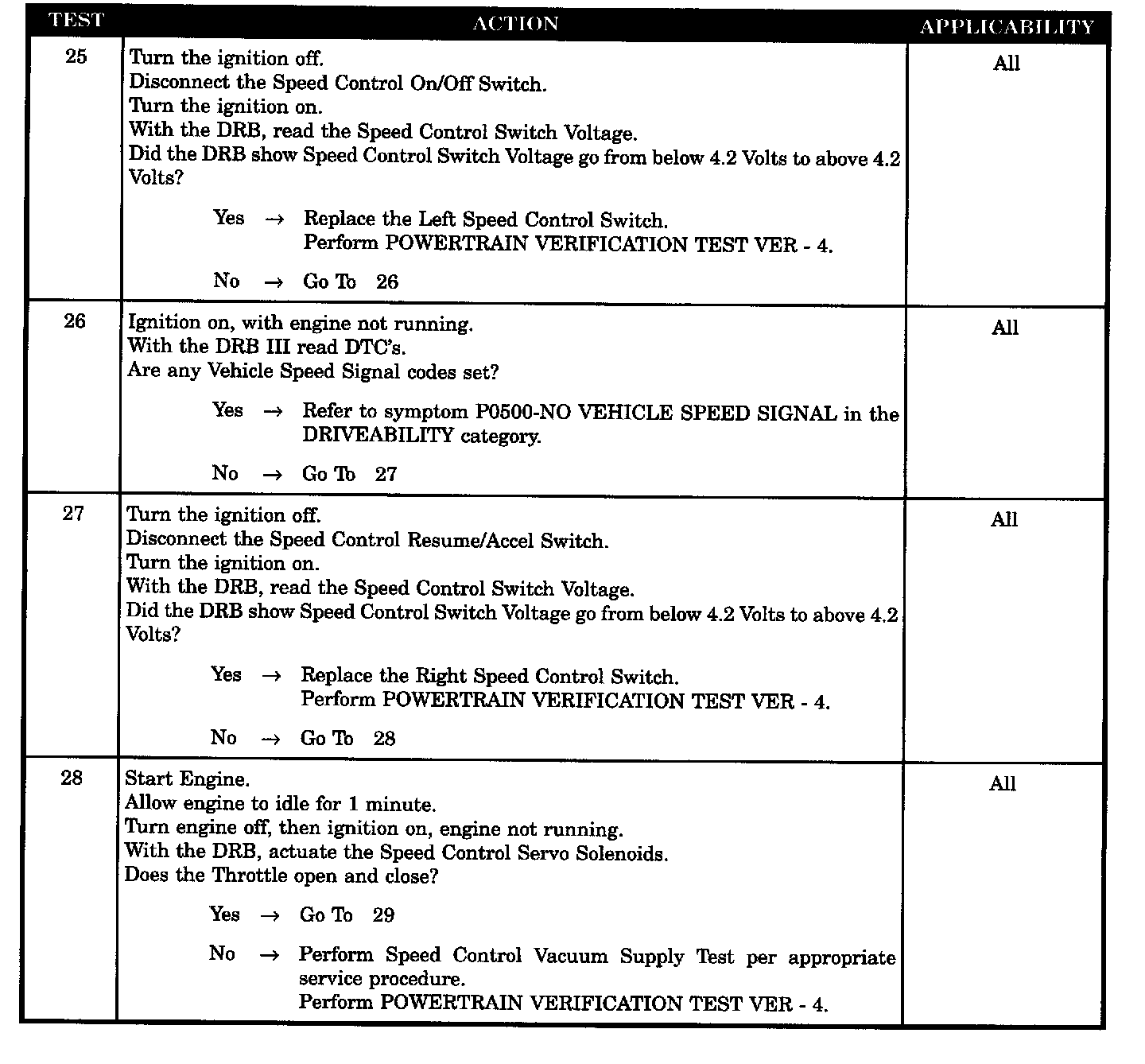

Tests 25 - 28:

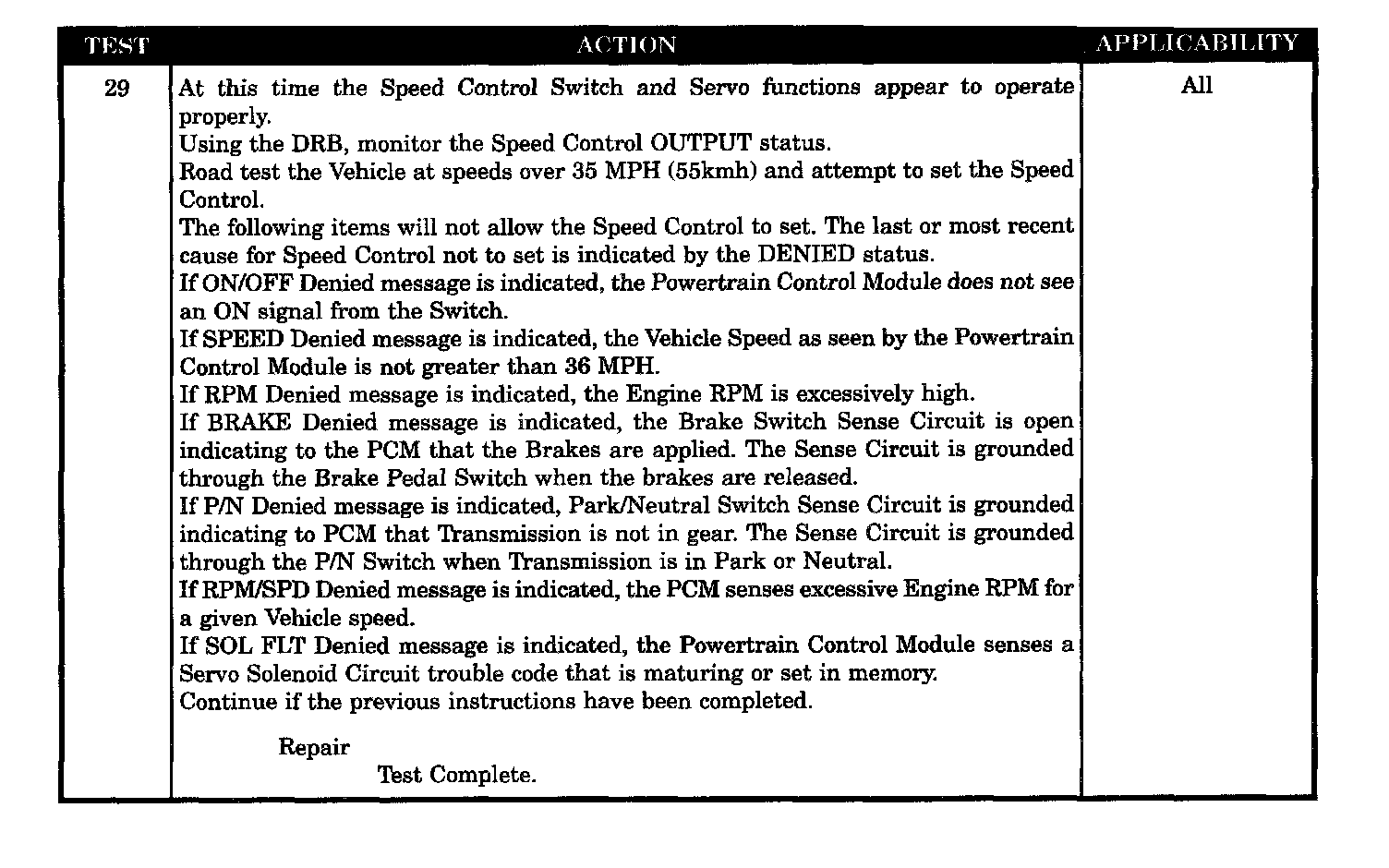

Test 29:

SYMPTOM
CHECKING SPEED CONTROL OPERATION WITH NO DTC'S PRESENT

POSSIBLE CAUSES
- Ground circuit at S/C servo connector open
- Ground circuit to S/C RESUME/ACCEL switch connector open
- S/C switch signal circuit to clockspring connector open
- DRB does not show set switch "pressed" or "released"
- S/C wiring harness observable problem
- CANCEL switch
- COAST switch
- Throttle cable observable problem
- Throttle opens and closes
- S/C ON/OFF switch stuck
- S/C RESUME/ACCEL switch
- S/C RESUME/ACCEL switch stuck
