Clutch: Adjustments

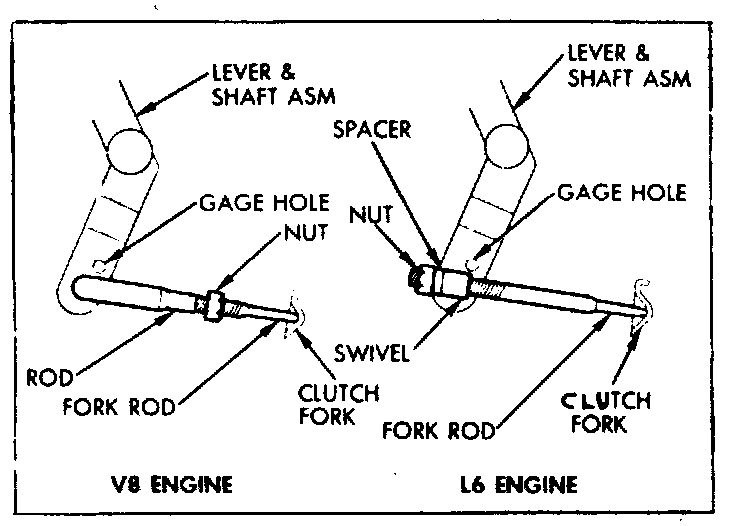

Figure 1 (1980-81 Camaro, Firebird, And Malibu):

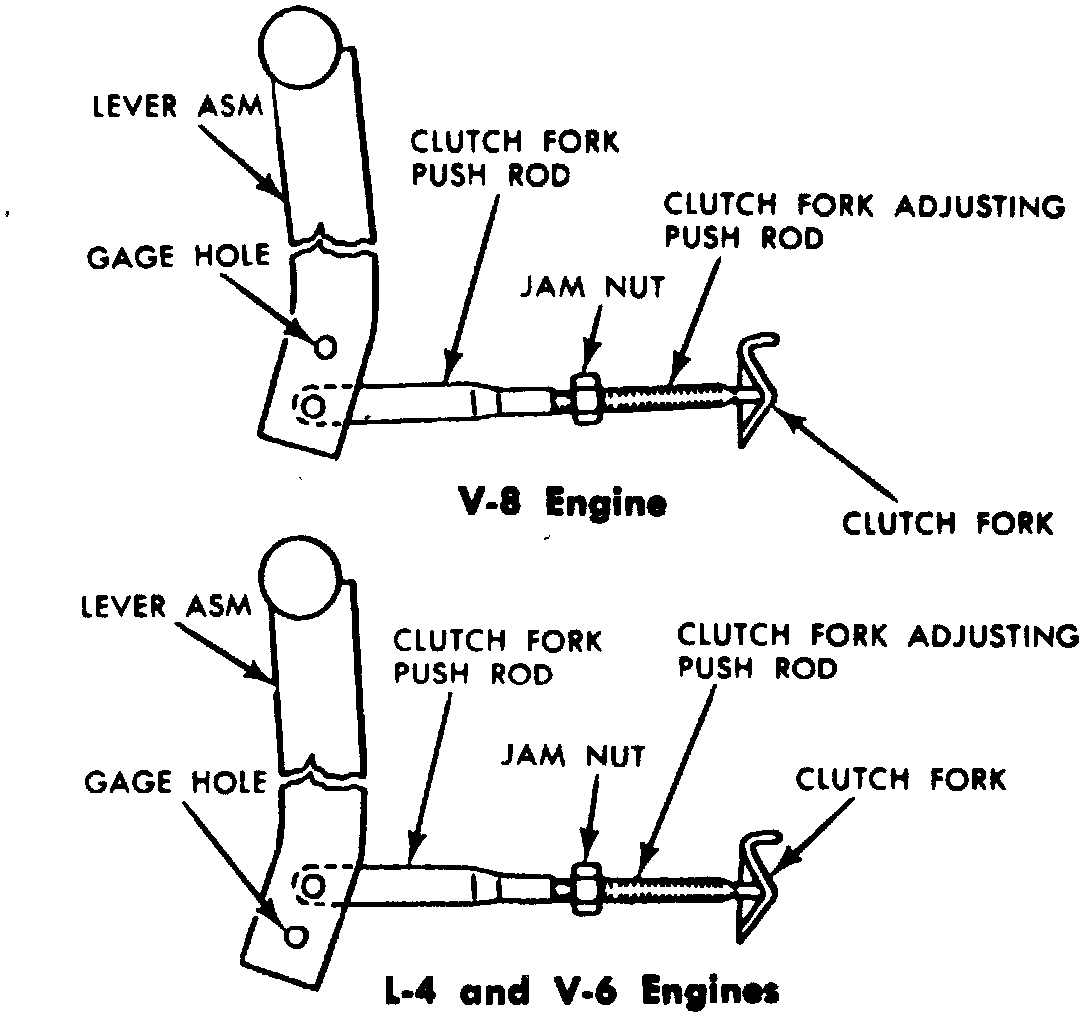

Figure 2 (1982-83 Camaro):

1. Disconnect return spring at clutch fork.

2. Rotate clutch lever and shaft assembly until pedal is against rubber bumper on dash brace.

3. Push outer end of clutch fork rearward until throwout bearing lightly contacts pressure plate fingers.

4. Install push rod in gauge hole and increase length until all lash is removed, Figs. 1 and 2.

5. Remove swivel or rod from gauge hole and insert into lower hole on lever. Install retainer and tighten lock nut being careful not to change rod length.

6. Reinstall return spring and check pedal free travel:

^ 1982-83 Camaro & Firebird 0.575 to 1.175 inches.

^ 1980-81 Camaro & Firebird 7/8 to 1 7/16 inches.

^ 1980-81 Malibu 11/16 to 1 1/4 inches.
