P/S Cooler Line - Leaks
Number 84-3-17 Date 12/84Subject: P/S COOLER LINE LEAK - 1983-84 FIREBIRD WITH 5.0L (L69) ENGINE
Some 1983-84 Firebirds equipped with the 5.0L V8 engine (L69) may exhibit a power steering oil cooler line leak where the short rubber hose is clamped to the pipe at the steering gear end. The leak normally occurs when starting a cold engine at temperatures below 0~F.

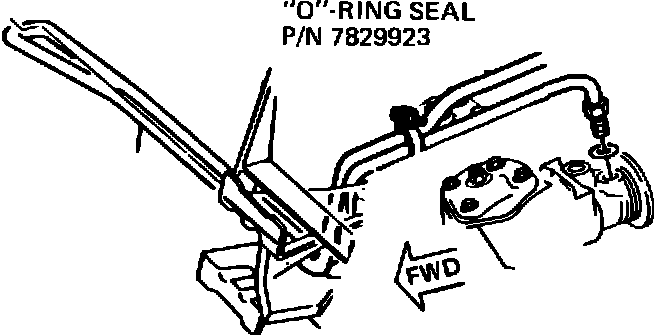

FIGURE 2:
Vehicles that experience a leak at the short hose area (see Figure 1) may be repaired by installing a new pipe assembly, P/N 14089439.
1. Disconnect negative battery cable.
2. Disconnect left hand air cleaner inlet duct from radiator support.
3. Slide steering coupling shield up steering shaft for access to cooler pipe fitting.
4. Remove cooler pipe fitting from steering gear.
5. Remove P/S pump hose from the outlet end of the cooler pipe.
6. Raise vehicle on hoist.
7. Remove two (2) screws that retain cooler pipe to lower radiator support.. Then retain cooler pipe to lower
8. Lower vehicle.

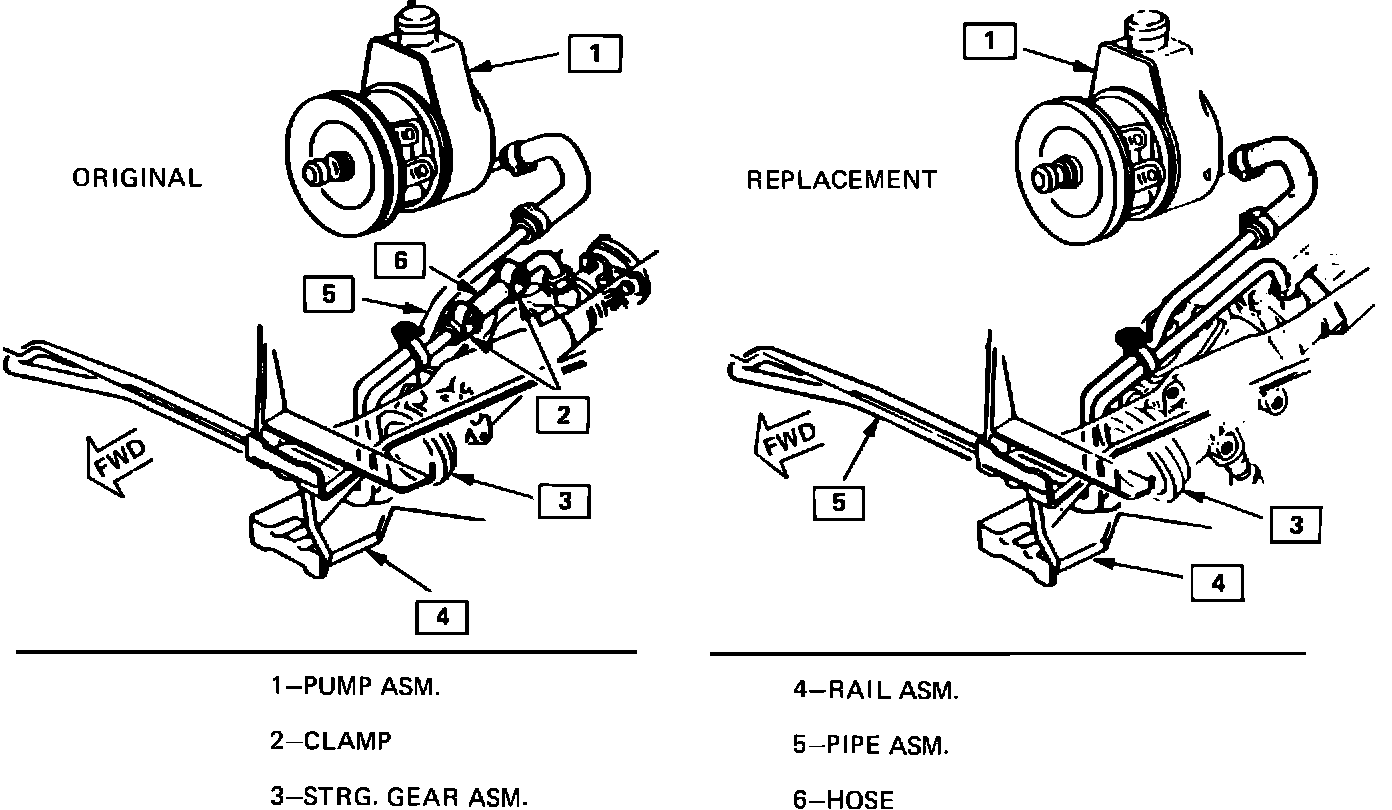

FIGURE 1:
9. Install new "O" ring seal, P/N 7829923, on fitting end of new pipe (see Figure 2).
10. Place cooler pipe in position and thread pipe fitting into gear. Do not tighten yet.
11. Raise vehicle on hoist.
12. Transfer the two (2) radiator support clips from old pipe. Install two (2) retaining screws and torque to 9 N-m (80 lbs.in.).
13. Lower vehicle
14. Torque fitting at gear to 27 N-m (20 lbs.ft.).
15. Transfer cooler pipe clip from the oil pipe. Position clip on new pipe as shown in illustration and torque to 9 N-m (80 lbs.in.).
16. Install return hose from P/S pump to cooler pipe with new claim, P/N 2494772 and torque to 2.3 N-m (22 lbs.in.).
17. Slide steering coupling shield back to original position.
18. Reinstall air cleaner duct to radiator support.
19. Reconnect negative battery cable.
20. Refill P/S pump, bleed system, and check for leaks.
Warranty Information
Labor Operation Number: E8940
Labor Time : .6 hours
