Ignition, Service Engine Soon Lamp & Tachometer

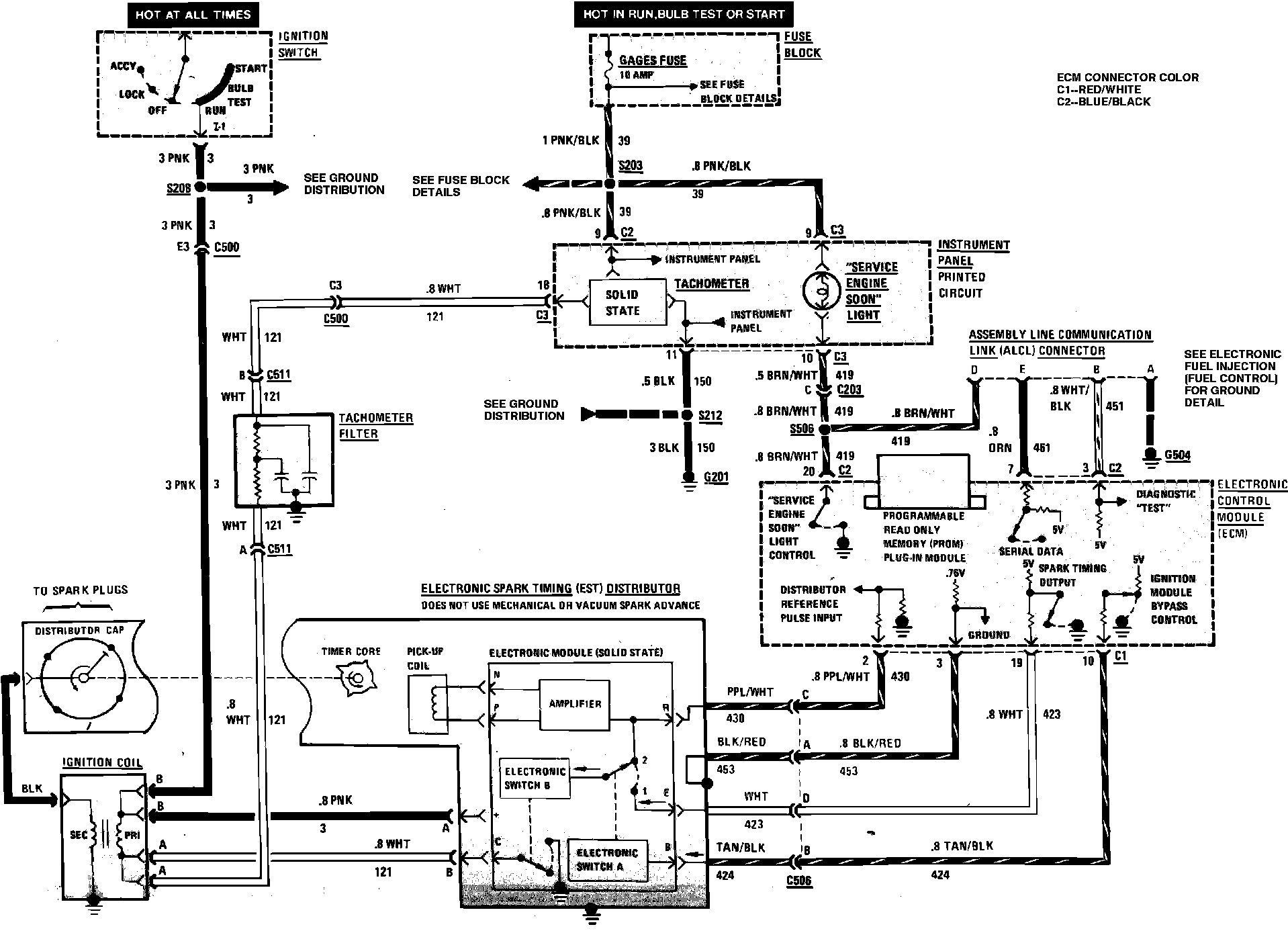

Electronic Fuel Injection Wiring Circuit (Ignition, Service Engine Soon Lamp & Tachometer):
