Check Engine Light, Ignition System & Tachometer

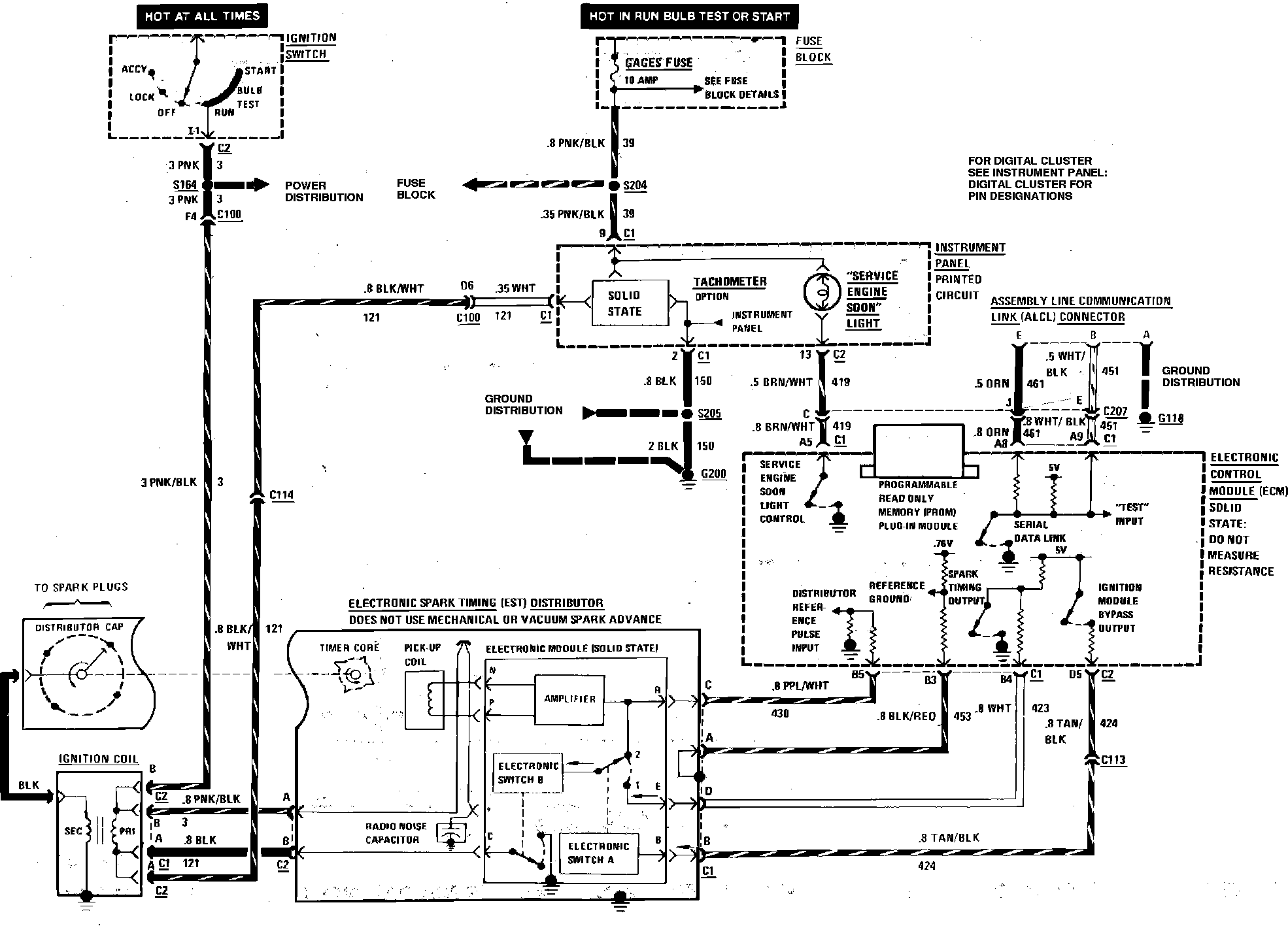

Multi-Point Fuel Injection Wiring Circuit (Check Engine Lamp, Ignition & Tachometer):
