Coolant Temperature Sensor/Switch (For Computer)
>>
Locations
>>
With Carburetor
With Carburetor

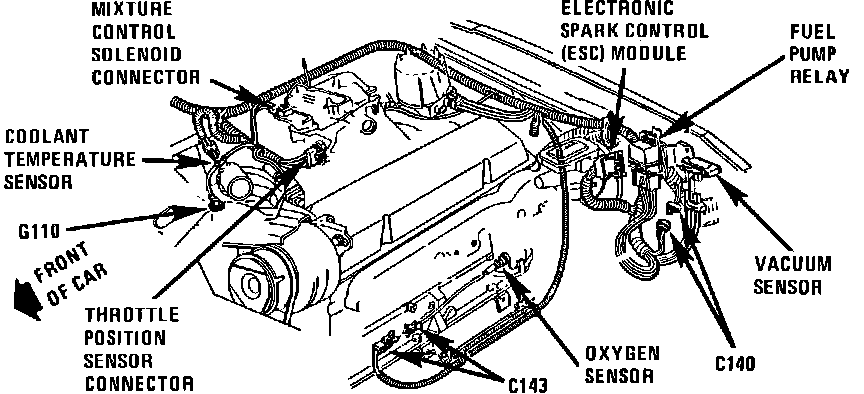

LH side of engine compartment:
Top Front Of Engine
