ECM-Ign Fuse
ECM-Ign Fuse

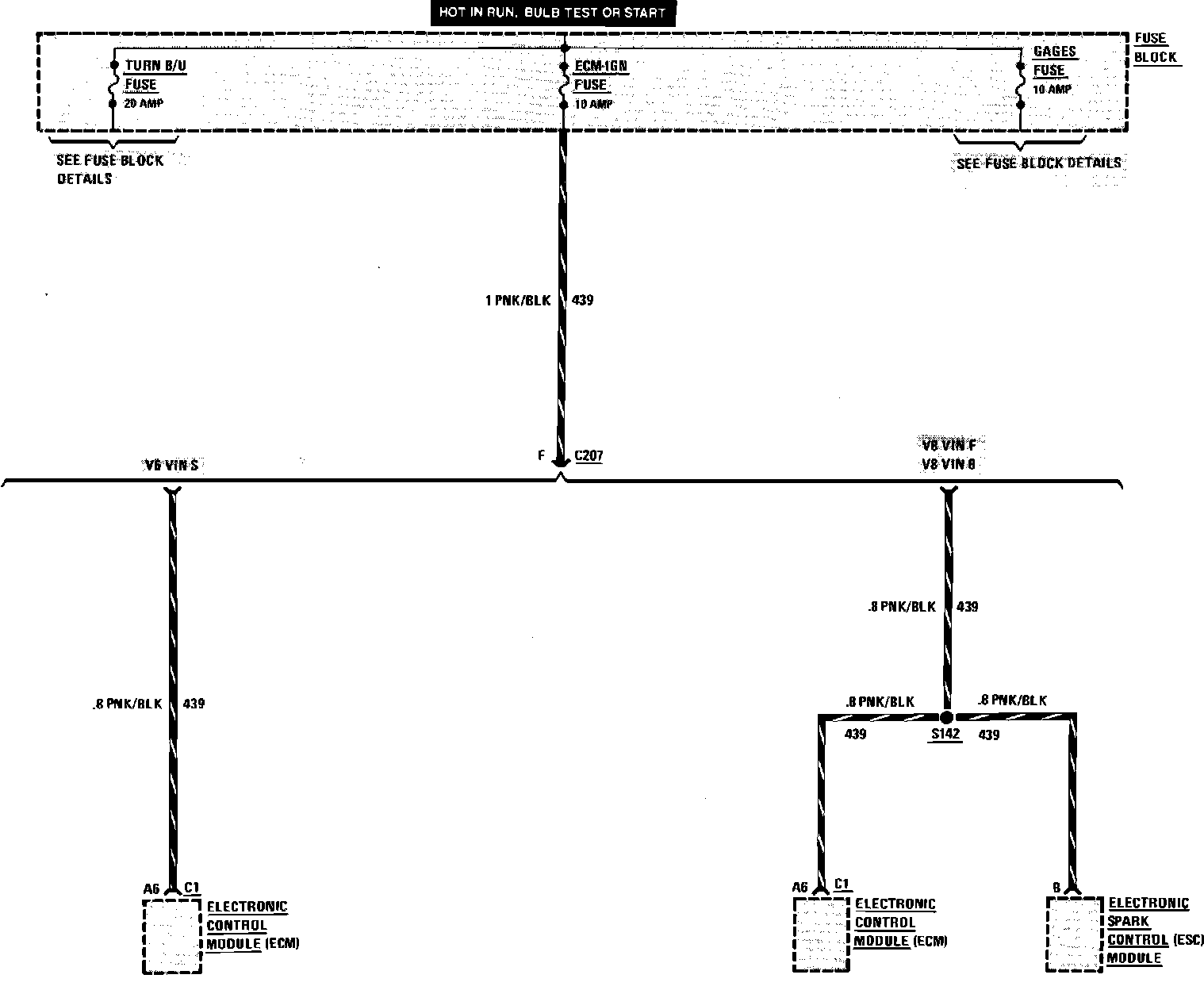

Fuse Block Details (ECM-IGN Fuse). W/V6-173/2.8L, V8-305/5.0L (VIN F) & V8-350/5.7L (VIN 8):
