Instrument Panel, Gauges and Warning Indicators
>>

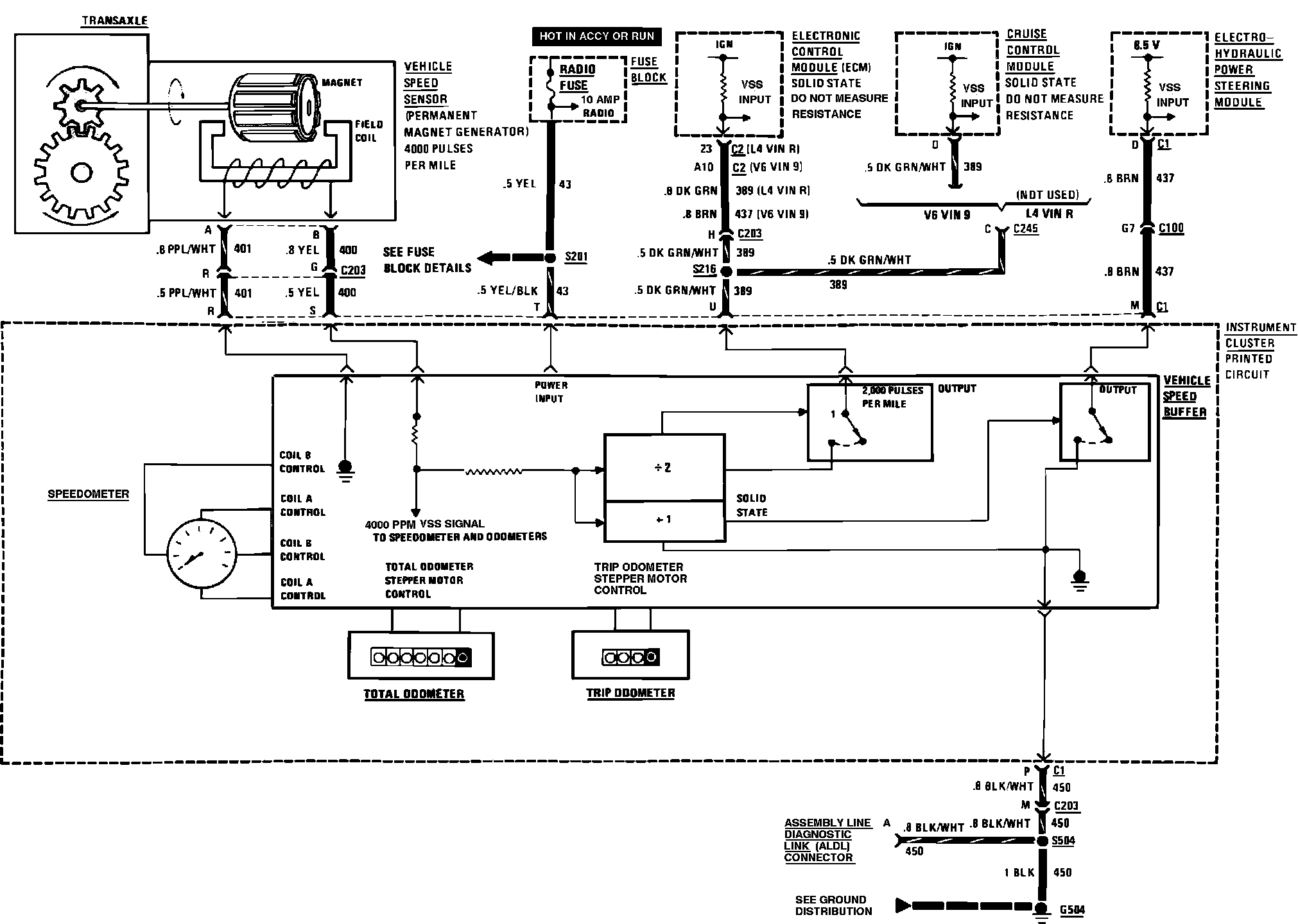

Speedometer Module
Speedometer Module
Odometer & Speedometer:
