Instrument Panel, Gauges and Warning Indicators
>>

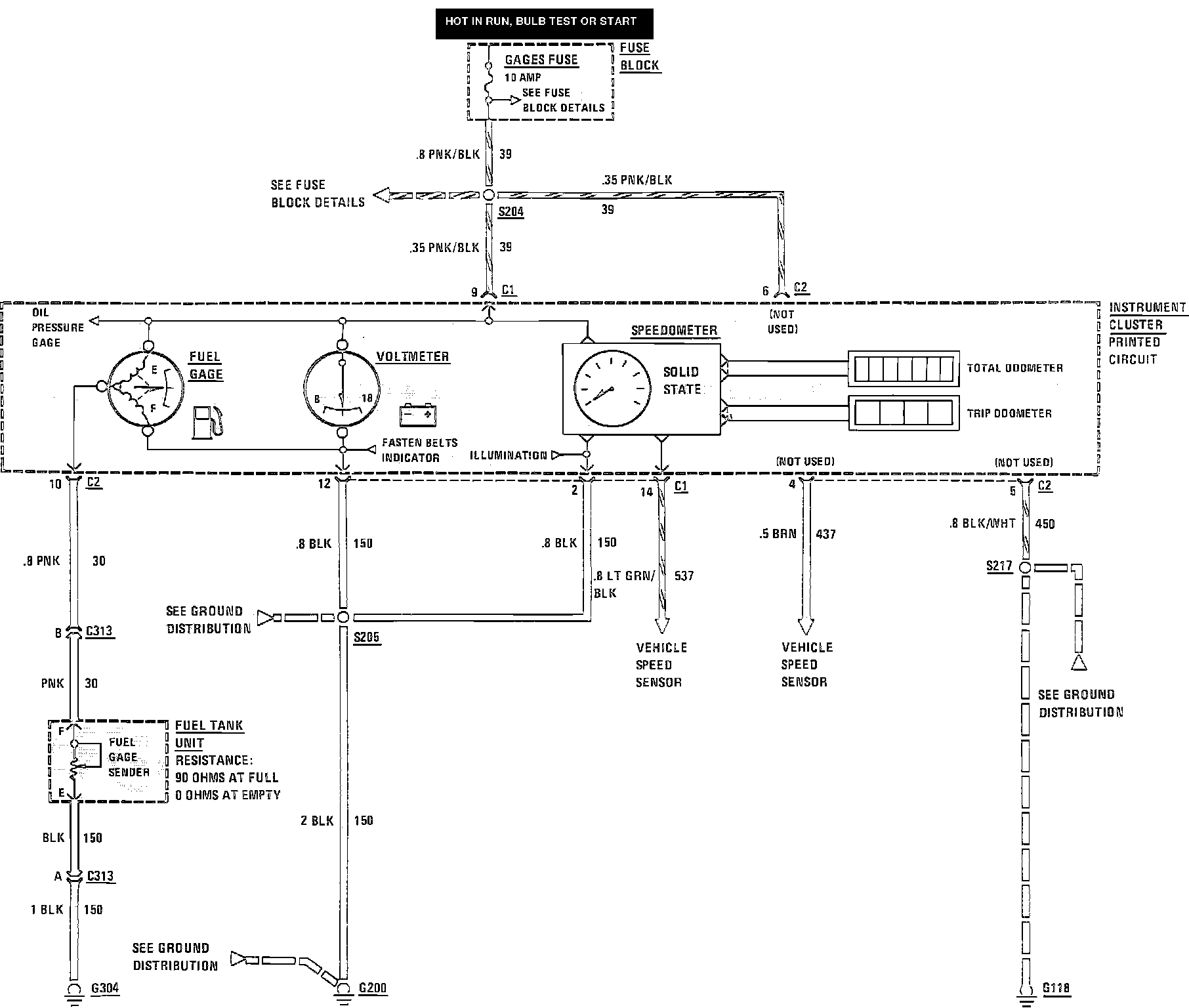

Speedometer Module
Speedometer Module
Gauges Cluster, Gauges & Speedometer:
