Pontiac
>>
1988
>>
Firebird V8-350 5.7L
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>

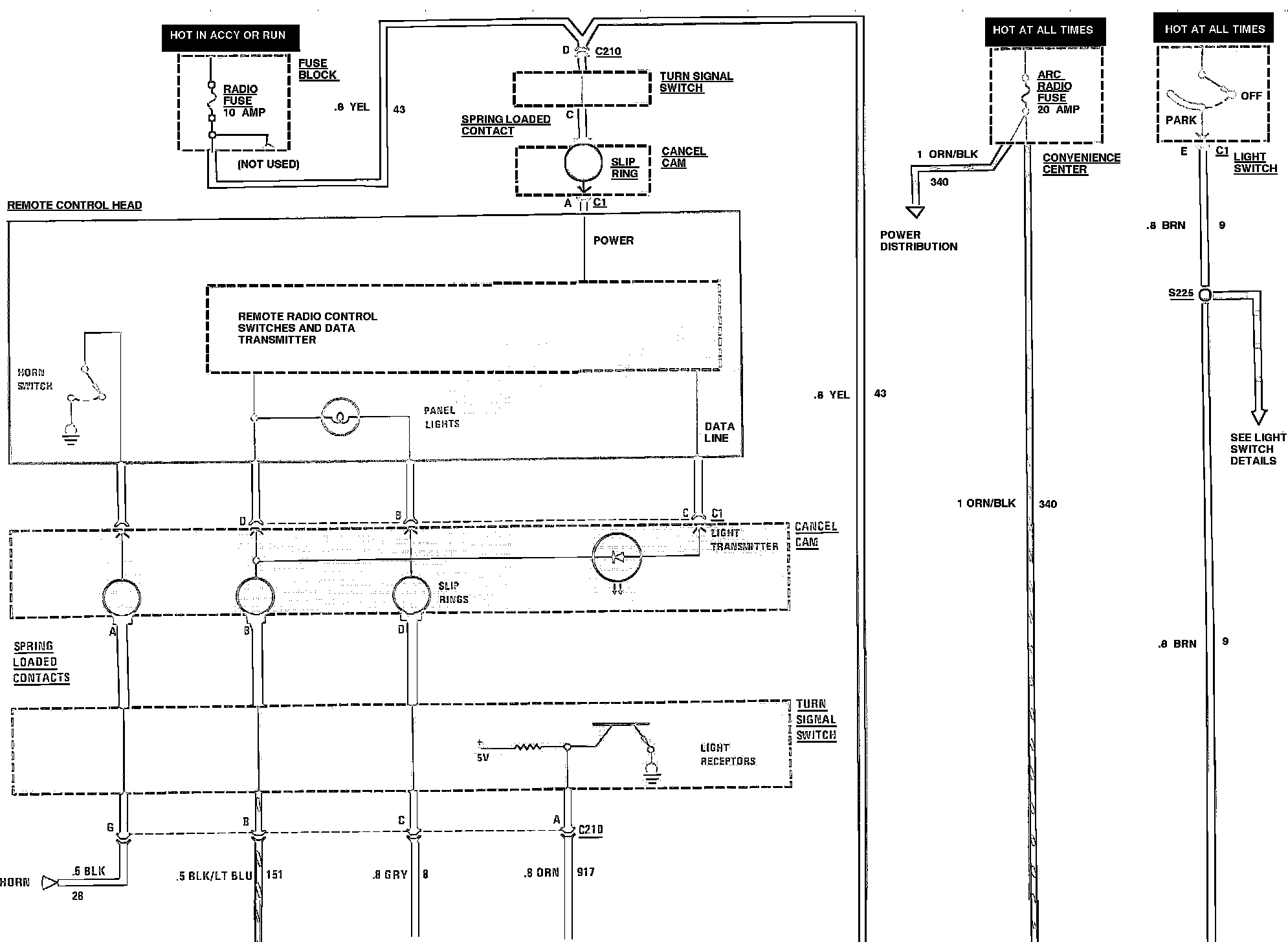

Radio, Stereo, and Compact Disc
>>
With Remote Control
>>
Less Subwoofer Amplifier
Less Subwoofer Amplifier
W/Remote Radio Control:
W/Remote Radio Control:
