Rocker Arm Assembly: Service and Repair

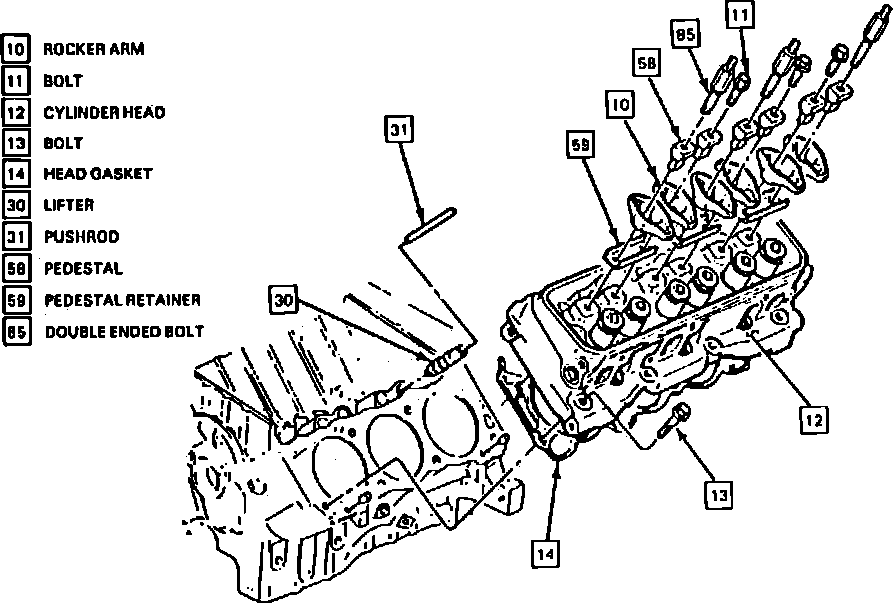

Fig. 4 Valve Train Components:

1. Remove valve covers.
2. Remove rocker arm pedestal bolts, Fig. 4. Note location of pedestal bolts for use during installation.
3. Remove pedestals, rocker arms pedestal retainers and push rods. Note location of components for use during installation.
4. Reverse procedure to install.
