Fuel Pump Prime Connector
Fuel Pump Prime Connector

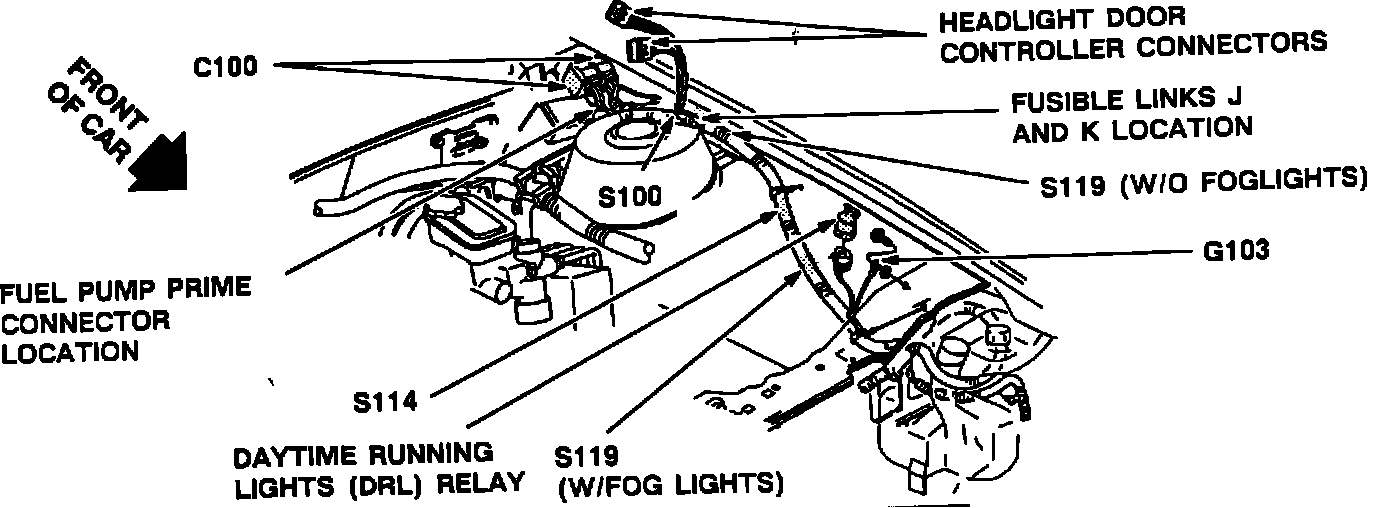

The fuel pump prime connector is located on the left side of engine compartment.
