Power Window Switch

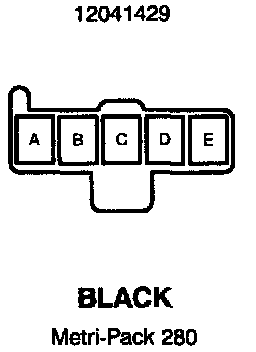

LH/RH Rear Window Switch:

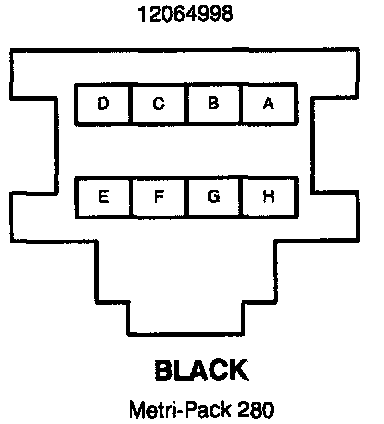

Master Switch Assembly (2 Door):

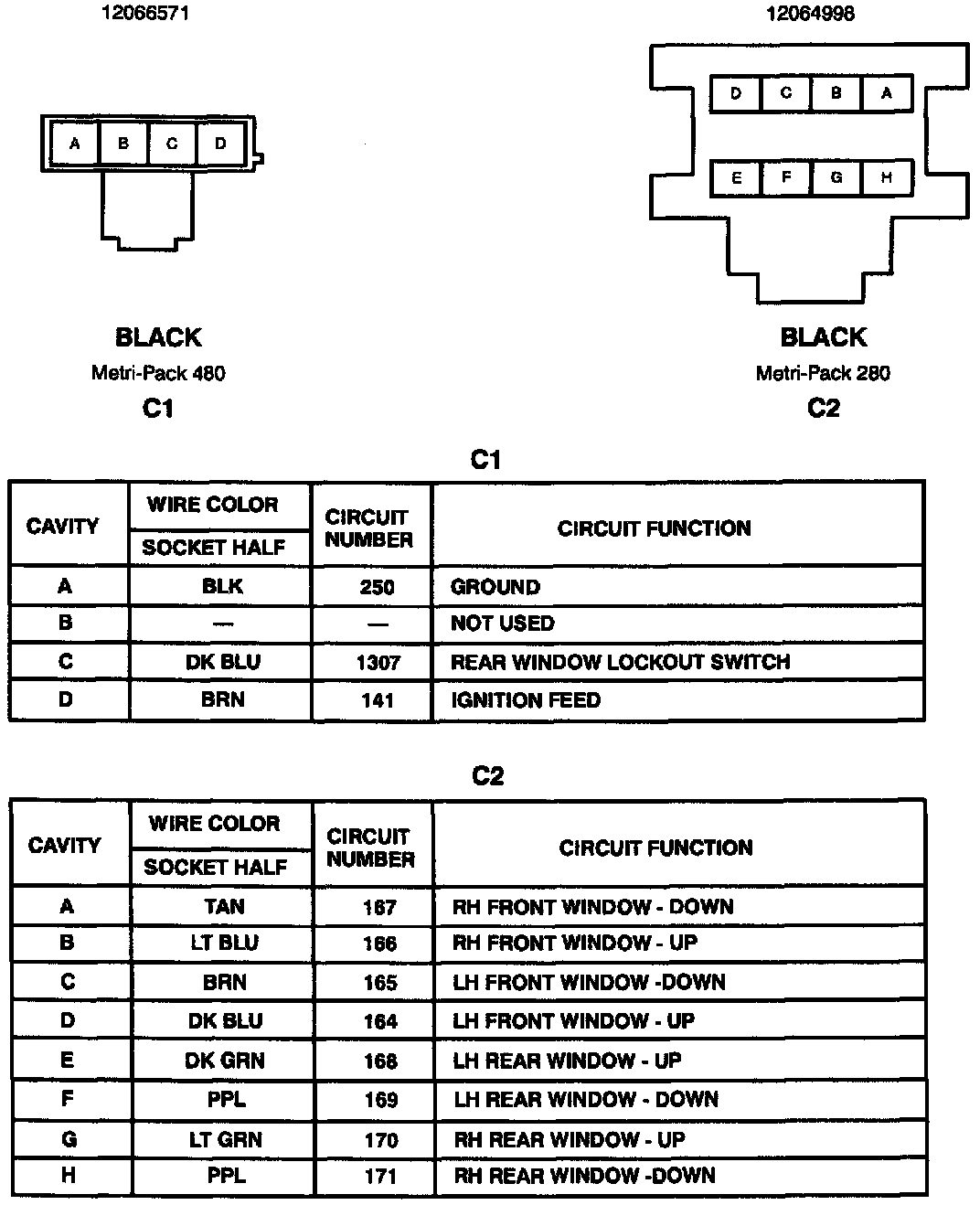

Master Switch Assembly (4 Door):
