Powertrain Control Module - PCM
Powertrain Control Module - PCM

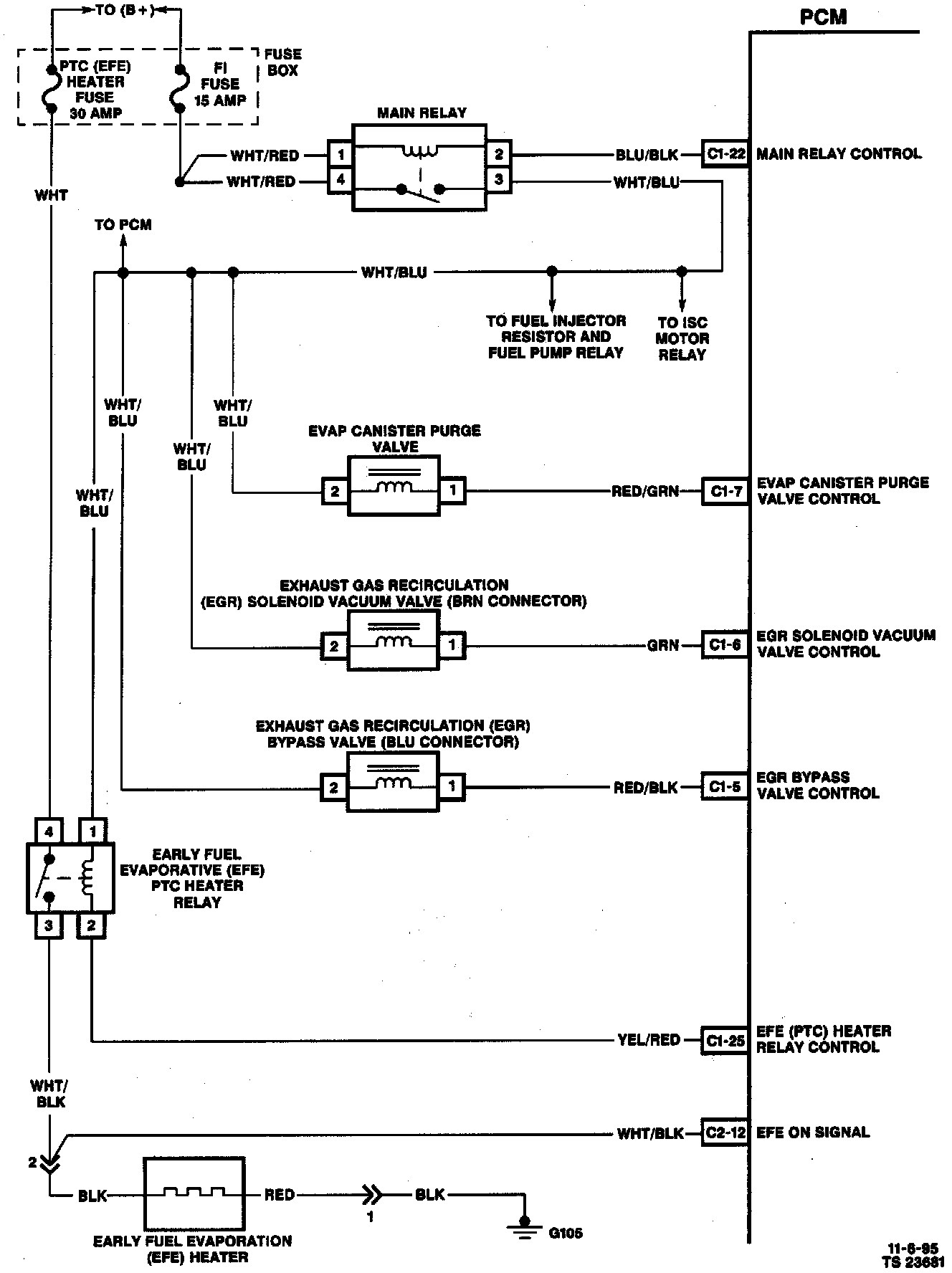

PCM Wiring Diagram (1 Of 6):

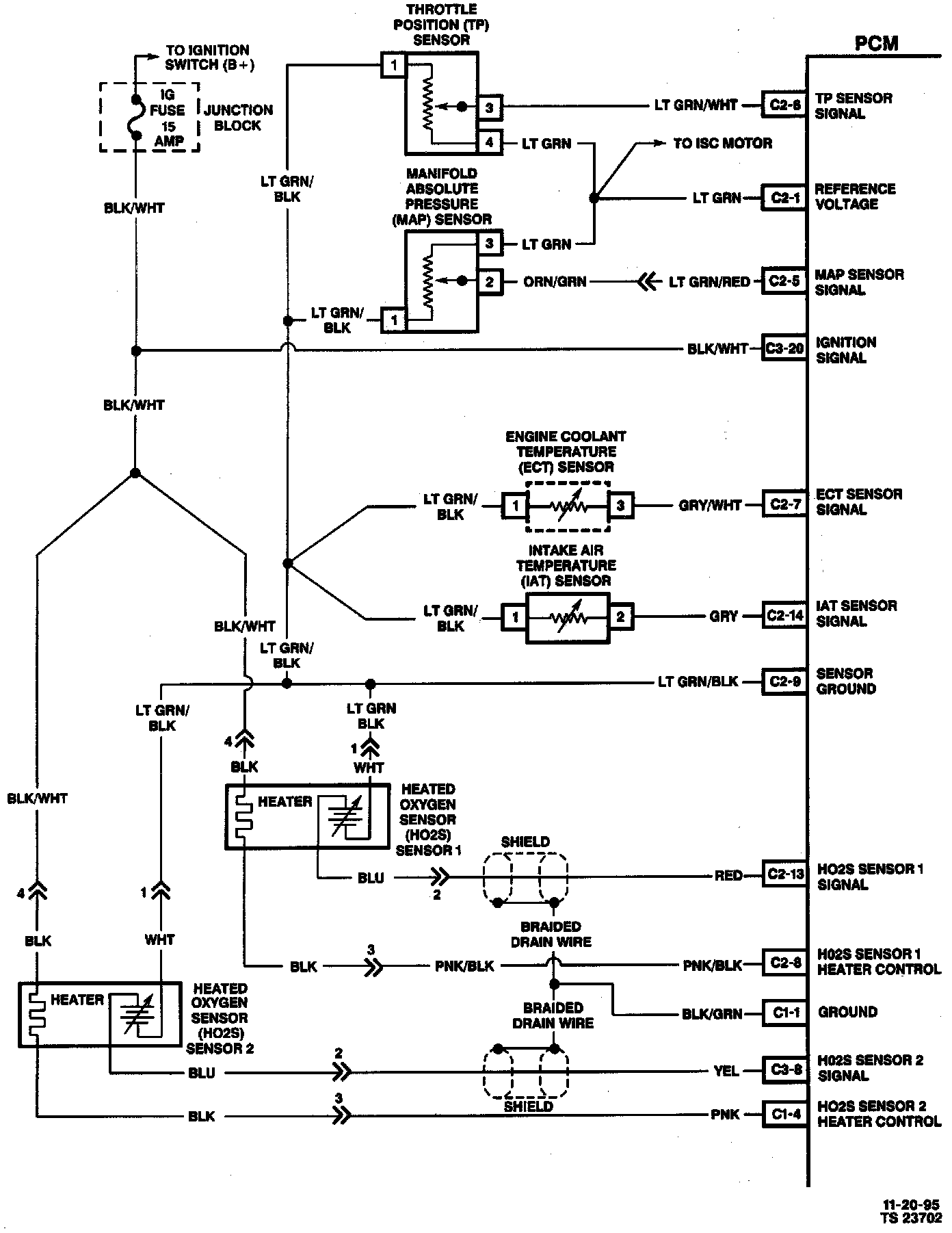

PCM Wiring Diagram (2 Of 6):

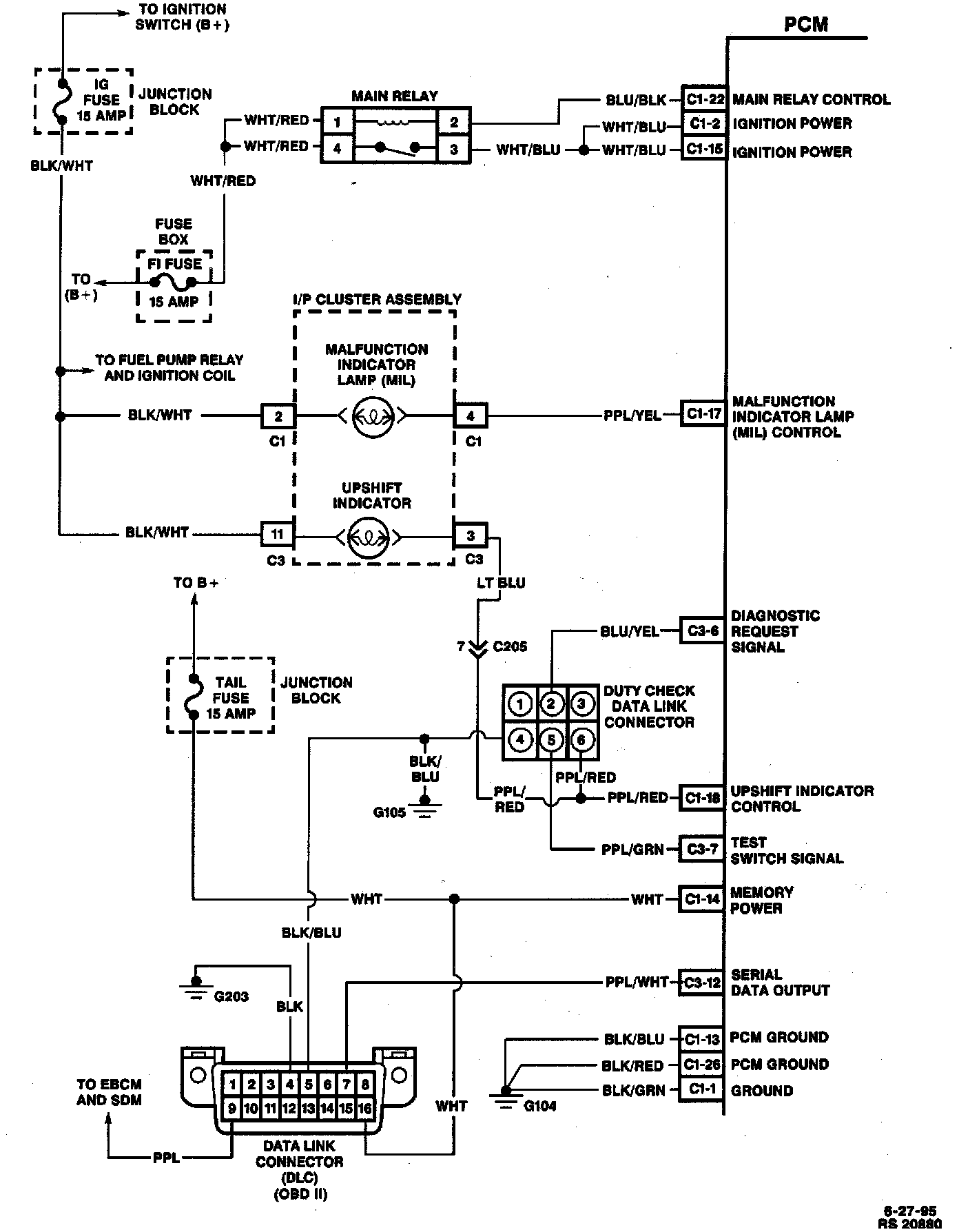

PCM Wiring Diagram (3 Of 6):

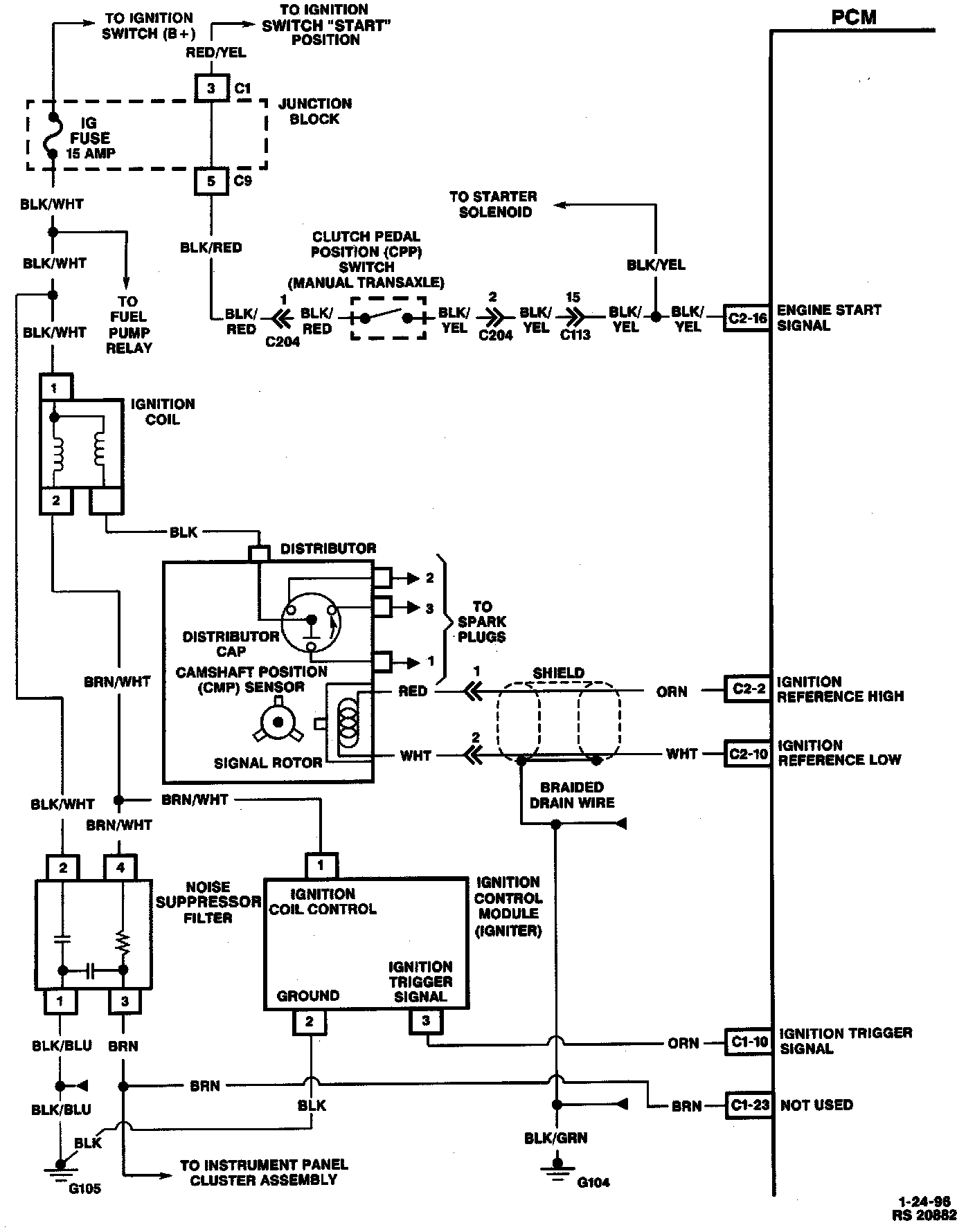

PCM Wiring Diagram (4 Of 6):

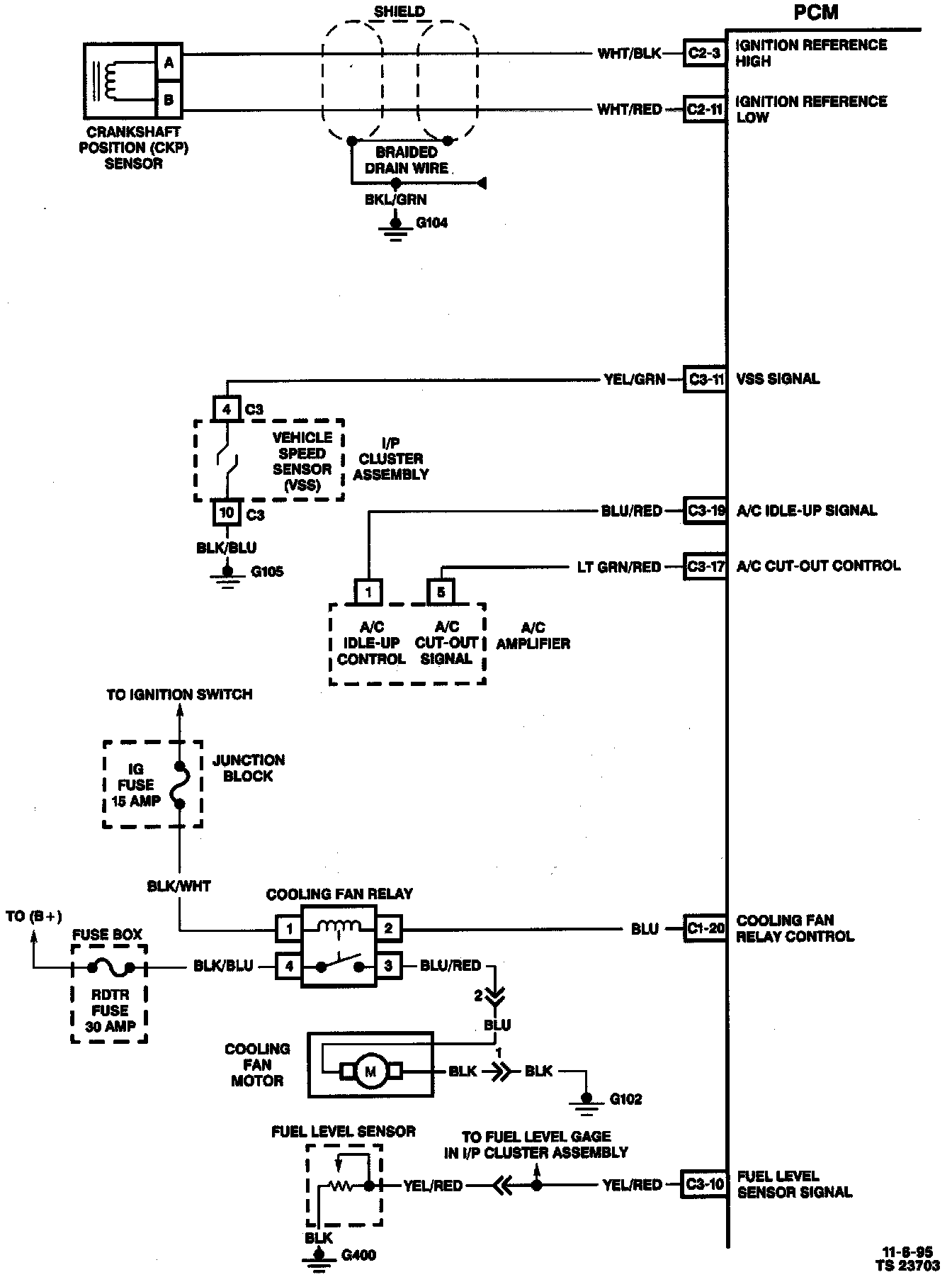

PCM Wiring Diagram (5 Of 6):
PCM Wiring Diagram (6 Of 6):
