Water Pump Belt

REMOVAL
1. Air Cleaner (ACL) from vehicle.
2. A/C compressor suction pipe bracket (if equipped).
3. Raise and suitably support vehicle.
4. Right lower splash shield.
5. A/C compressor drive belt (if equipped) by releasing tensioner pulley and removing belt from crankshaft and compressor pulleys.

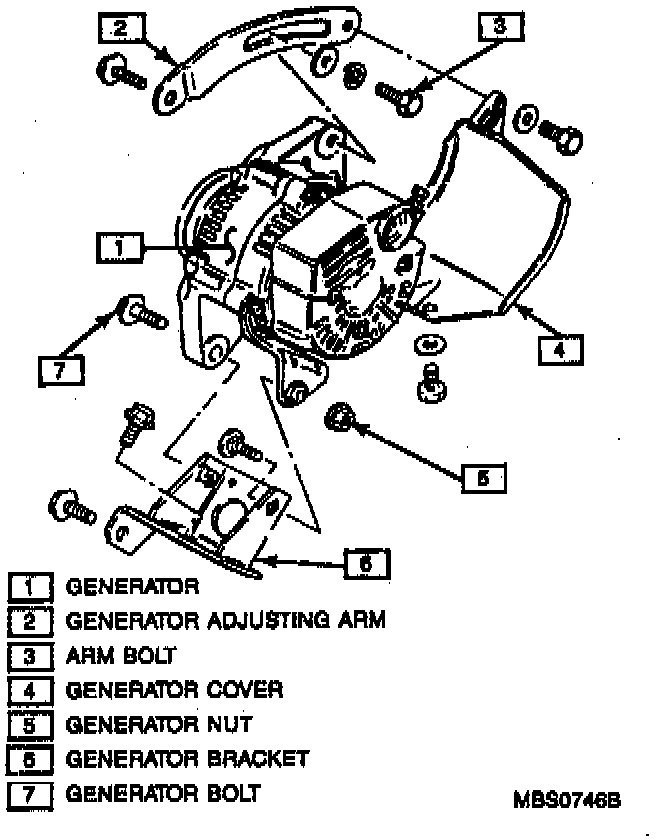

6. Lower generator cover plate.
7. Lower vehicle.
8. Loosen adjusting bolt on the upper generator mounting bracket and remove water pump/generator drive belt from vehicle.

INSTALLATION
1. Coolant pump/generator drive belt to crankshaft, water pump and generator pulleys.
2. Raise and suitably support vehicle.
3. Lower generator cover plate. Tighten lower generator cover bolts to 10 Nm (89 inch lbs.).
4. A/C compressor drive belt (if so equipped) by releasing tensioner pulley and installing belt to crankshaft and compressor pulleys.
5. Right lower splash shield.

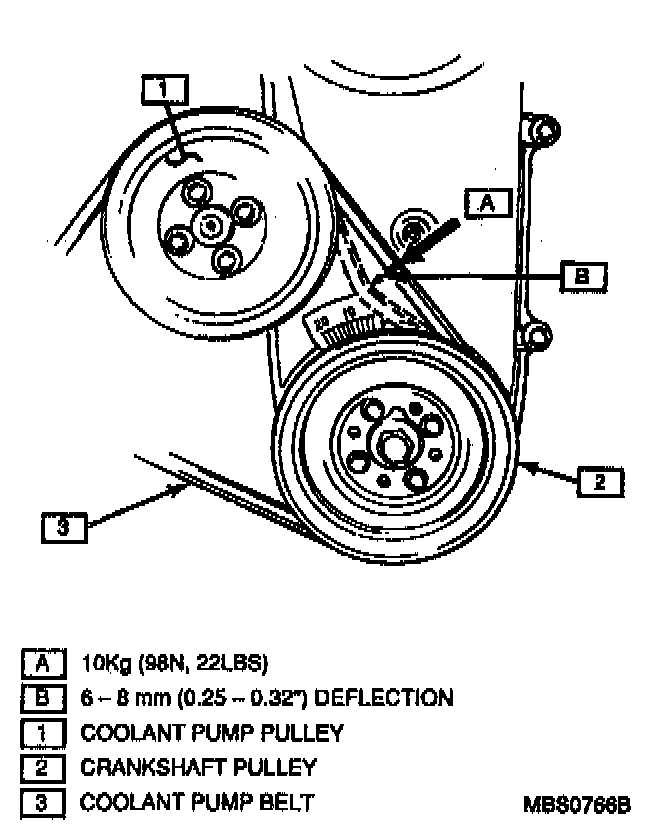

6. Lower vehicle. Adjust coolant pump/generator drive belt tension to the specifications shown. Tighten upper generator adjustment bolt to 23 Nm (17 ft. lbs.).
7. A/C compressor suction pipe bracket (if so equipped).
8. ACL to vehicle.
