Connector Views

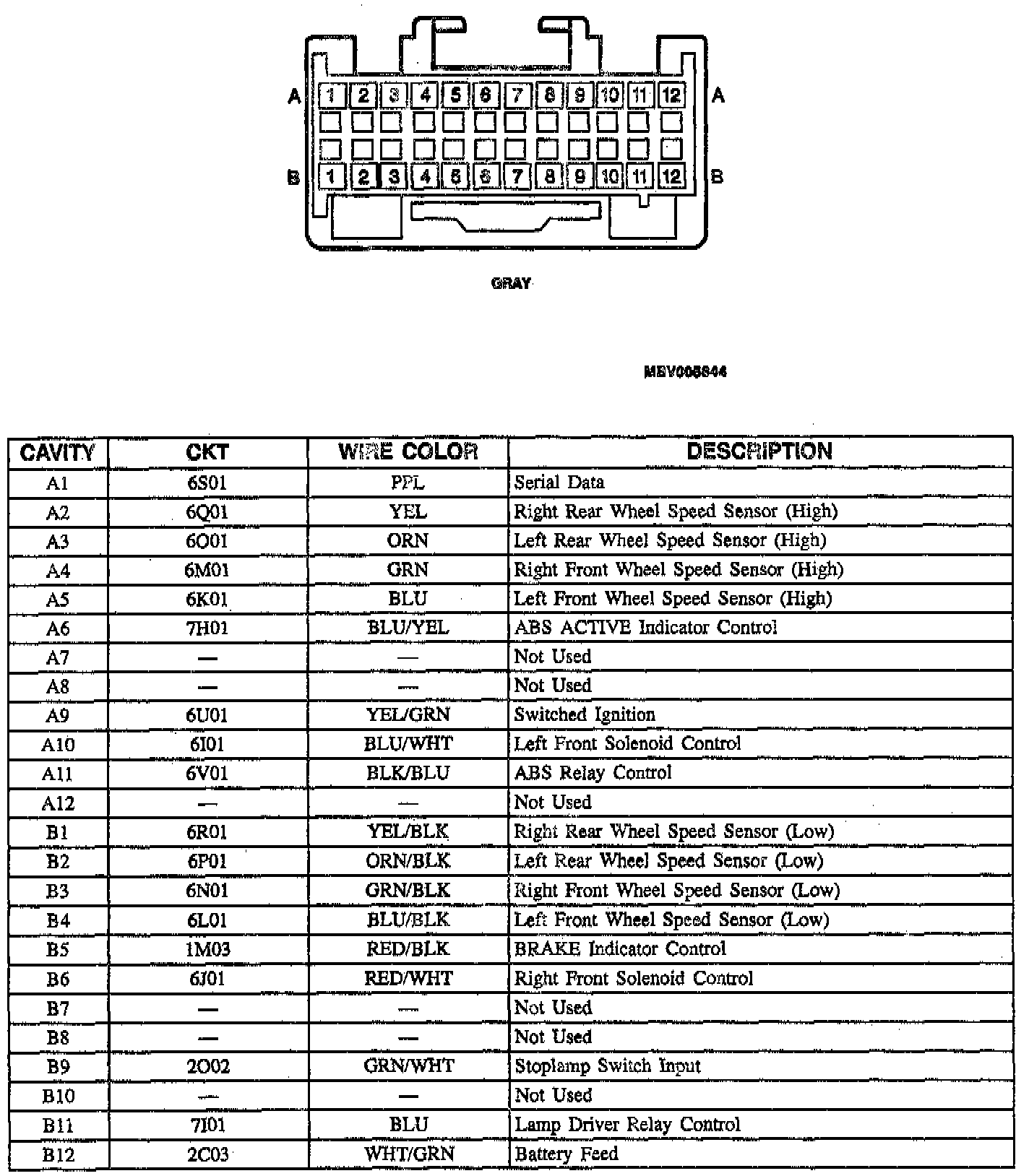

Electronic Brake Control Module Connector C1:



Electronic Brake Control Module Connector C2:
