Home >> Pontiac >> 1997 >> Firefly (CANADA) L4-1.3L >> Repair and Diagnosis >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G202

G202

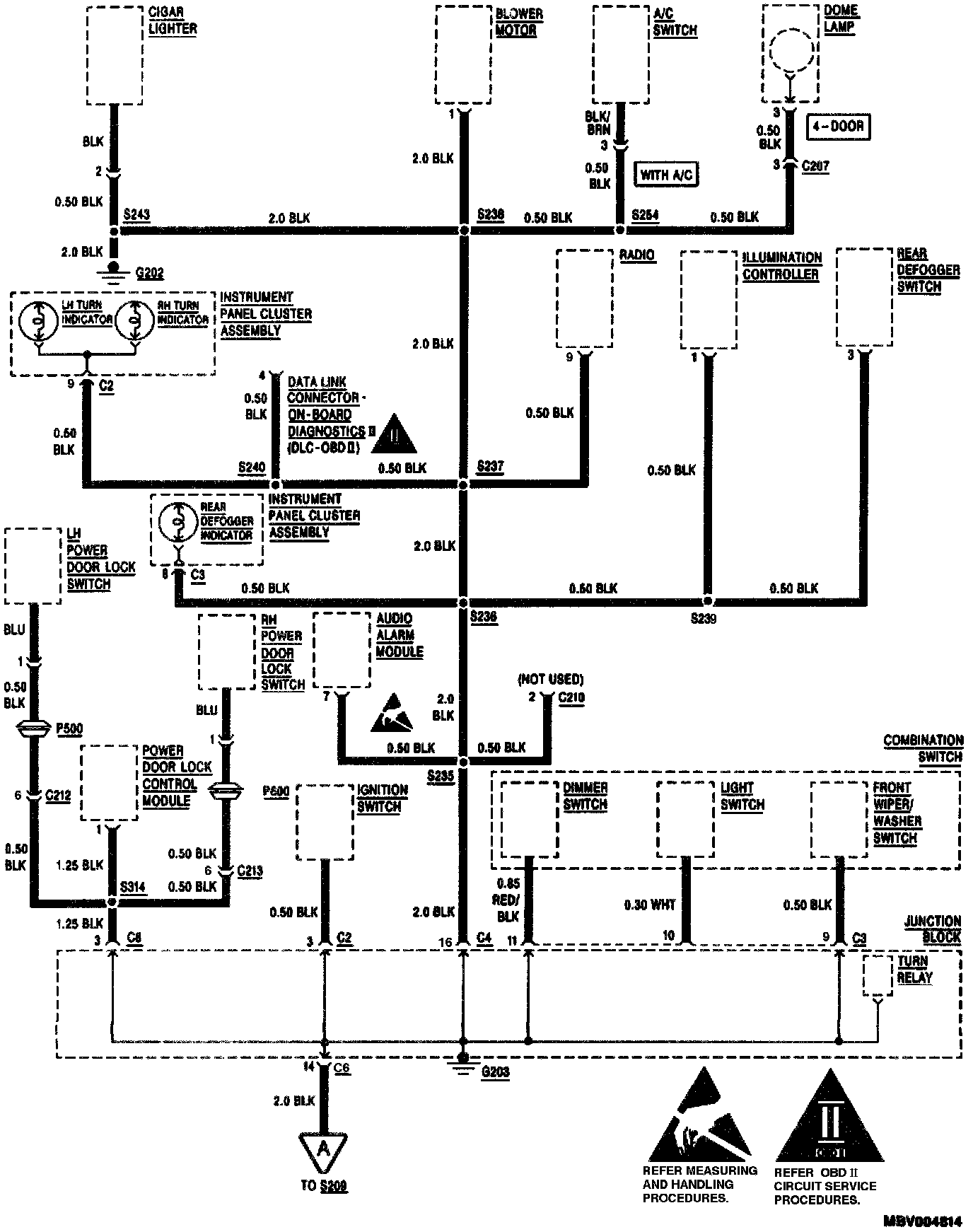

G102, G201, G202 And G203:

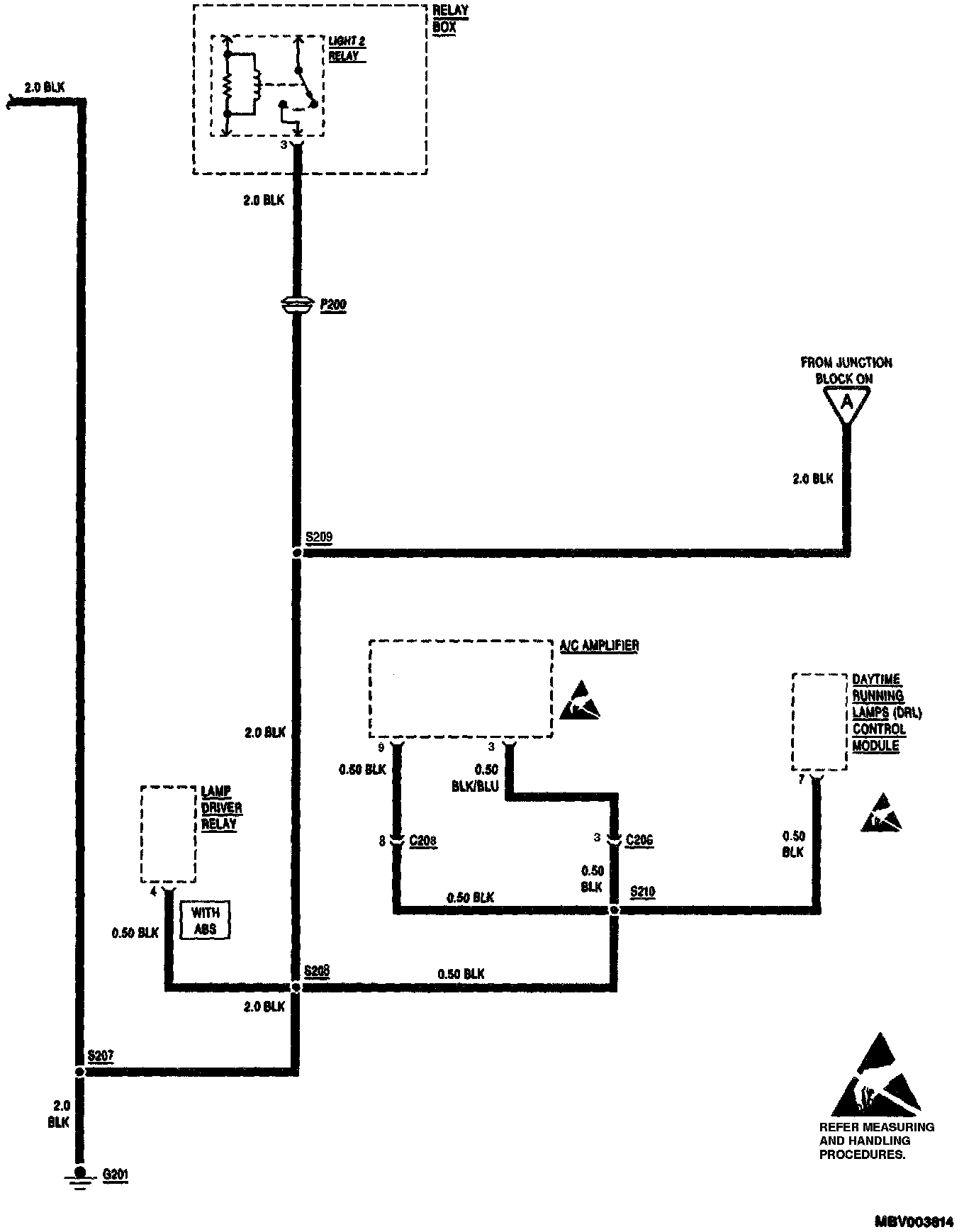

G102, G201, G202 And G203:

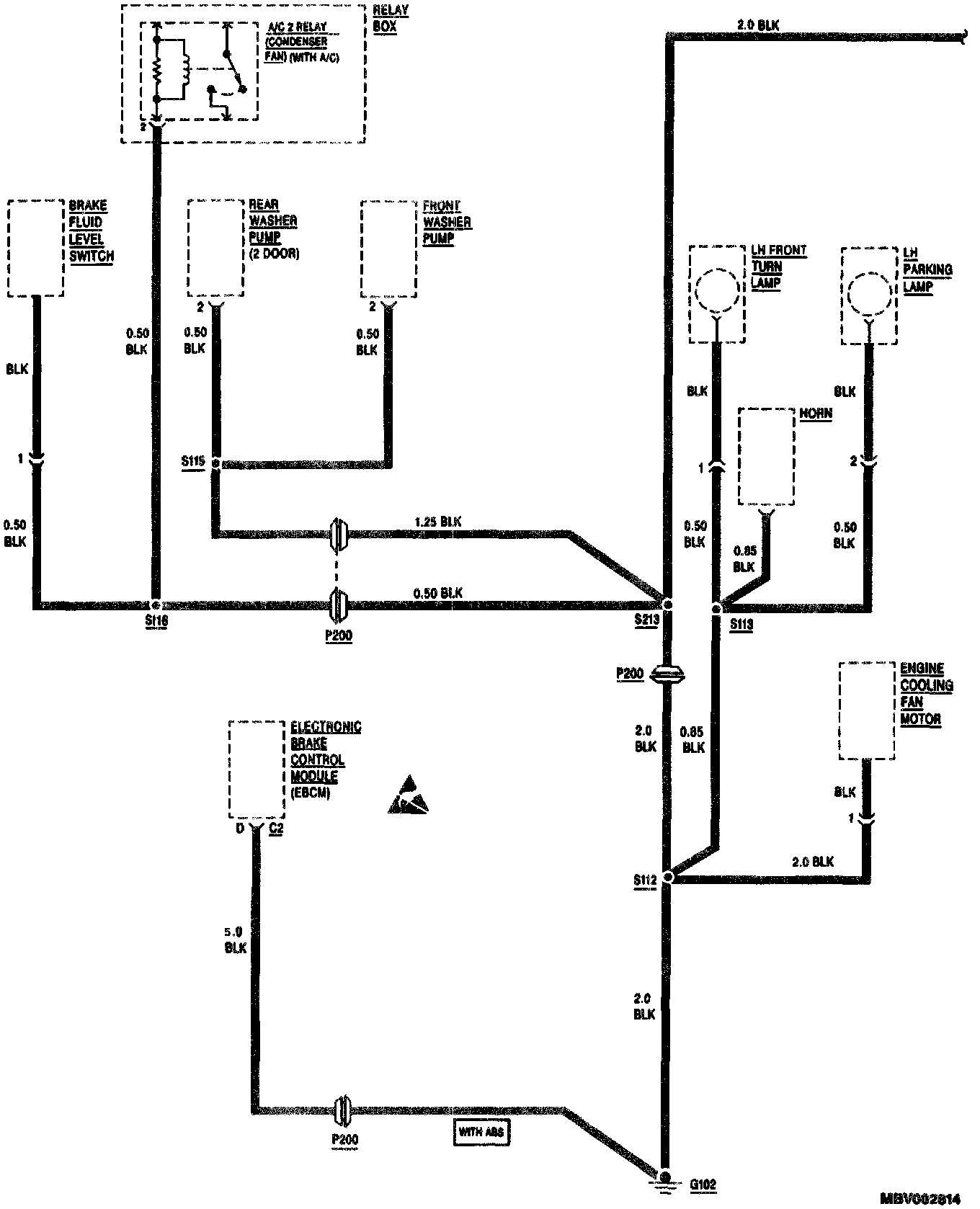

G102, G201, G202 And G203:
