Wiper Blade Assembly Replacement

Rear Wiper System:

Rear Wiper Assembly Removal:

Remove or Disconnect

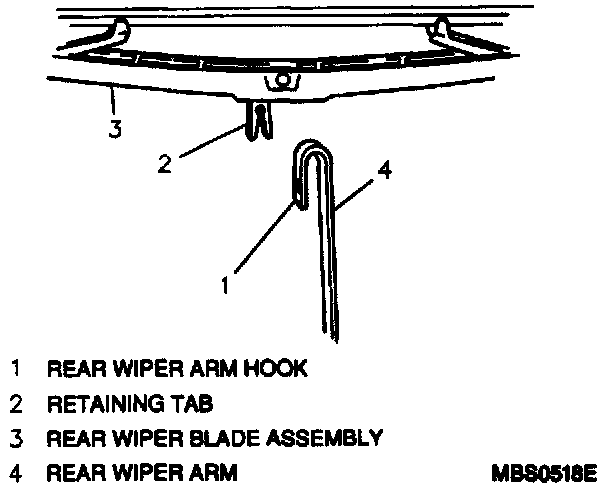

1. Depress retaining tab on rear wiper blade assembly, slide blade down rear wiper arm until it clears the wiper arm hook and then remove the blade assembly from the wiper arm.

Install or Connect
1. Rear wiper blade assembly to rear wiper arm, slide blade into the wiper arm hook until blade assembly clicks and locks into place.
