Fog/Driving Lamp Switch: Service and Repair

Description:

Remove or Disconnect

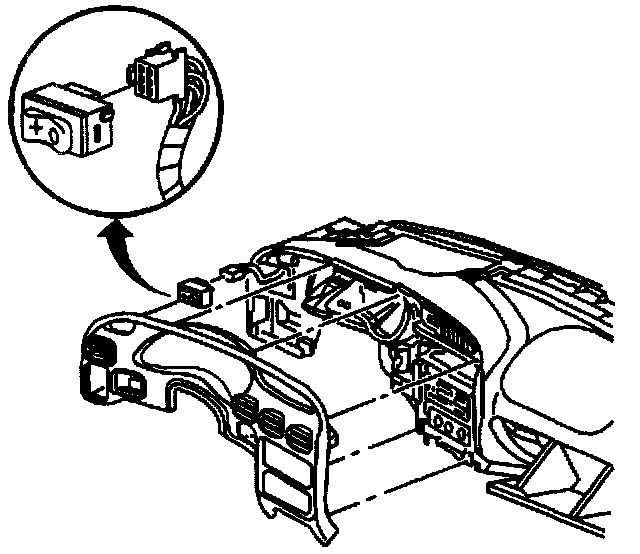

1. Instrument panel cluster trim plate.
2. Electrical connector from fog lamp switch.
3. Using small flat-bladed tool release retainers from fog lamp switch on instrument panel cluster trim plate.
4. Fog lamp switch from instrument panel cluster trim plate.

Install or Connect
1. Fog lamp switch to instrument panel cluster trim plate.
2. Align fog tamp switch to retainers on instrument panel cluster trim plate and snap into place to secure.
3. Electrical connector to fog lamp switch.
4. Instrument panel cluster trim plate.
