License Plate Lamp: Service and Repair

Description:

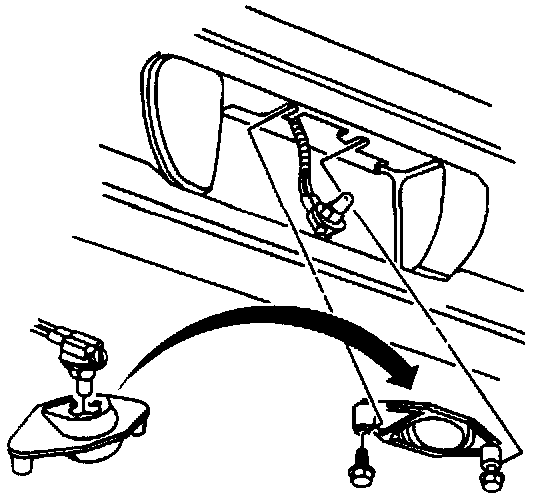

Remove or Disconnect
1. License lamp from rear bumper fascia screws.
2. Lamp socket from license lamp.
3. Bulb from socket.

Install or Connect

NOTICE: Refer to Service Precautions.

1. Bulb to socket.
2. Lamp socket to license lamp.
3. License lamp to rear bumper fascia.
4. Screws to license lamp.

Tighten
^ Bolts/screws to 2 N.m (18 lb.in.).
