4T65-E Automatic Transaxle
>>
Transaxle Range Switch
Transaxle Range Switch
�u�;:

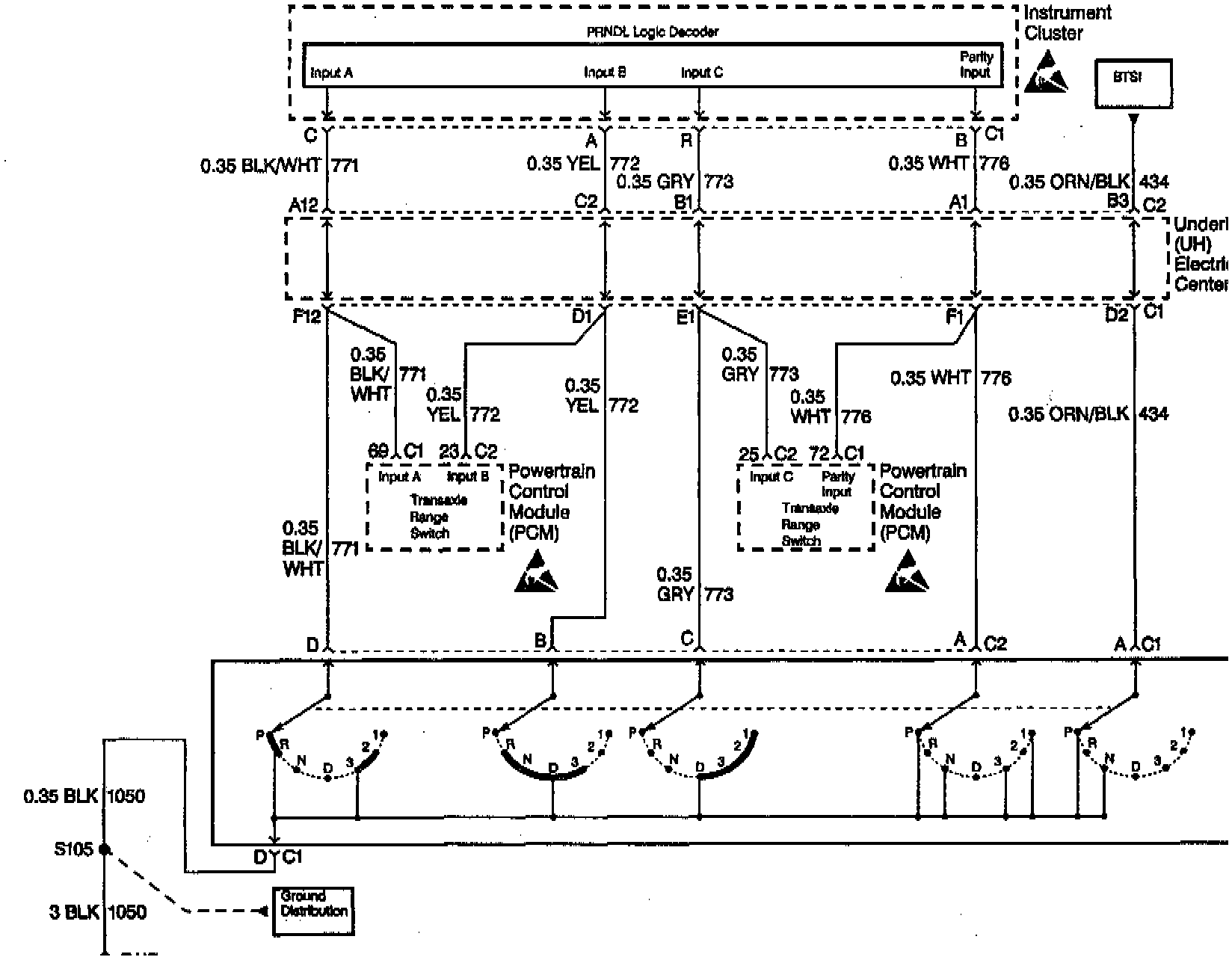

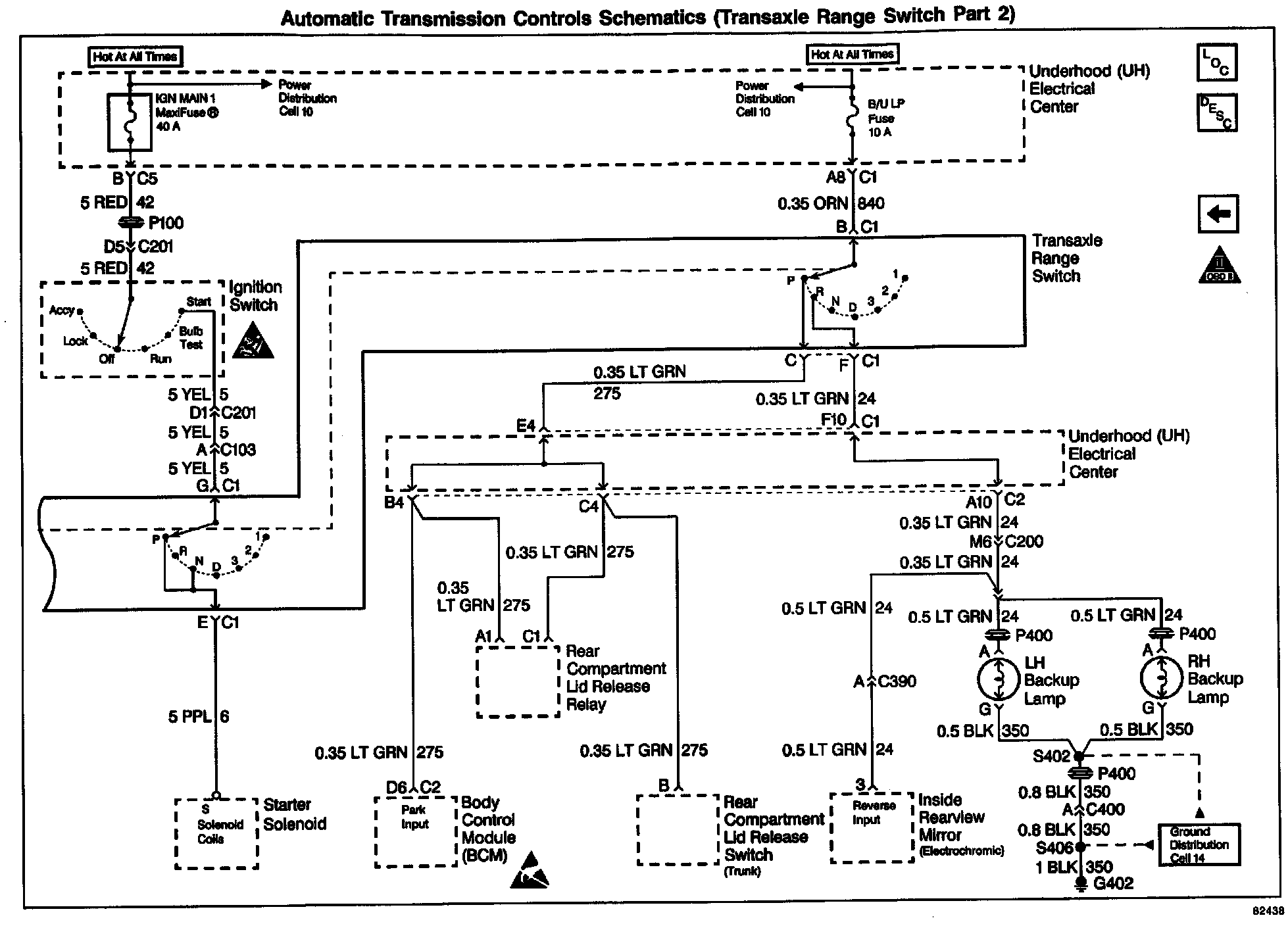

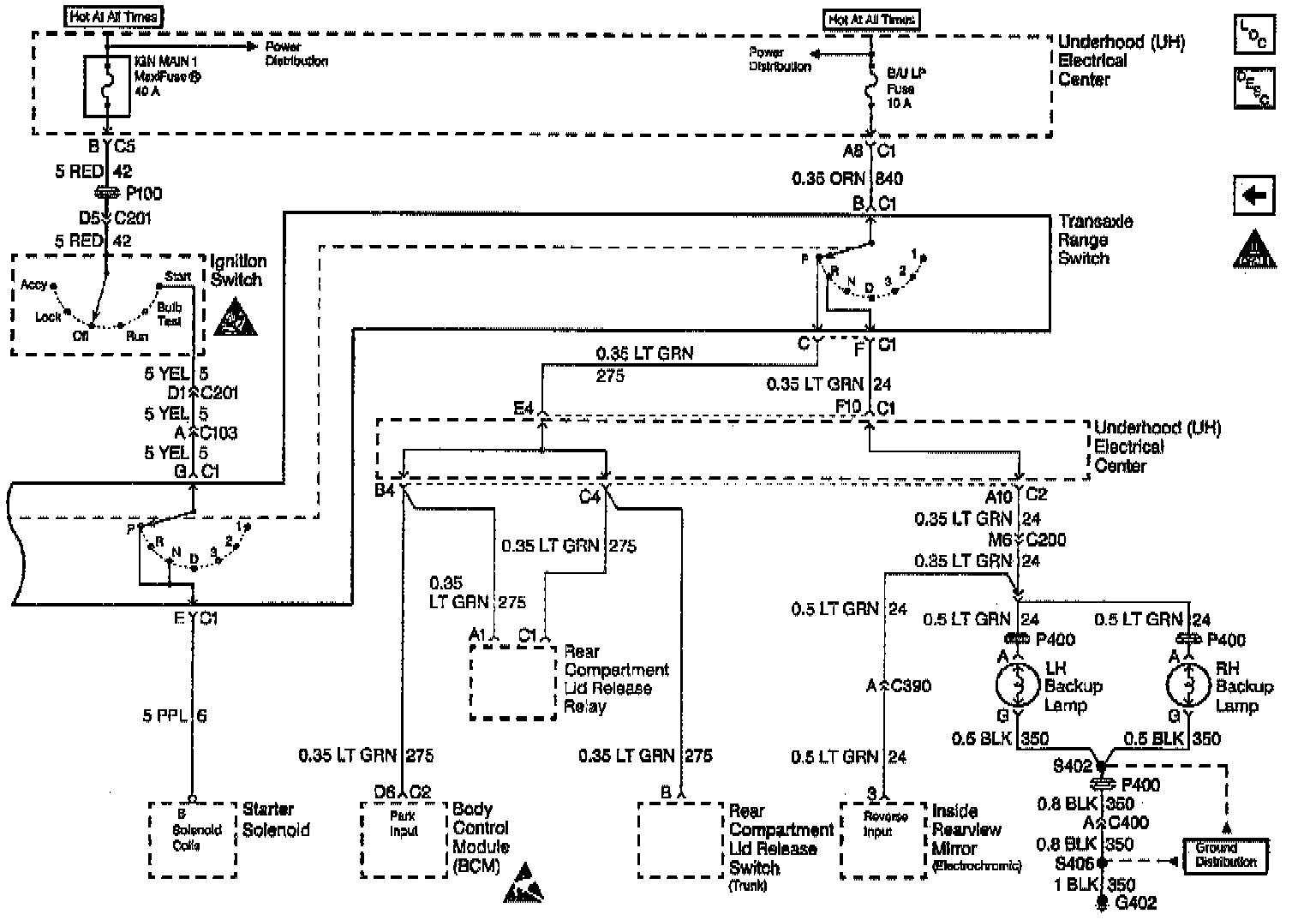

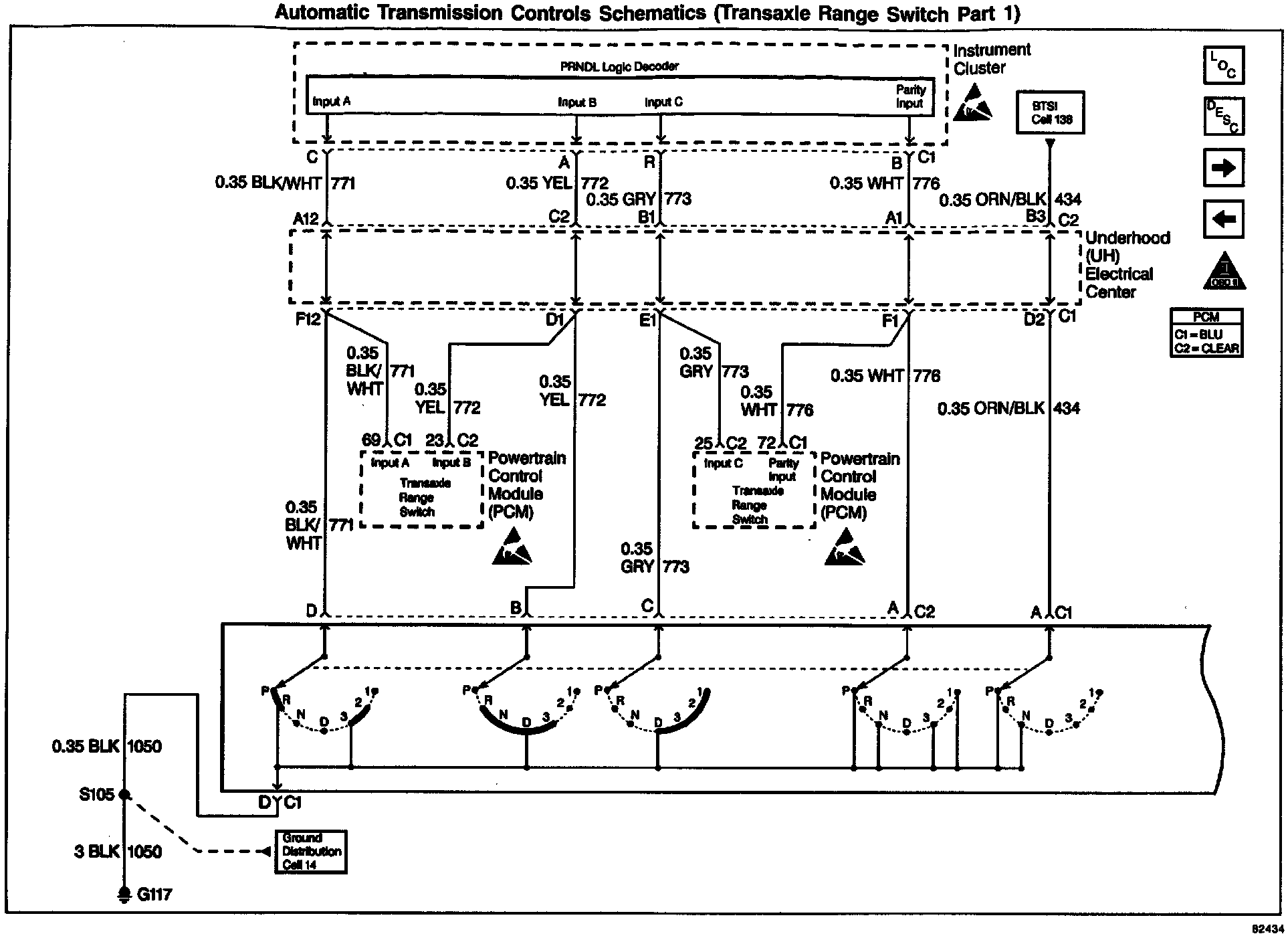

Wiring Diagram:
Wiring Diagram:
