Security Lamp/Indicator: Service and Repair

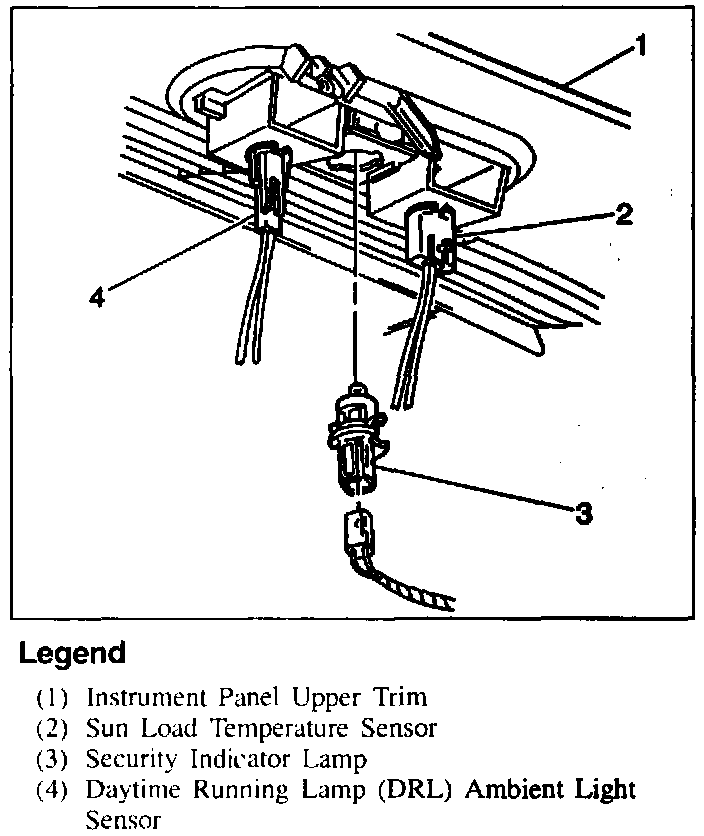

Security Indicator Lamp:

REMOVE OR DISCONNECT
1. Instrument panel upper trim.
2. Security indicator lamp from the instrument panel upper trim by rotating the lamp counterclockwise approximately 1/4 turn and pulling the lamp out.
3. Security indicator lamp electrical connector from the security indicator lamp.

INSTALL OR CONNECT
1. Security indicator lamp electrical connector to the security indicator lamp.
2. Security indicator lamp to the instrument panel upper trim by inserting the lamp and rotating it clockwise approximately 1/4 turn.
3. Instrument panel upper trim.
