Replacement

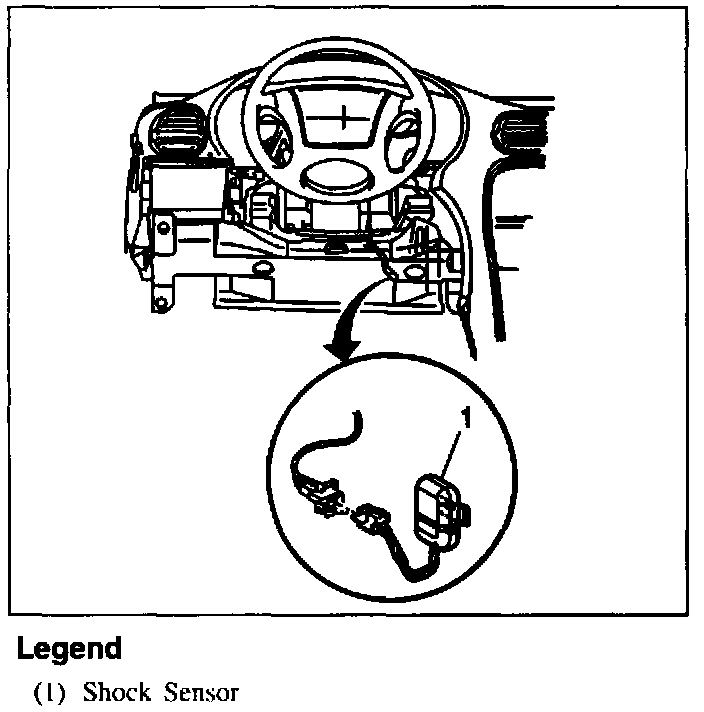

Shock Sensor:

CAUTION: Refer to Service Precautions.

REMOVE OR DISCONNECT
1. Left instrument panel sound insulator.
2. Shock sensor electrical connector.
3. Shock sensor from bolster bracket.

Important
^ Insure that the shock sensor mounting surface is clean.

INSTALL OR CONNECT
1. Shock sensor to bolster bracket.
2. Shock sensor electrical connector.
3. Left instrument panel sound insulator.

Important
^ Check and verify proper shock sensor operation.
