Operation CHARM
: Car repair manuals for everyone.
Home
>>
Pontiac
>>
1997
>>
Grand Prix V6-3.8L VIN K
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Heating and Air Conditioning
>>
System Diagram
>>
Manual
>>
C2
C2

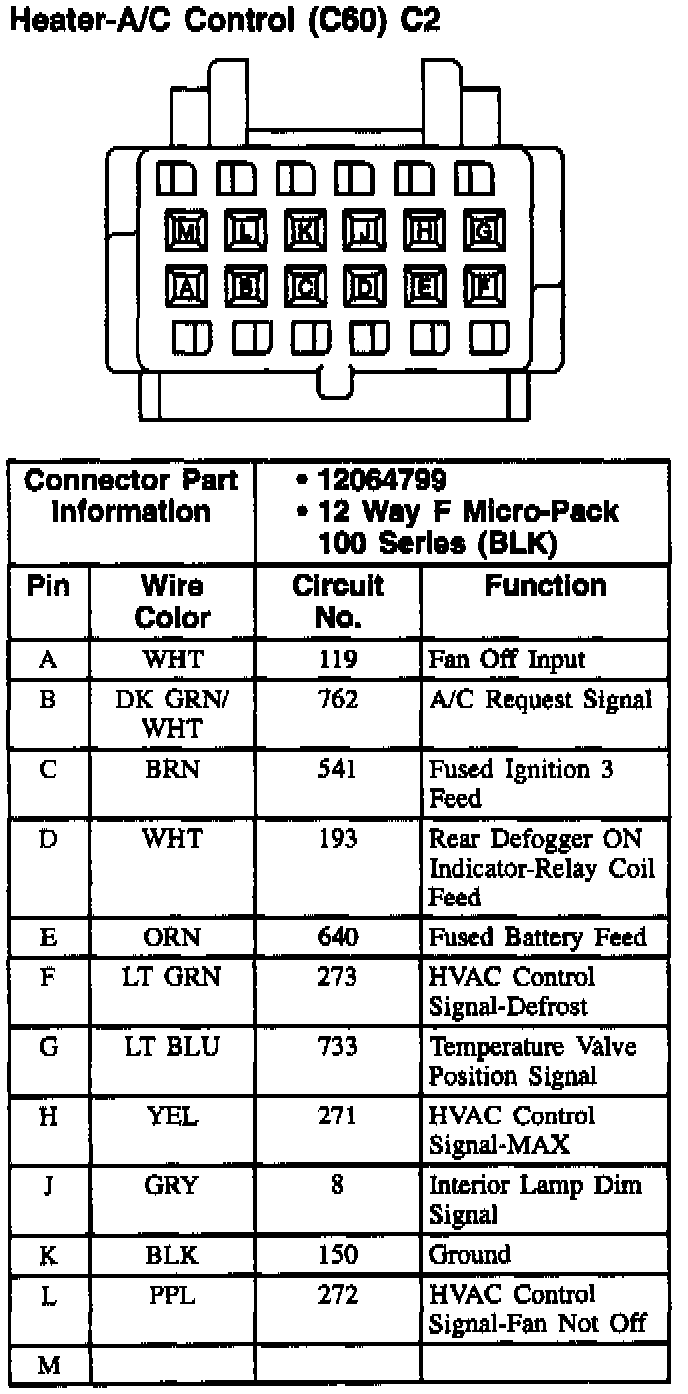

Heater-A/C Control (C60): C2:
