Home >> Pontiac >> 1997 >> Grand Prix V6-3100 3.1L VIN M SFI >> Repair and Diagnosis >> Diagrams >> Connector Views >> Engine Control Module >> C2 (Clear) >> Pin Information >> Pins 21-50

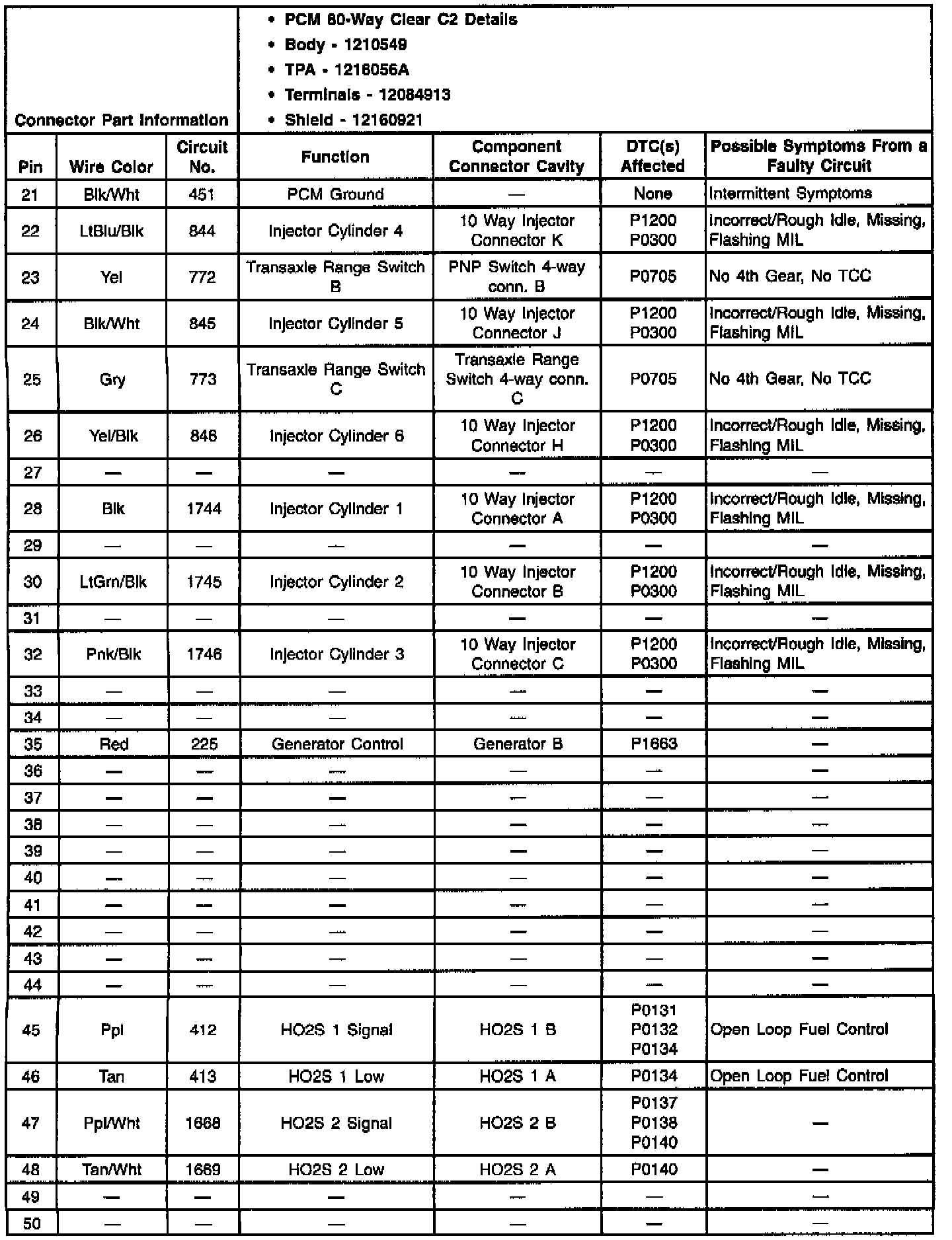

Pins 21-50

Diagnostic Chart:
