Muffler: Service and Repair

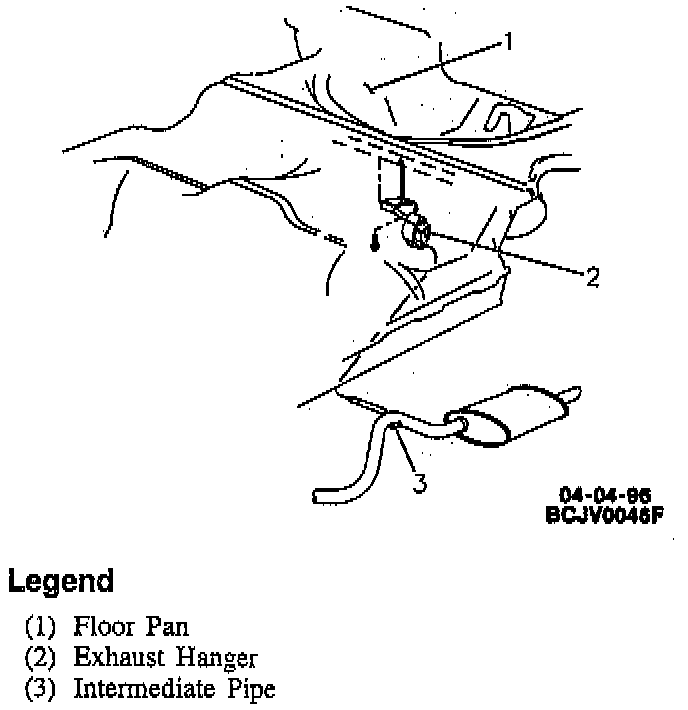

REMOVAL PROCEDURE1. Raise and support vehicle.
2. Cut intermediate pipe at muffler near weld.
3. Muffler from hangers.

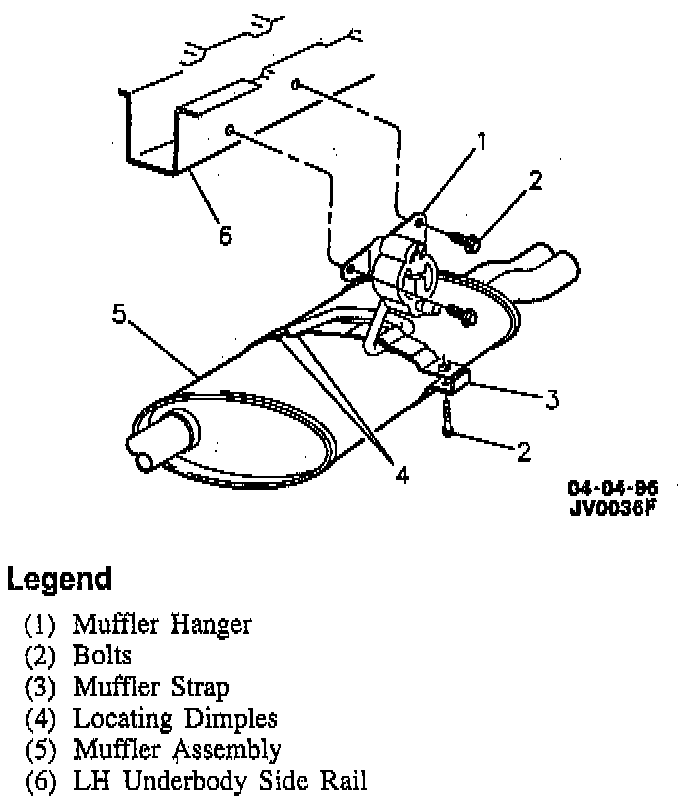

INSTALLATION PROCEDURE
1. Muffler to hangers.
2. Weld muffler to intermediate pipe.
3. Lower vehicle.
1. Raise and support vehicle.
2. Cut intermediate pipe at muffler near weld.
3. Muffler from hangers.
INSTALLATION PROCEDURE
1. Muffler to hangers.
2. Weld muffler to intermediate pipe.
3. Lower vehicle.
