Home >> Pontiac >> 1998 >> Bonneville V6-3.8L VIN K >> Repair and Diagnosis >> Diagrams >> Connector Views >> Control Assembly, HVAC >> Heater & A/C Control Assembly >> With C68

With C68

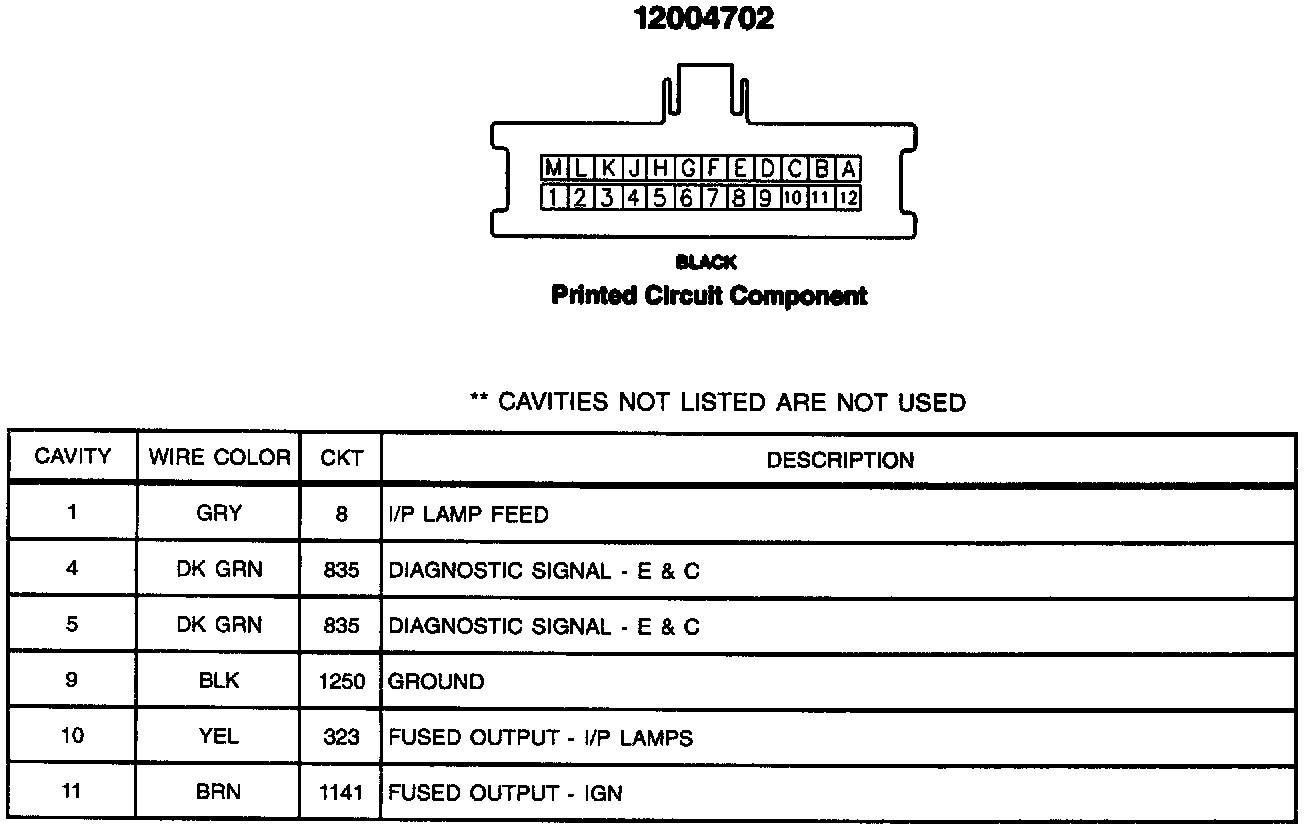

Heater & A/C Control Assembly: With C68:
