Upper Intake Manifold Replacement

REMOVAL PROCEDURE

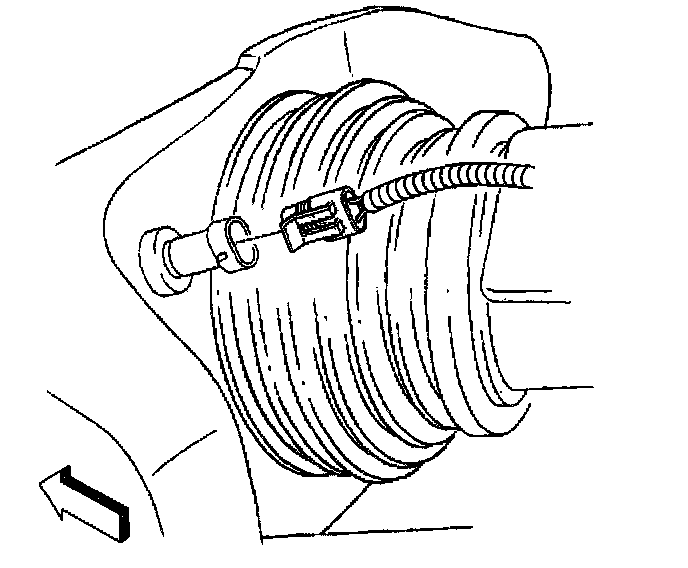

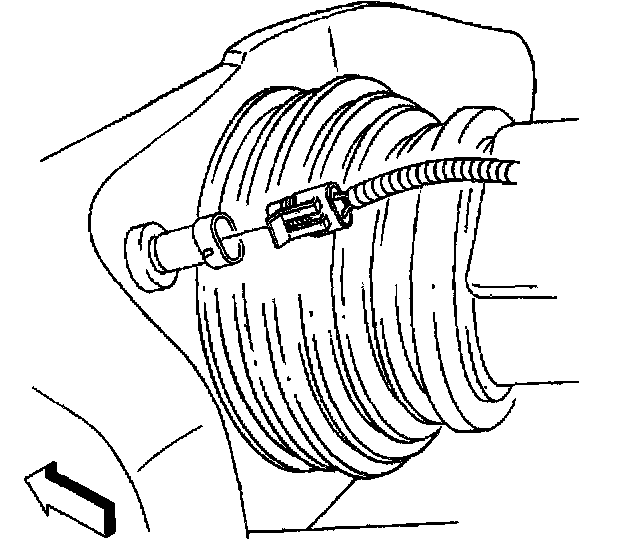

1. Disconnect the Intake Air Temperature (IAT) sensor electrical connector.





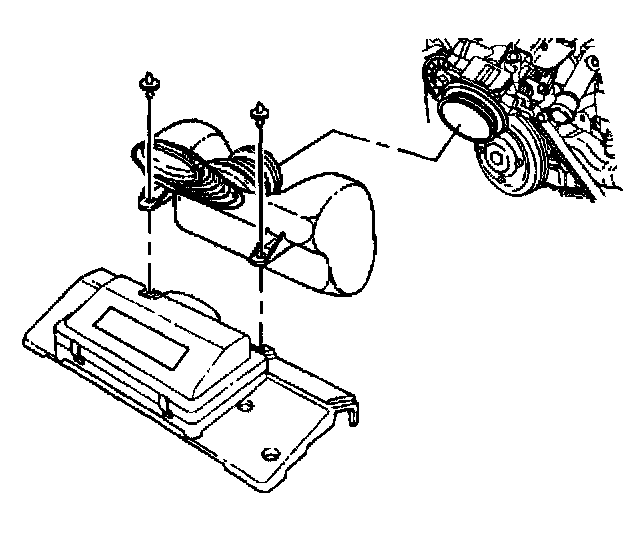

2. Remove the air intake duct.

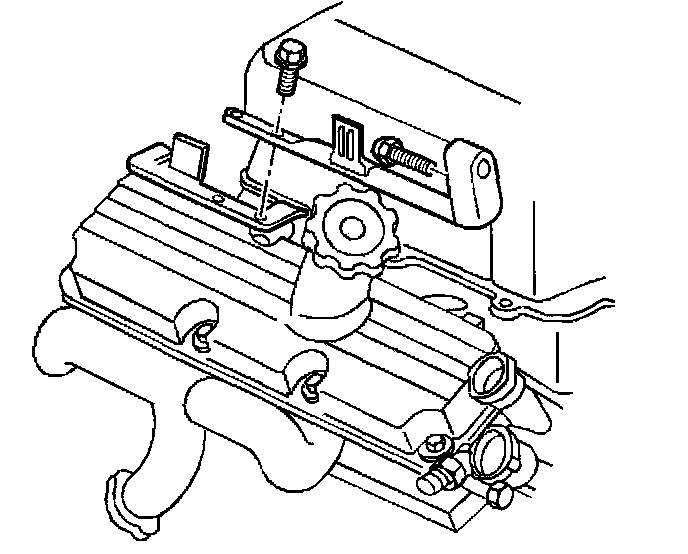

3. Remove the drive belt tensioner.

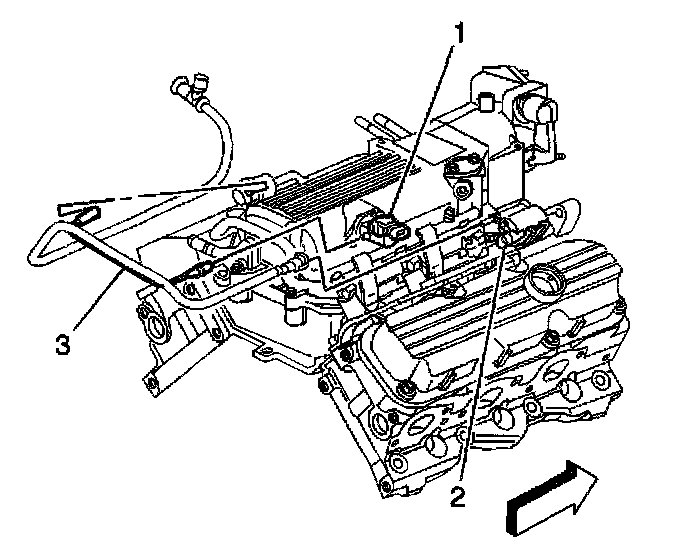

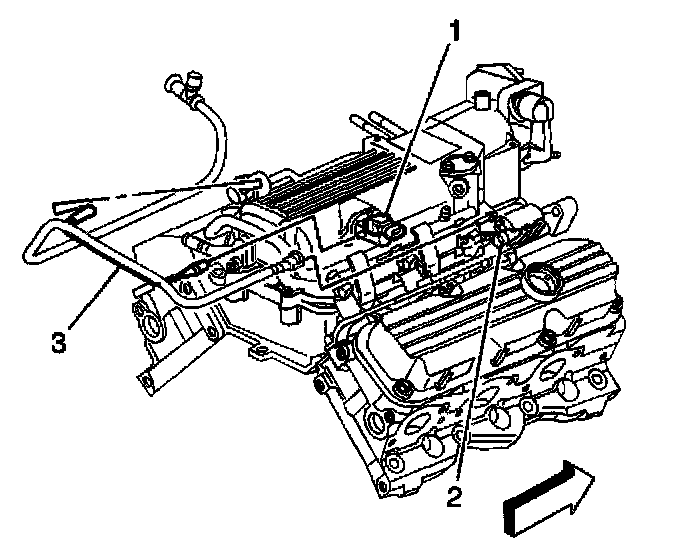

4. Disconnect the fuel pressure regulator vacuum and EVAP emission canister purge harness (3) from the following:
^ Manifold vacuum source (1)
^ Purge solenoid valve (2)
^ Fuel pressure regulator valve
5. Disconnect the manifold vacuum source electrical connector.





6. Remove the manifold vacuum source screws.
7. Remove the manifold vacuum source from the upper intake manifold.
8. Disconnect the canister purge solenoid valve electrical connector and hose.
9. Remove the evaporative emissions canister purge solenoid valve.

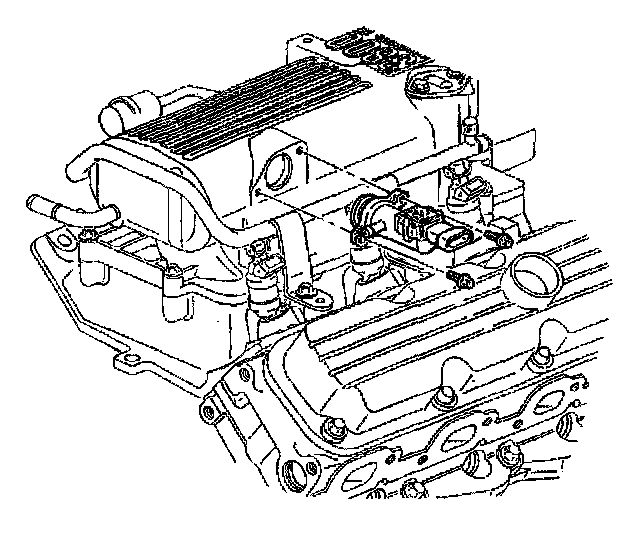

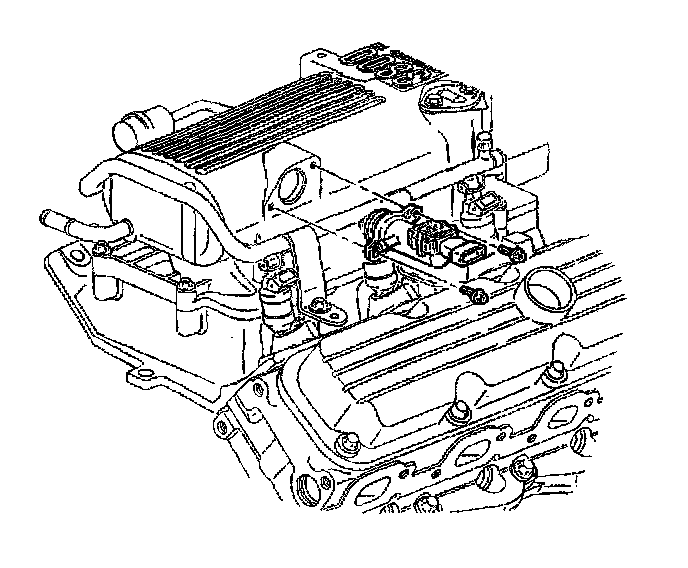

10. Remove the Idle Air Control (IAC) valve from the upper intake manifold.
11. Relieve the fuel pressure.





12. Disconnect the fuel feed pipe (1) from the fuel rail.
13. Disconnect the fuel return pipe (2) from the fuel rail.
14. Disconnect the EVAP pipe (6) at the engine.

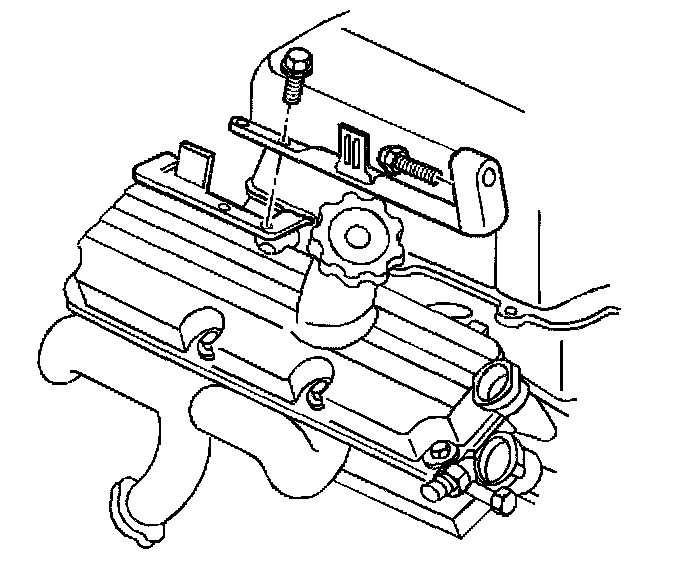

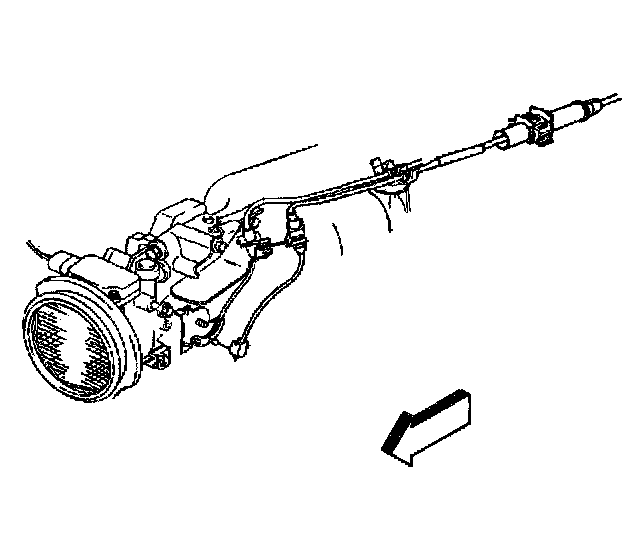

15. Remove the cruise control and accelerator control cables from the throttle body and bracket.

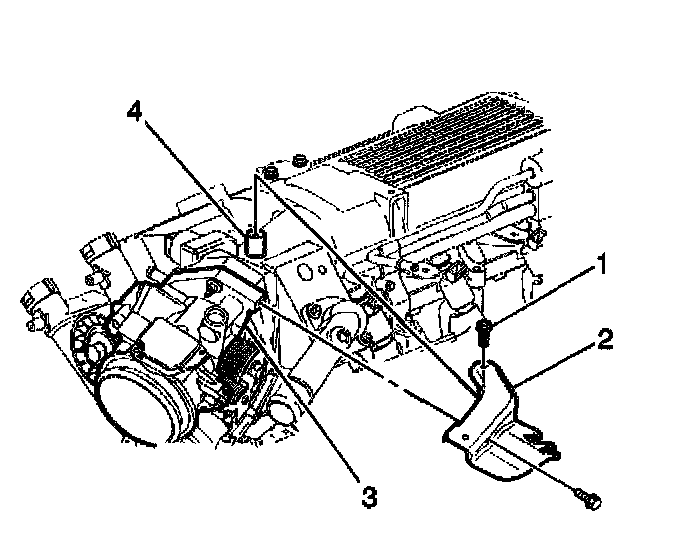

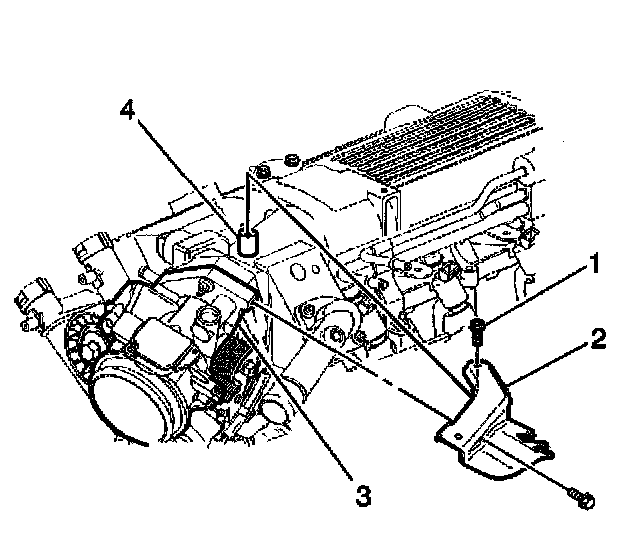

16. Remove the accelerator control cable bracket bolts (1) and bracket (2).
17. Remove the ignition control module.

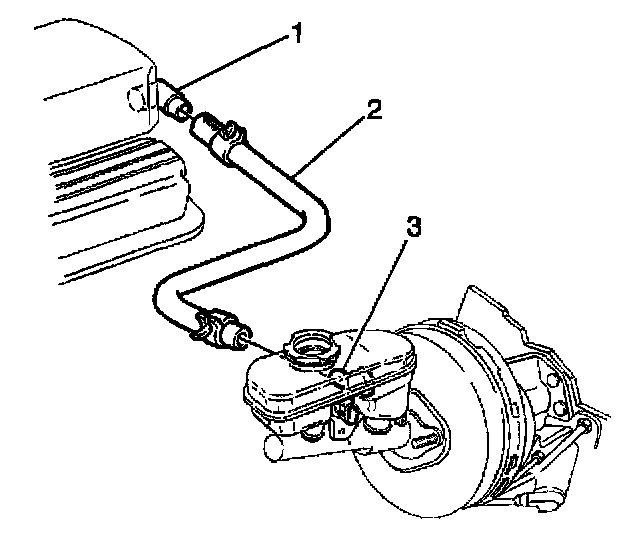

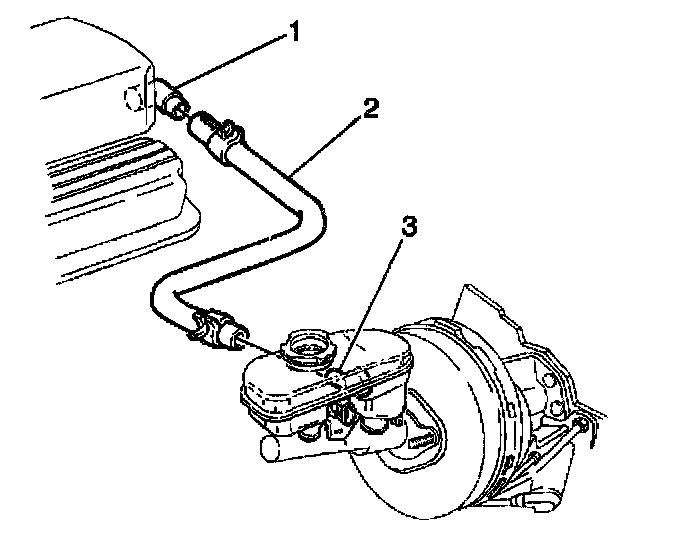

18. Remove the brake booster vacuum hose (2) from the intake manifold fitting (1).





19. Remove the generator brace bolts.
20. Remove the generator brace from the lower intake manifold.





21. Disconnect the Idle Air Control (IAC) valve electrical connector.

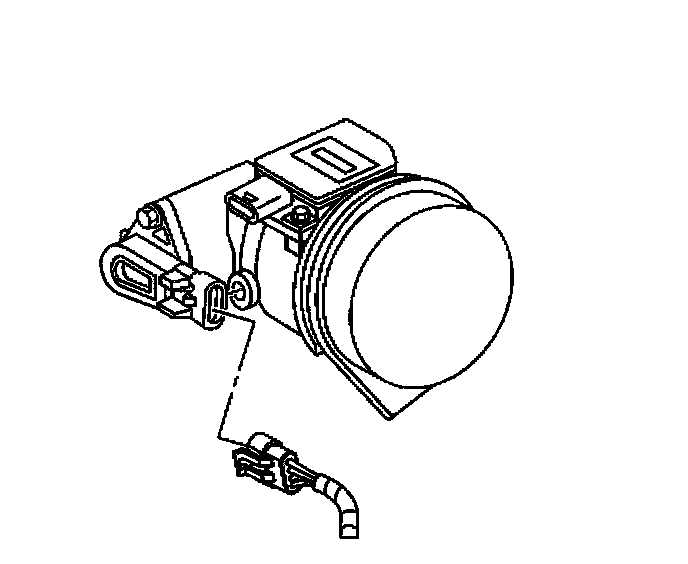

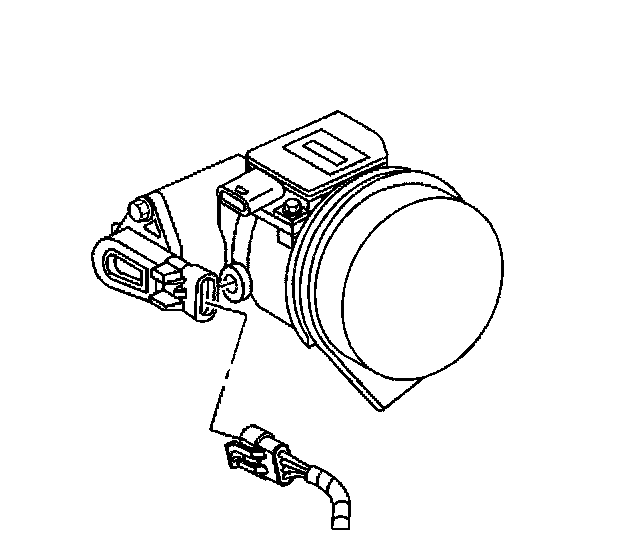

22. Disconnect The Throttle Position (TP) sensor electrical connector.

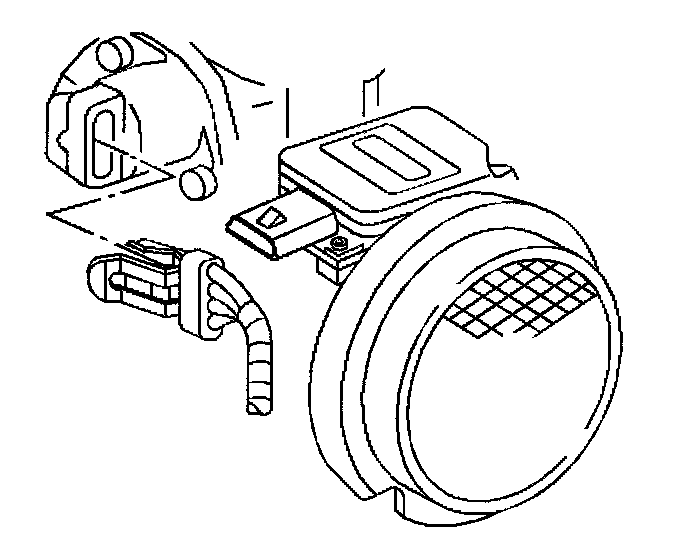

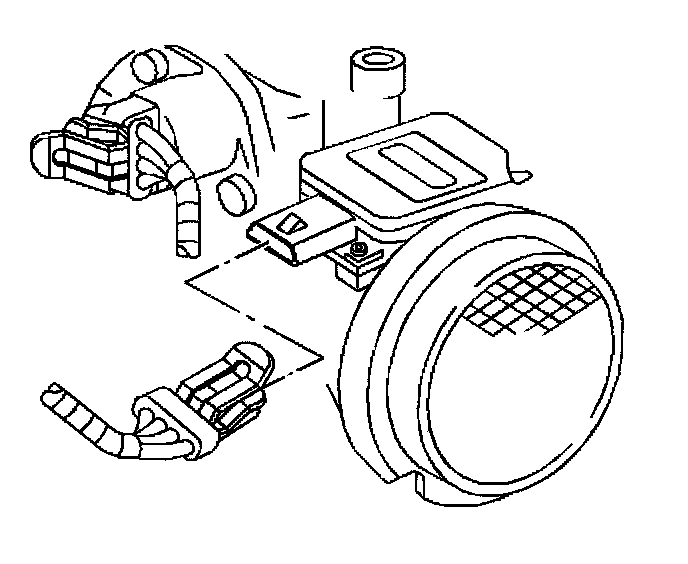

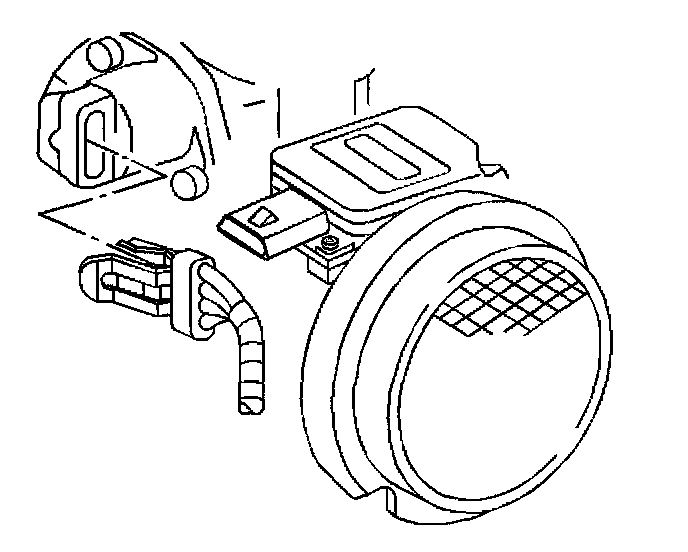

23. Disconnect the Mass Airflow (MAF) sensor electrical connector.

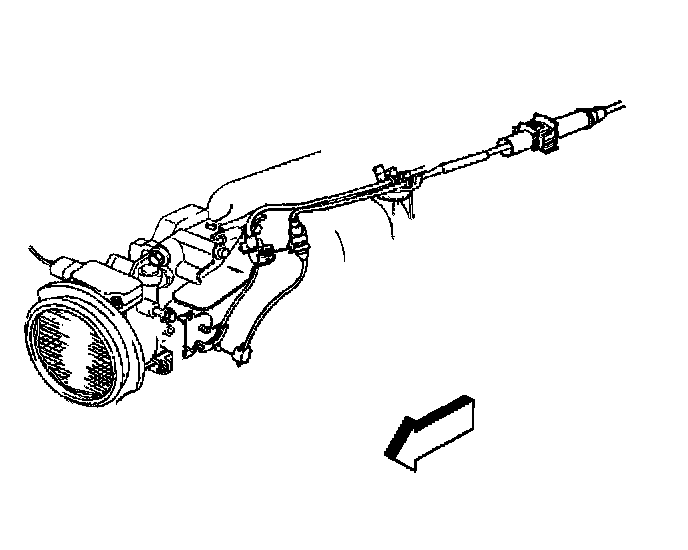

24. Remove the wiring harness from the rosebud clips at the fuel rail.

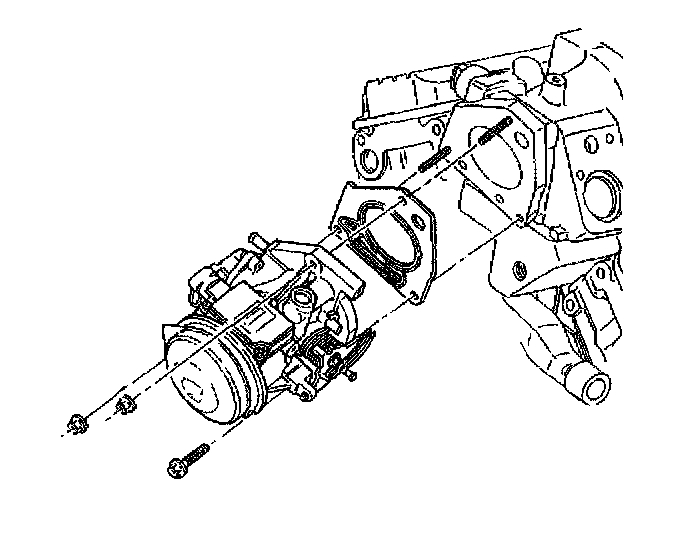

25. Remove the throttle body from the upper intake manifold.
26. Remove the thermostat and thermostat housing.
27. Disconnect the fuel injector electrical connectors.

IMPORTANT: Clean the dirt out of the injector bores with compressed air.

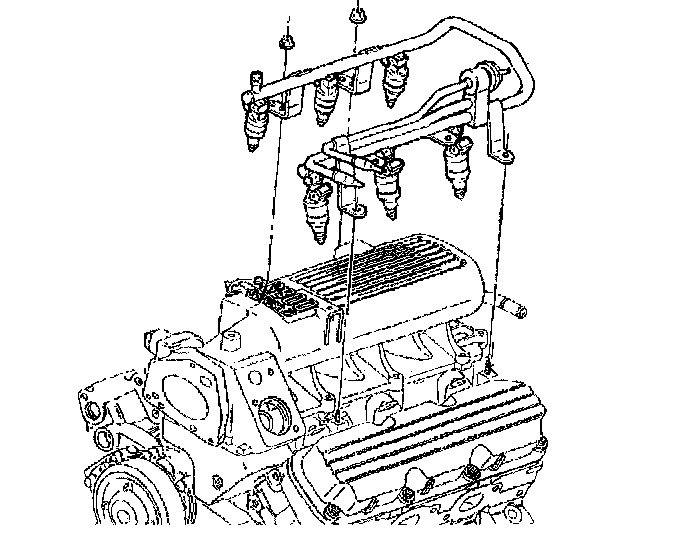

28. Remove the fuel rail nuts.
29. Remove the fuel rail.

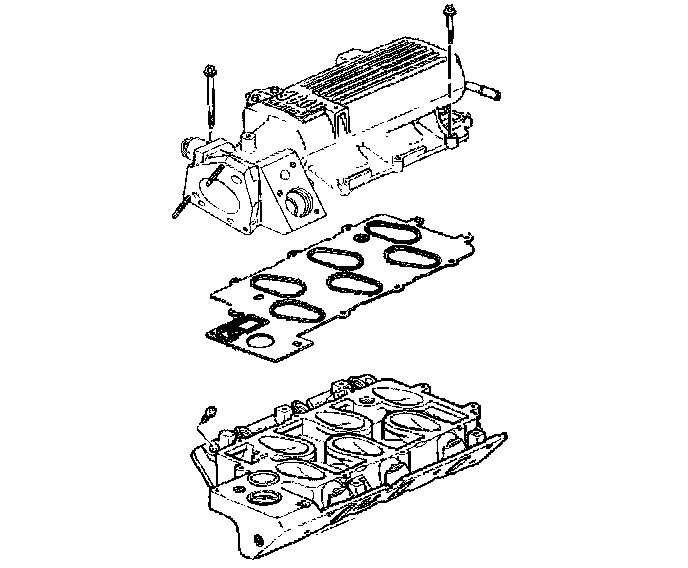

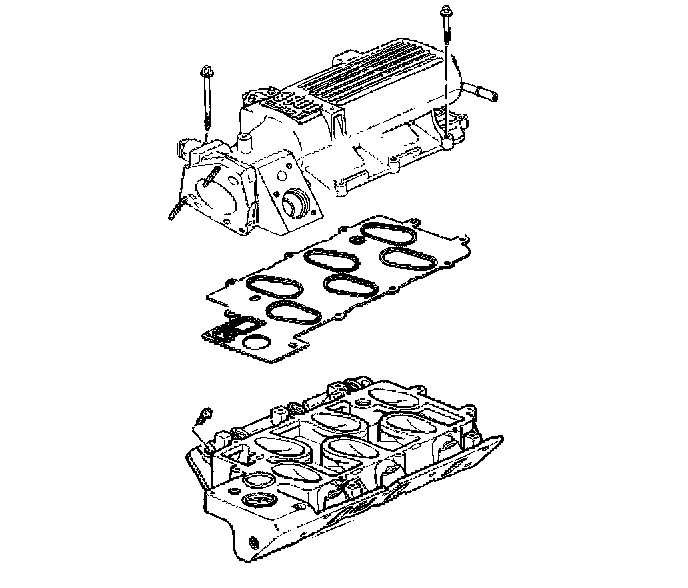

30. Remove the upper intake manifold bolts.
31. Remove the upper intake manifold.
32. Remove the upper intake manifold gasket.

INSTALLATION PROCEDURE





1. Install the upper intake manifold gasket.
2. Install the upper intake manifold.

NOTICE: Refer to Fastener Notice in Service Precautions.





3. Install the upper intake manifold bolts.

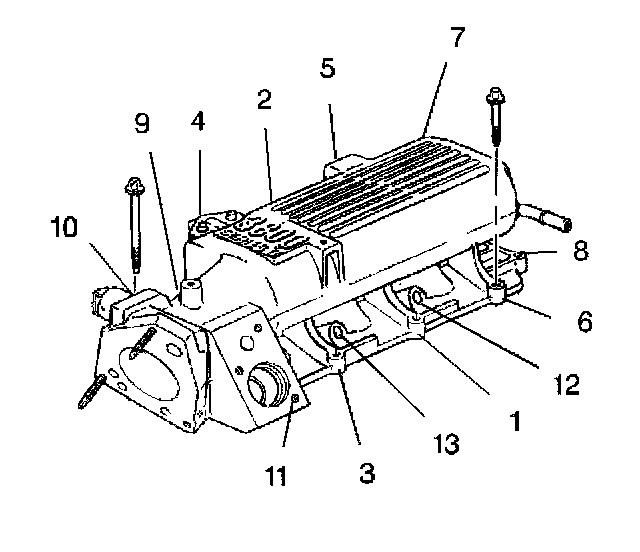

3.1. Tighten in sequence the vertical intake manifold bolts (1-10) to 15 Nm (11 ft. lbs.).
3.2. Tighten the two water outlet bolts (11) to 27 Nm (20 ft. lbs.).
3.3. Tighten the side bolts (12, 13) to 30 Nm (22 ft. lbs.).





4. Perform the following to install the fuel rail to the upper intake manifold:
4.1. Using clean engine oil, lubricate the fuel injector O-rings.
4.2. Install the injectors into the bores of the manifold.
4.3. Carefully press the fuel rail down with the palms of both hands until the injectors are fully seated.
5. Install the fuel rail nuts.
^ Tighten the fuel rail nuts to 8.5 Nm (75 inch lbs.).
6. Connect the fuel injector electrical connectors.
7. Install the thermostat and thermostat housing.

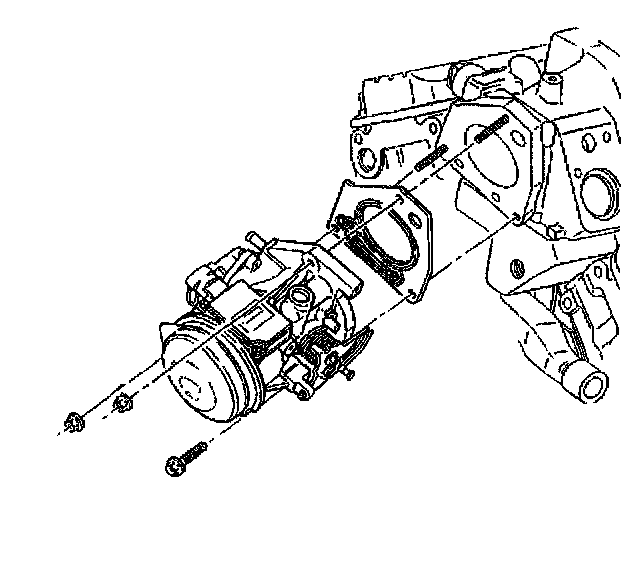

8. Install the throttle body to the upper intake manifold studs.
9. Install the throttle body bolt and nuts.
^ Tighten the throttle body bolt to 10 Nm (89 inch lbs.).
^ Tighten the throttle body nuts to 10 Nm (89 inch lbs.).
10. Install the wiring harness to the rosebud clips on the fuel rail.





11. Connect the Mass Airflow (MAF) sensor electrical connector.





12. Connect the Throttle Position (TP) sensor electrical connector.





13. Connect the Idle Air Control (IAC) valve electrical connector.





14. Install the generator brace to the upper intake manifold.
15. Install the generator brace bolts.
^ Tighten the generator brace bolts to 25 Nm (18 ft. lbs.).





16. Install the brake booster vacuum hose (2) to the intake manifold fitting (1).
17. Install the ignition control module.





18. Install the accelerator control cable bracket (2) and bracket bolts (1).
^ Tighten the accelerator control cable bracket bolts (1) to 16 Nm (12 ft. lbs.).





19. Install the accelerator control and cruise control cables to the throttle body and bracket.

20. Connect the EVAP pipe (6) at the engine.
21. Connect the fuel return pipe (2) to the fuel rail.
22. Connect the fuel feed pipe (1) to the fuel rail.
23. Install the Idle Air Control (IAC) valve to the upper intake manifold.
24. Install the evaporative emissions canister purge solenoid valve.
25. Connect the canister purge solenoid valve electrical connector and hose.





26. Install the manifold vacuum source to the upper intake manifold.
27. Install the manifold vacuum source screws.
^ Tighten the manifold vacuum source screws to 10 Nm (89 inch lbs.).
28. Connect the manifold vacuum source electrical connector.





29. Connect the fuel pressure regulator vacuum and EVAP emission canister purge harness (3) to the following:
^ Manifold vacuum source (1)
^ Purge solenoid valve (2)
^ Fuel pressure regulator valve
30. Install the drive belt tensioner.





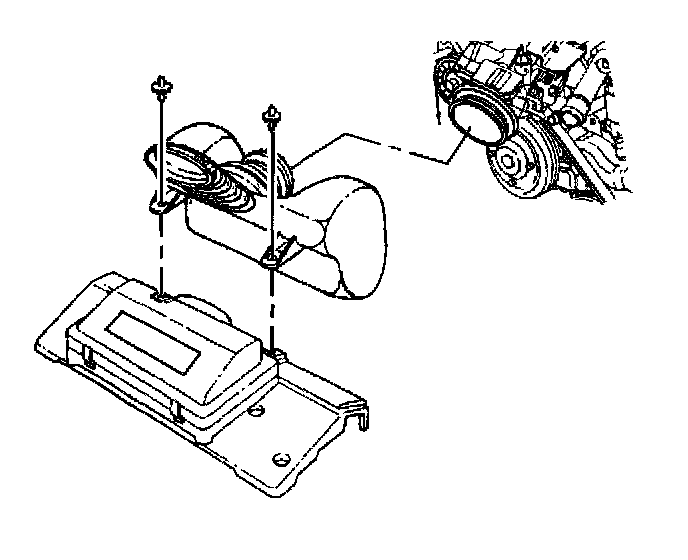

31. Install the air intake duct.





32. Connect the Intake Air Temperature (IAT) sensor electrical connector.
